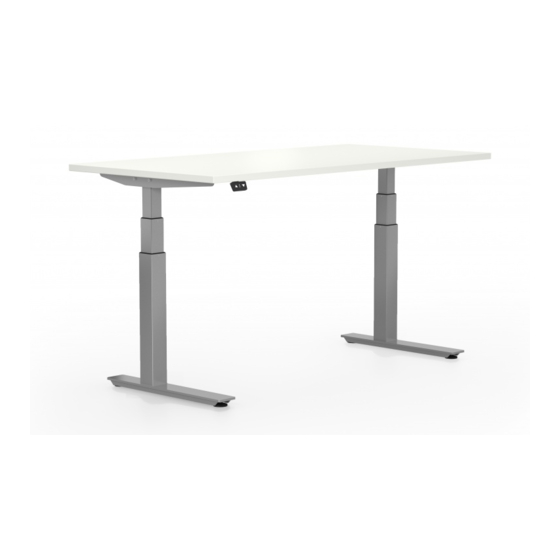

- Page 1 E�WORK Solano VT2 LVTERBA, LVTERJJ Electric Height-Adjustable Table Base Installation Instructions 01.2019 Rev. #1...

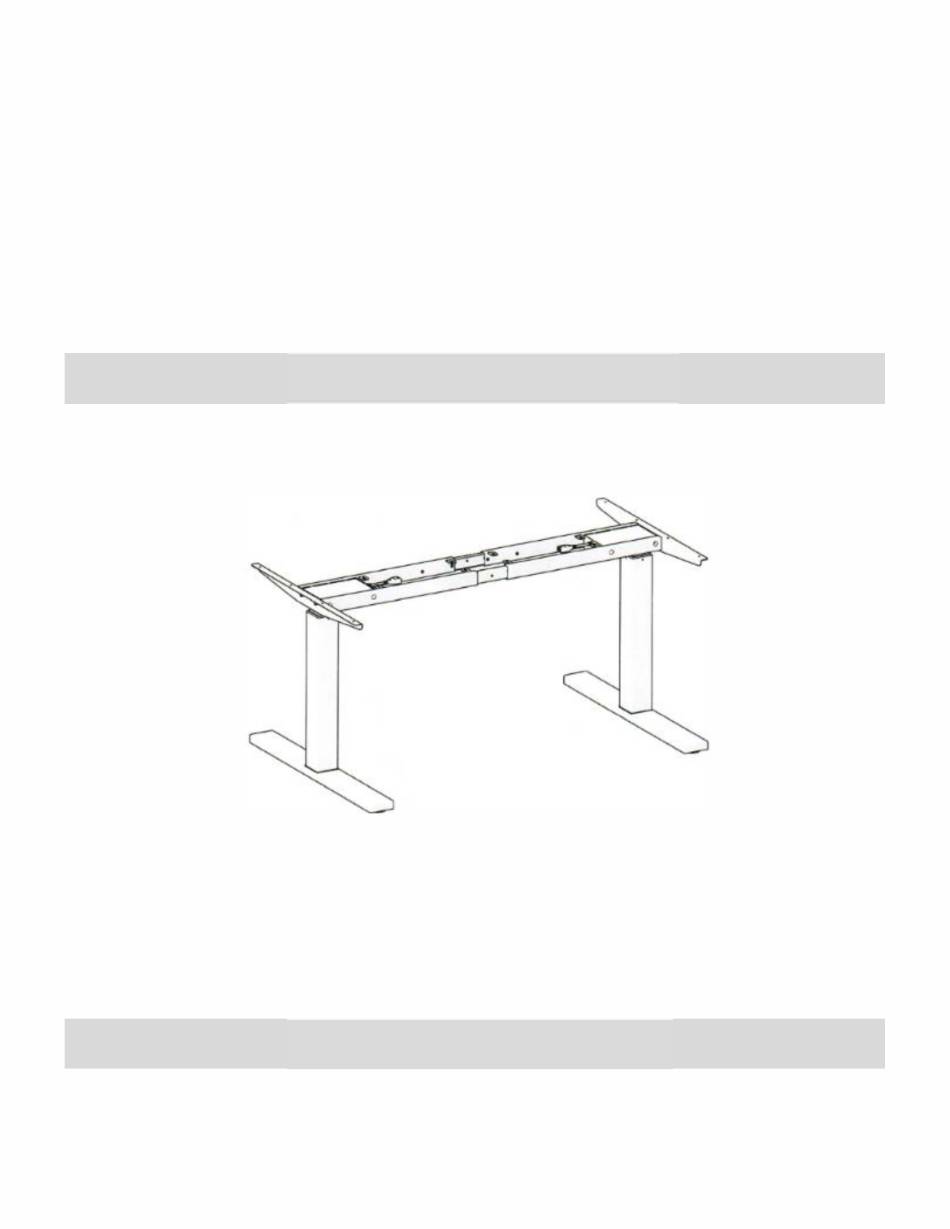

- Page 2 INSTALLATION GUIDE 1) Parts and Fasteners Included Leg (2 Pcs) Top Frame (2 Pcs) End Pipe (1 Set) Feet (2 Pcs) Plate (2 Pcs) Smart Control Unit (1 Pc) Motor Cables (2 Pcs) Power Cable (1 Pc) M6x10 (20 Pcs) / ST 5.5x16 (18 Pcs) E�WORK...
- Page 3 INSTALLATION GUIDE 2) Assembly: Step1 Adjust the Top Frame to the suitable length. Step 2 Assemble the Top Frame and Leg as illustrated left. Torque Guide. Please refer to the M6x10 Step 3 Assemble the End Pipe and Leg as illustrated left. Torque Guide.
- Page 4 INSTALLATION GUIDE Step4 Assemble the Feet as illustrated left. The smooth side Torque of the plate faces the foot. Please refer to the M6x10 Guide. (I)I Step 5 Mount the Frame to the Table top and fix the Top ST5.5x16 Torque Frame as illustrated left.
- Page 5 INSTALLATION GUIDE Step 7 Connect the Motor and Power Cables to the Control Unit as illustrated left. Step 8 Connect the Motor Cable to the Leg as illustrated left. Step 9 Please refer to zero setting instructions on next page. Torque Guide: •...
- Page 6 • ▼ • ▼ • ▼ E�WORK 12900 Christopher Drive Lowell, Ml 49331 800.815.7251 www.enwork.com Specifications subject to change without notice.
