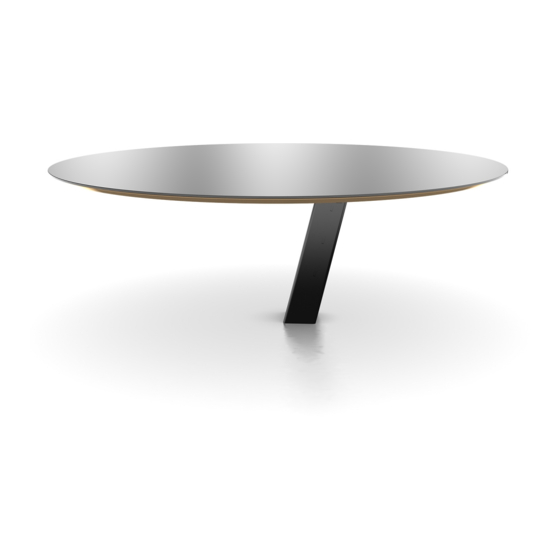

- Page 1 Equilibrium Round Conference/Occasional Table Installation Instruction EI0005 – Revision A – 8/15/18...
- Page 2 Enwork is not responsible for any structural failures or personal injuries or property damage due to improper installation or improper use of product. End user agrees to defend, indemnify and hold harmless Enwork from any claims of any nature or type arising out of unauthorized modification or movement of the table base or any other improper use of the product.
-
Page 3: Tools And Supplies Required
INSTALLATION GUIDE 1) Tools and Supplies Required ½” Diameter 9/16” Socket Drill / Hammer Drill Tape Measure Masonry Drill Bit 3/4” Socket Square Drive Marker Socket Wrench Adjustable Wrench Vacuum Utility Knife Roll of Tape Hammer or Mallet Level... - Page 4 INSTALLATION GUIDE 2) Parts and Fasteners Included Aluminum Shim (Pack) ½” x 3 ¾” Concrete Stud 3/8” – 16 x 1 1/2” Flange Hex Bolt 3/8” x 1” Flat Washer Screw 1 (Black)
- Page 5 INSTALLATION GUIDE 2) Parts and Fasteners Included BASE COLUMN, 60”-84” BASE COLUMN, 36”-54” TOP WELDMENT, 60”-84” EQM-2225-xx EQM-2246-xx EQM-2226-1 TOP WELDMENT, 36”-54” REMOVABLE TOP COVER REMOVABLE BASE COVER EQM-2255-1 EQM-1557-x EQM-1558-x...
- Page 6 INSTALLATION GUIDE 3) Assembly: Installing the Base Column Front...
- Page 7 INSTALLATION GUIDE 3) Assembly: 3.1.1) Locate final location of base 3.1.2) Set base in desired location and using marker, trace hole location and mark perimeter for carpet removal if needed Fig. 3.1 3.2.1) Set base over marked hole locations. Note: Check that base is oriented as desired 3.2.2) Using a utility knife, cut away any carpet around the base location 3.2.3) With carpet removed, double-check hole...
- Page 8 INSTALLATION GUIDE 3) Assembly: 3.4.1) Drill marked hole locations to 2 ¾” deep. 3.4.2) Vacuum out the drilled holes to remove dust that may prevent anchor from seating properly. Fig. 3.4 3.5.1) Place one washer and one hex nut onto provided concrete anchor so that the hex nut is flush with the top of the anchor.
- Page 9 INSTALLATION GUIDE 3) Assembly: Fig. 4...
- Page 10 INSTALLATION GUIDE Installing Top Support continued 3) Assembly: Fig. 4.2 Fig. 4.1 4.1.1) Place top support onto base column 4.2.1) Align holes on base column with slots on top support 4.2.2) Using 3/8”-16 x 1-1/2” flange hex bolts and 3/8” x 1” flat washer, assemble top support to base column Note: Do not fully tighten hardware yet Fig.
- Page 11 INSTALLATION GUIDE 3) Assembly: 5.1.1) Center surface on base. For multi-piece tops attach tight joint fasteners. Orient seam as desired. Note: It may be easier to access all tight joint fasteners while surface it still on the ground. 5.1.2) Secure surface to base using included Screw 1 Fig.
- Page 12 INSTALLATION GUIDE Installing leg covers 3) Assembly: 6.1.1) Fig 6.1 is base with removable covers installed Fig. 6.1 6.2.1) Install the leg cover by attaching it to pre-installed magnets 6.2.2) Fig. 6.2 shows power routing hole down for power infeed access outside of base 6.2.3) If no power routing is needed, flip the column cover so that routing hole is up Fig.
- Page 13 12900 Christopher Drive Lowell, MI 49331 800.815.7251 www.enwork.com Specifications subject to change without notice.
