Summary of Contents for Enwork Expanse

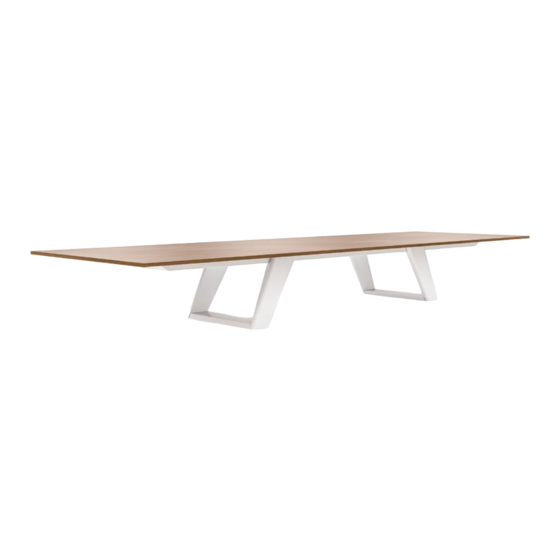

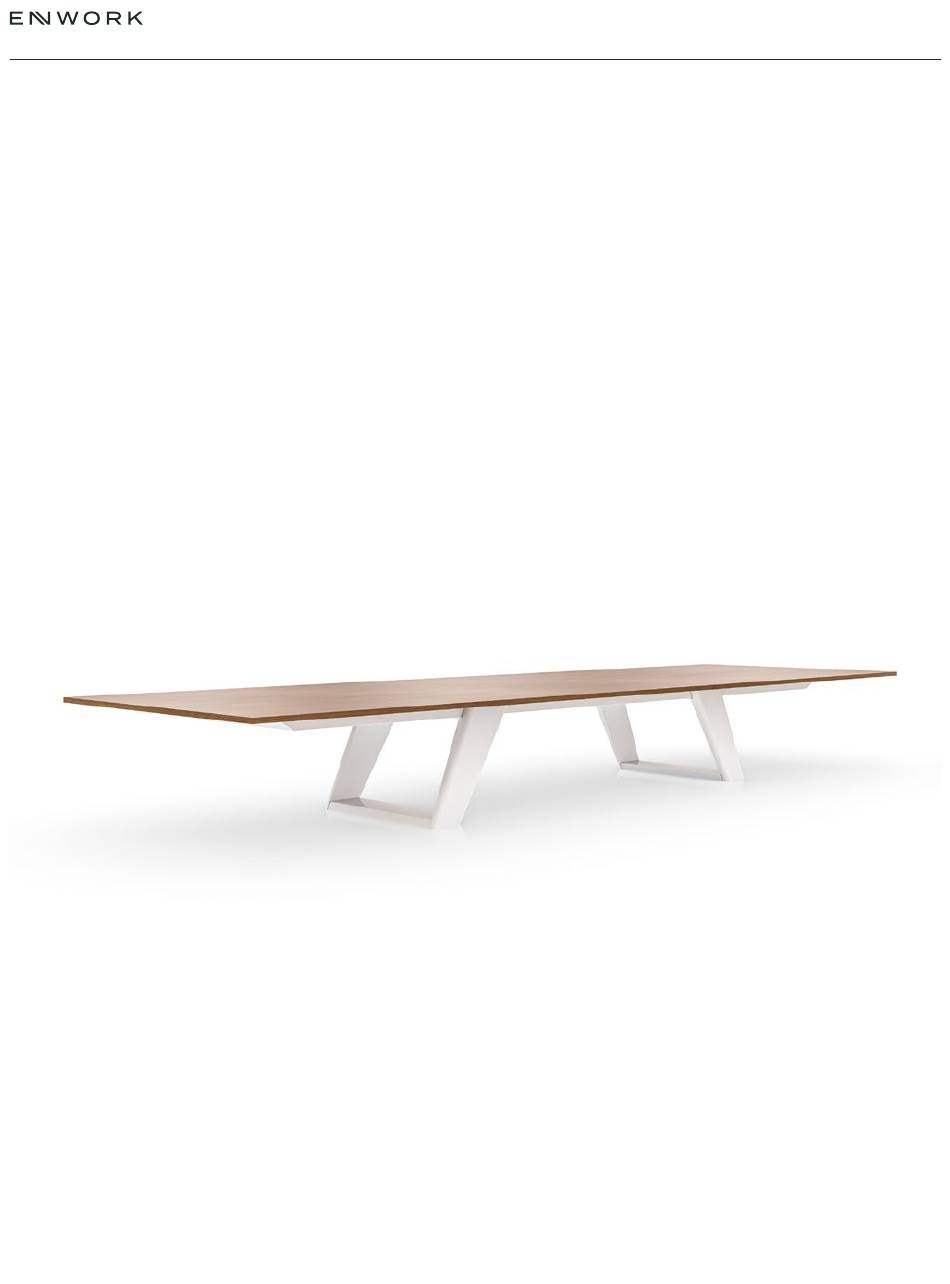

- Page 1 P A R T N U M B E R E A A X X X C O N F E R E N C E TA B L E S TI0075 Expanse Conference Table Installation Guide – Rev 02.23...
- Page 2 1 — R E Q U I R E D T O O L S A N D S U P P L I E S Drill Philips Head Driver Level Ratchet Socket Tape Measure TI0075 - Expanse Table Installation Instructions...
- Page 3 .375-16 x .50" Draw Plate 1 Draw Plate 2 Hex Head Bolt #12 x 1.00" Screw .375 -16 Easy Adjust Glide Kickstand Zipbolt Surface Connector 25-20 Nut Base Plate Right Base Leg Left Base Leg TI0075 - Expanse Table Installation Instructions...
- Page 4 2 — I N C L U D E D P A R T S A N D F A S T E N E R S Extrusions Top Plate Assembly C Channel L Bracket (Left, Mid, & Center) End Cap Base Bottom Cover, Base Bottom Cover, 10-10 x 1" Truss Head SQ/ Inside Outside Phillips (SCREW 1) TI0075 - Expanse Table Installation Instructions...
- Page 5 (8).375-16 x 1.25" bolts. Note: Once the base is full assembled, place the provided Kickstand under the assembly to keep it from falling forward. TI0075 - Expanse Table Installation Instructions...
- Page 6 .50". and finger tighten. Repeat for all Extrusion. facing up and the opening of the C facing outside. Note: Do not tighten the bolts at this time Note: Do not tighten the bolts at this time TI0075 - Expanse Table Installation Instructions...
- Page 7 Note: Depending on table length, Left & Right Extrusions may be assembled at this point. Note: The extrusions must be aligned and square before they are fully tightening. Adjust as necessary while tightening. TI0075 - Expanse Table Installation Instructions...
- Page 8 The C Channel holes should secure the extrusion with the using .375-16 x 2.25" bolts. alight with the top slots on the middle extrusion assembly as shown below. Repeat process for the other end of the table. TI0075 - Expanse Table Installation Instructions...
- Page 9 Insert the this assembly into the inside of the extrusions Brackets along the length of the extrusion. There will be 2 for every Top Connection Do not tighten yet. These may need to be Bracket (EAM-1024). repositioned later in the assembly process. TI0075 - Expanse Table Installation Instructions...
- Page 10 (4) 375-16 x .50" bolts, and (4) .375-16 Square Nuts. Press the end cap in all the way tight against the end of the extrusion. Insure the back side of the cap is flush with the end of the extrusion. Fully tighten TI0075 - Expanse Table Installation Instructions...
- Page 11 Attach the work surface to the table assembly using the Top Connection Bracket and #12 x 1.00 screws. Location of the Top Connection Bracket can be adjusted as needed. Tighten all of the brackets to the extrusion at this time. TI0075 - Expanse Table Installation Instructions...
- Page 12 Place a level spanning both beams and Install the Outside Base Bottom level the table across it’s depth. Covers between the Base legs. TI0075 - Expanse Table Installation Instructions...
- Page 13 1.800.815.7251 enwork.com 12900 Christopher Dr. Lowell, MI 49331 Specifications subject to change without notice. Rev 02.2023...
