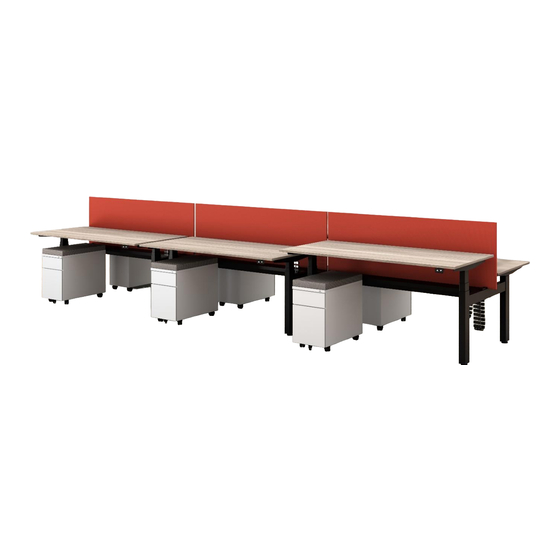

Enwork XTB4 Installation Manual

Height adjustable linked benching
Hide thumbs Also See for XTB4:

Advertisement

Quick Links

Download this manual
1
XTB4 LINKED BENCHING
Height Adjustable Benching
XTB4 Installation Guide
UN0001 Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the XTB4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enwork XTB4

Summary of Contents for Enwork XTB4

  • Page 1 XTB4 LINKED BENCHING Height Adjustable Benching XTB4 Installation Guide UN0001 Rev. A...
  • Page 2 Table of Contents: Parts & Fasteners Included ………………………………………………………………………………3 Tools & Supplies Required ……………………………………………………………………………….6 iii. Rectangular Back-to-Back Benching ……………………………………………………………….7 Optional Additions (Screens/End Panels) ……………………………………………………….12 120 Degree Benching ………………………………………………………………………………………13 Single Sided Benching …………………………………………………………………………………….16 vii. Extended Corner Benching ……………………………………………………………………………..19 viii. Handset Instructions ………………………………………………………………………………………23...
  • Page 3 INSTALLATION GUIDE 1) Parts and Fasteners Included Right Leg Column Left Leg Column *120 Degree - Rear Column *Extended Corner – 3 Leg Column Top Support Bracket Center Rail Support Frame End w/ Control Plate *Extended Corner Frame Power Trough Trough Cover Mid Link Connector End Link...
  • Page 4 INSTALLATION GUIDE 1) Parts and Fasteners Included *120 Degree Mid Link Cover *120 Degree Mid Link (120 In-Feed Leg (120 Degree) Degree) *End Link – Single sided *Mid Link – Single Sided *Mid Link Connector – Single Sided *Foot *End Panel Bracket - Single Sided *End Panel Bracket - Double Sided *Screen Bracket - *Screen Bracket -...
  • Page 5 INSTALLATION GUIDE 1) Parts and Fasteners Included Handset Cable ties Control Box M6 x 1.0 Button Head Set Screw (pre-installed) M8 x 1.25 Hex Head Bolt Hex Screw Leg Cable Wood Screw Power Cable M6 x 1.0 Locknut w/ external tooth *Programmable Handset lock washer * - Optional part...
  • Page 6 INSTALLATION GUIDE 2) Tools and Supplies Required Phillips Bit Square Bit Drill 4mm Hex Bit 10mm Socket 13mm Socket Tape Measure...
  • Page 7 INSTALLATION GUIDE Standard Benching 3) Assembly: 2-Pack Rectangular Bench Shown 3.1.1) Insert a Right Leg Column into a Frame End w/ Control Plate using (4) M6 x 1.0 Button head hex screws. Do not fully tighten at this time. Fig 3.1 3.2.1) Attach a Top Support Arm using (2) M6 x 1.0 Button head hex screws.
  • Page 8 INSTALLATION GUIDE 3) Assembly: Standard Benching Cont. 3.4.1) Connect one Right leg assembly and one Left leg assembly together using an End link and (2) M8 x 1.25 Hex Head bolts. *See section detail for alignment 3.4.2) Repeat previous step on left leg assembly using a Mid link.
  • Page 9 INSTALLATION GUIDE 3) Assembly: Standard Benching Cont. 3.7.1) Double check that legs, frame, and links are tight. **Note** Center rails to still be loose at this time. 3.7.2) With (at least) one other person, carefully flip frame. Please note that the center rails will slide freely. Fig 3.7 3.8.1) Loosely install (4) M6 x 1.0 Button head hex screws into end and mid-links.
  • Page 10 INSTALLATION GUIDE 3) Assembly: Standard Benching Cont. 3.10.1) Attach each control box to frame with control pate. (See detail view in Fig. 3.9) 3.10.2) Connect the cables from the leg columns to the control box via sockets labeled ‘M1’ and ‘M2’. 3.10.3) Connect the handset to the control box via the socket labeled ‘HS’...
  • Page 11 INSTALLATION GUIDE 3) Assembly: Standard Benching Cont. 3.13.1) Attach a vertical cable manager to underside of worksurface using (2) wood screws. 3.13.2) Run cables through the cable manager and up through the bottom hole in the power trough. Fig 3.13 3.14.1) Attach In-feed leg to bottom of link using (2) M6 x 1.0 Button head hex screws.
  • Page 12 INSTALLATION GUIDE Optional Additions 4) Assembly: 4.1.1) Attach screen bracket to mid and end links as shown using (4) M6 x 1.0 locknuts w/ external tooth lock washer. Fully tighten. **Note** If no screens are being used, repeat this step using cover plates instead of screen brackets 4.1.2) Slide screen down onto brackets Fig 4.1...
  • Page 13 INSTALLATION GUIDE 120 Degree Bench 5) Assembly: 3-Pack 120 Degree Shown 5.1.1) Attach (3) Rear Columns to 120 degree mid link using (1) M8 x 1.25 hex head bolt per leg. Tighten Fig 5.1 5.2.1) Carefully flip base over and attach frame ends with controls plates to rear columns using (4) M6 x 1.0 Button head hex screws per leg.
  • Page 14 INSTALLATION GUIDE 5) Assembly: 120 Degree Bench Cont. 5.4.1) Using Center Rails, slide end assembly and center assembly together as shown. **Note** Set screws located on bottom of frames may need to be loosened to allow center rail to slide freely. Fig 5.4 5.5.1) Loosely install (4) M6 x 1.0 Button Head Hex Screws into end and center link per...
  • Page 15 INSTALLATION GUIDE 5) Assembly: 120 Degree Bench Cont. 5.7.1) Place worksurface(s) on top of frame. Center surface front to back using the flat 5.7.2) depths on each end shown as (d) to the left. Center surface along the edges (w) so 5.7.3) there is equal overhang of the support arms on each side.
  • Page 16 INSTALLATION GUIDE 5) Assembly: Single Sided Bench 1 Pack Single Sided Unit Shown 6.1.1) Insert a Right Leg Column into a Frame End w/ Control Plate using (4) M6 x 1.0 Button head hex screws. Do not fully tighten at this time. Fig 6.1 6.2.1) Attach a Top Support Arm using (2) M6 x 1.0 Button head hex screws.
  • Page 17 INSTALLATION GUIDE 5) Assembly: Single Sided Bench Cont. Fig 6.4 Fig 6.5 6.5.1) Use (8) M6 x 1.0 Hex Head Screws to 6.4.1) Using Center Rails, slide end assembly attach Feet to columns as shown. Tighten and center assembly together as shown. 6.6.1) Use (2) M8 x 1.25 hex head bolts to attach (1) End Link and (1) Mid Link to leg columns as shown.
  • Page 18 INSTALLATION GUIDE 5) Assembly: Single Sided Bench Cont. 6.8.1) Attach each control box to frame with control pate. (See detail view in Fig. 6.8) 6.8.2) Connect the cables from the leg columns to the control box via sockets labeled ‘M1’ and ‘M2’. 6.8.3) Connect the handset to the control box via the socket labeled ‘HS’...
  • Page 19 INSTALLATION GUIDE Extended Corner Bench 5) Assembly: 2 Pack Extended Corner Bench shown 7.1.1) Insert a Right Leg Column into a Frame End w/ Control Plate using (4) M6 x 1.0 Button head hex screws. Do not fully tighten at this time.
  • Page 20 INSTALLATION GUIDE Extended Corner Bench Cont. 5) Assembly: 7.4.1) Connect one Right leg assembly and one Left leg assembly together using an End link and (2) M8 x 1.25 Hex Head bolts. *See section detail for alignment 7.4.2) Repeat previous step on left leg assembly using a Mid link.
  • Page 21 INSTALLATION GUIDE Extended Corner Bench Cont. 5) Assembly: 7.7.1) Double check that legs, frame, and links are tight. **Note** Center rails to still be loose at this time. 7.7.2) With (at least) one other person, carefully flip frame. Please note that the center rails will slide freely. Fig 7.7 7.8.1) Loosely install (4) M6 x 1.0 Button Head Hex Screws into end and mid-links.
  • Page 22 INSTALLATION GUIDE Extended Corner Bench Cont. 5) Assembly: 7.10.1) Using the center rails, slide extended corner leg assembly on the extender corner frame. **Note** Center rails and extended corner frame to still be loose at this time. Fig 7.10 7.11.1) Attach each control box to frame with control pate.
  • Page 23 INSTALLATION GUIDE 5) Assembly: Operating Setup Initial calibration Before you start using your desk normally, you’ll need to get all the parts synced. Based on your handset, follow the instructions below. With Standard Up-Down Handset 1. Press and hold the DOWN button until the desk reaches its lowest position. Release. 2.
  • Page 24 INSTALLATION GUIDE Custom Settings for Preset Memory Handset 5) Assembly: Lock your desk If you have a Memory Preset handset, your desk can be locked in place at any height, either as a safety precaution or just to keep your friends from messing with your settings. It unlocks just as easily, but we recommend guarding that secret.
  • Page 25 INSTALLATION GUIDE 5) Assembly: Custom Settings for Preset Memory Handset cont. Set custom upper and lower height limits continued To set the upper limit: 1. Use the UP/DOWN buttons to move the desk to the desired maximum height. 2. Press the M button and release, then press the UP button and release. The display will flash S - to show that it is ready to set the upper limit.
  • Page 26 INSTALLATION GUIDE Custom Settings for Preset Memory Handset cont. 5) Assembly: Toggle between One Touch and Constant Touch presets Our programmable handsets allow your desk to remember your favorite height settings. By default, if you press and release a memory preset button, the desk will move on its own to the programmed height.
  • Page 27 INSTALLATION GUIDE Troubleshooting & Reset 5) Assembly: Troubleshooting *If your desk is not functioning properly, or if you have a Memory Preset Handset that reads “RST” or any error message (E01 - E13), confirm that all wired connections are secure (legs to cables, cables to Control Box).
