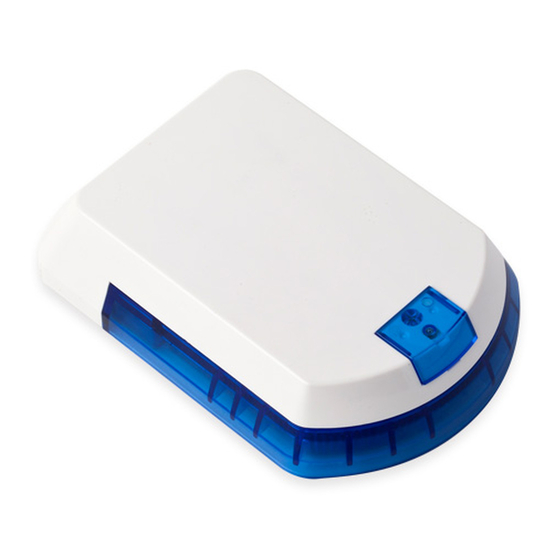

Outdoor wireless siren
Hide thumbs Also See for EWS2:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

EWS2
OUTDOOR WIRELESS SIREN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EWS2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eldes EWS2

Summary of Contents for Eldes EWS2

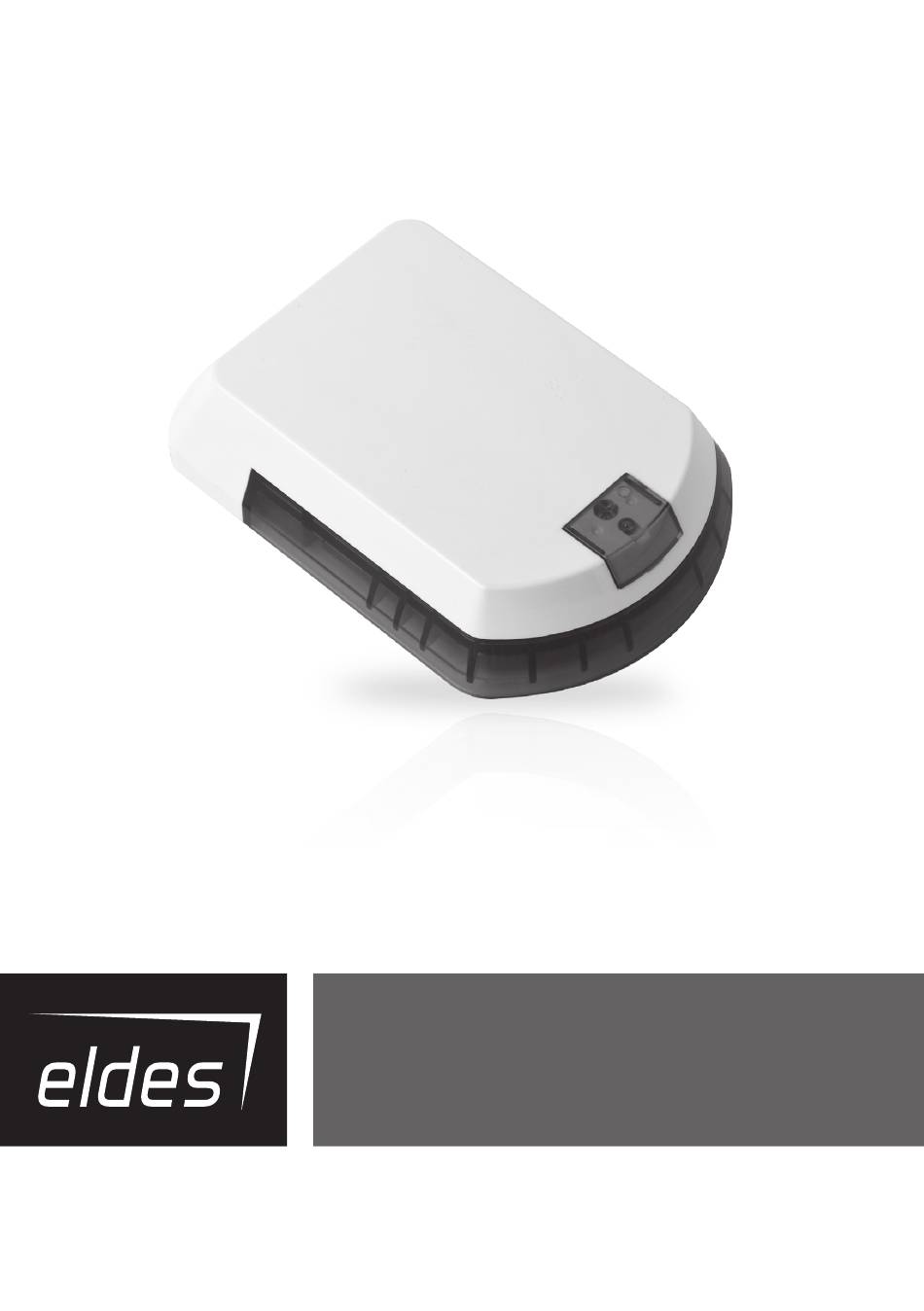

  • Page 1 EWS2 OUTDOOR WIRELESS SIREN...
  • Page 2 PGM output. In case of alarm, the siren provides a sound alarm ( up to 6 minutes long). ESIM264, EPIR, EPIR2 and EPIR3 alarm systems support up to 16 EWS2 devices, while ESIM364 - up to 32 EWS2 devices. The maximum wire- less connection range is 150 meters (492.13ft) (in open areas).
  • Page 3 Dimensions ...............201 x 140 x 36 mm (7.91x5.51x1.42in) Wireless Communication Range ........Up to 30 meters (98.43ft) in premises; up to 150 meters (492.13ft) in open areas Compatible with Alarm Systems ........ELDES Wireless * This operation time might vary in difference conditions.
  • Page 4 3. INSTALLATION 1. Open EWS2 enclosure. Remove the small blue lid located on the front side of the enclosure by pulling the lid up. (see Fig. No. 2). Unscrew the front side of the enclosure (see Fig. No. 3). Detach the front side of the enclosure by pulling the front side up (see Fig. No. 4).
  • Page 5 5. Pair the device with the alarm system using Eldes Configuration Tool software. Open Wireless Device Management section and enter the 8-character Device ID located on the EWS2 enclosure or select the device icon with a message NOT CONNECTED indicated next to it and click the Add button.
  • Page 6 4. EWS2 ZONE, PGM OUTPUT & TAMPER Upon successful EWS2 outdoor siren binding process,the system adds 1 wireless Instant zone and 1 wireless Siren PGM output. The wireless zone is intended for EWS2 tamper control and the wireless PGM output is for siren control.
  • Page 7 UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” li- ability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the Internet providers therefore is not responsible for the quality of Internet service.
  • Page 8 Made in the European Union www.eldes.lt...
