Eldes EPIR3 User Manual

Gsm alarm system
Hide thumbs
Table of Contents

Advertisement

Quick Links

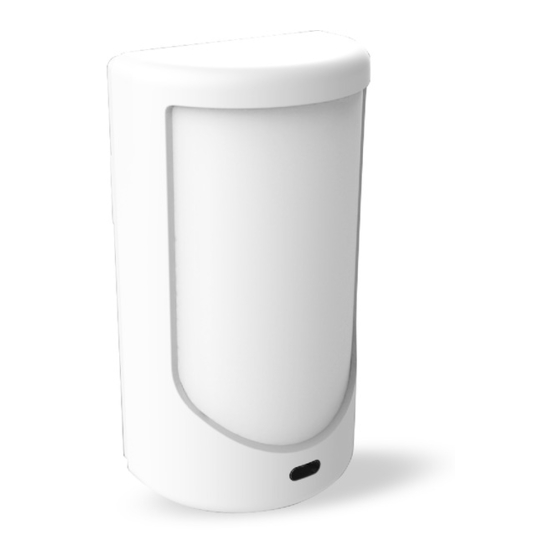

EPIR3
GSM Alarm System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPIR3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eldes EPIR3

Summary of Contents for Eldes EPIR3

  • Page 1 EPIR3 GSM Alarm System...

  • Page 2: Table Of Contents

    Contents Technical Specifications ..........................4 Components of the EPIR3 security system ....................5 1. 7-STEP START GUIDE ..........................6 OVERVIEW ..................................... 6 2. QUICK START GUIDE ..........................9 2.1. How and where to fix the holder to the wall ......................9 2.2.
  • Page 3 It is forbidden to copy and distribute information in this document without advance written authorisa- tion from ELDES UAB. We reserve the right to update or modify this document and/or related products without warning. The EPIR3 GSM Alarm System complies with the essential requirements and relevant provisions of Directive 1999/5/EC.

  • Page 4: Technical Specifications

    Please read the user manual before operating the system. The user manual will show you how to install and operate the EPIR3 alarm security system safely and easily. You’ll find a quick start guide in section 1 and 2. To learn how to take advantage of additional functions, see sections 3, 4, 5 and 7.

  • Page 5: Components Of The Epir3 Security System

    BELL+ Z2 BELL-/COM BELL+ Z2 BELL-/COM INSIDE VIEW BACK SIDE EPIR3 holder for fixing on the wall 12. Motion detector to sense possible intruders 2. Lens for movement detector and LED 13. TAMPER button to alert you if anyone interferes 3.

  • Page 6: Step Start Guide

    1. 7-STEP START GUIDE OVERVIEW This section tells you how to install the EPIR3 system quickly by following the very basic instructions consisting of only 7 steps. For step-by-step device programing using software, please refer to section 2. QUICK START GUIDE.
  • Page 7 SMS password has been successfully changed. 6. Your system is now ready to be armed and disarmed. Before arming the system, ensure that you are not standing in front of the device. OPEN EPIR3 User Manual v1.3...
  • Page 8 In both cases be sure to wait until the system automatically drops your call. Again in both cases the user will receive a short SMS text message each time the system is successfully armed or disarmed. EPIR3 User Manual v1.3...

  • Page 9: Quick Start Guide

    OVERVIEW This section tells you how to install the EPIR3 system quickly and easily and covers all the procedures required for full system operation. The alarm system functions via the GSM network, so you will first need to purchase a SIM card so you can ‘talk’...
  • Page 10 (4.92ft) (0ft) (36.09ft) angle - 10º height 2,5m 2,5m (8.20ft) (8.20ft) (32.81ft) 2,3m 2,5m (7.55ft) (8.20ft) (26.25ft) 2,1m 1,5m (6.89ft) (4.92ft) (26.25ft) Blind area, X1 Secured area 1,5m 4,5m (4.92ft) (0ft) (14.76ft) Maximum detection distance, X2 EPIR3 User Manual v1.3...
  • Page 11 (14.76ft) Blind area, X1 Secured area 1,5m Maximum detection distance, X2 (4.92ft) (0ft) (9.84ft) After a suitable location for your EPIR3 is chosen, fix the holder to the wall using the screws supplied. 1 1 1 EPIR3 User Manual v1.3...

  • Page 12: Prepare The Sim Card

    This will help ensure that when you install the SIM card in the EPIR3 it will operate correctly. IMPORTANT RECOMMENDATIONS • We advise you to choose the same GSM SIM provider for your system as for your mobile phone. This will ensure the fastest, most reliable SMS text message delivery service and phone call connection.

  • Page 13: How To Insert The Sim Card

    To insert the SIM card, first remove the front cover of the device (contain- ing the detector lens) Open the SIM card holder by first sliding the the cover to the right then hinging it upwards. 3 1 3 EPIR3 User Manual v1.3...
  • Page 14 Then insert the SIM card into the holder. Insert SIM card so that gold con- tacts are face down when SIM card cover is flipped back down. Fit the front cover For more information see the diagram of the EPIR3 and the description of components on page <5>. EPIR3 User Manual v1.3...

  • Page 15: Plug The Power Supply Connector Into The Device

    To test that the system is wor- king, when the red LED is switched off move your hand in front of the EPIR3 lens. The system will detect the motion and the LED will light up for a few seconds.

  • Page 16: About The Back-Up Battery And How To Replace It

    How to replace the battery: 1. Unplug the power supply from 2. Slide the EPIR3 up. 3. Remove the EPIR3 from its the mains electricity socket. holder. 3. Unplug the power supply 4. Remove the front cover of the device (containing the detector lens) connector.

  • Page 17: How To Program Epir3 System

    SMS text message management. NOTE If you wish to program the EPIR3 system by SMS text message, please refer to section 4. HOW TO PROGRAM THE SYSTEM USING YOUR MOBILE PHONE. If not, please proceed to section 2.10.1 Download ELDES Configuration Tool software.
  • Page 18 QUICK START GUIDE 2.10.1. Download ELDES Configuration Tool software. Visit www.eldes.lt , you will find a link to the Configuration Tool under the menu option Downloads & Support → Drivers & Software → Eldes CT Eldes Configuration Tool Once you are at Configuration Tool section, left-click on the ELDES Configuration Tool v3.x.xx (setup.exe).
  • Page 19 QUICK START GUIDE Specify a location for setup file and left-click on the Save button. We recommend placing the file on your desktop. 2.10.2. install ELDES Configuration Tool software. Double left-click on the downloaded setup file to run it. 9 1 9...
  • Page 20 QUICK START GUIDE In the newly popped-up window left- click on the Next button to continue. In the next window left-click on the Next button to continue. EPIR3 User Manual v1.3...
  • Page 21 QUICK START GUIDE In the following window left-click on the Next button to continue. In the next window left-click on the Next button to continue. 1 2 1 EPIR3 User Manual v1.3...
  • Page 22 QUICK START GUIDE In the following window left-click on the Install button to begin the installation process. Wait for the installation progress to complete and do not click on any button. EPIR3 User Manual v1.3...
  • Page 23 ELDES Configuration Tool software after-wards. NOTE: You do not have to repeat the installation process the next time when you want to run ELDES Config- uration Tool software again. 2.10.3. Connect EPIR3 to your PC via the USB cable IMPORTANT: Before connecting EPIR3 to your PC via the USB cable, first ensure the EPIR3 is powered up.

  • Page 24: How To Arm And Disarm The System

    ELDES ConfigTool shortcut located on the desktop. On successful first-time connection, a Welcome to first-time configuration of EPIR3 window will show up. Left-click on the Run Quick Start Guide button and follow the step-by-step instructions to program the EPIR3 system. After completing all steps, your system will be ready for use.

  • Page 25: A 15 Second Delay Allows You To Leave The Premises

    When you arm the system via your phone, a keyfob or a keypad, the system will give you a 15 second delay before it activates, giving you time to leaving the premises. You can change the time delay at any time (see ELDES Con- figuration Tool software’s Help section).

  • Page 26: In Case Of Mains Power Failure

    You can also program the system to send an SMS text message to all users (see ELDES Configuration Tool soft- ware’s Help section). NOTE: Due to the dual element technology of a built-in PIR sensor, the device features the pet immunity against the animals of up to 40 kg weight in order to prevent them from causing false alarms while moving within the secured premises.

  • Page 27: How To Manage The Wireless Devices

    OVERVIEW Your EPIR3 has a built-in wireless module. This section tells you how to pair and remove a wireless device using your PC and ELDES Configuration Tool as well as briefly describing every available wireless device which can oper- ate together with your EPIR3 system.

  • Page 28: How To Pair A Wireless Device With The System

    Once the wireless device is paired, it will attempt to exchange data with ESIM364 system. Due to battery saving reasons, all ELDES wireless devices operate in sleep mode. The data exchange will occur instantly if the wireless device is triggered (zone alarm or tamper alarm) or periodically when the wireless device wakes up to transmit the supervision signal, based on Test Time value, to the system as well as to ac cept the queued up command (if any) from the system.
  • Page 29 3. Open Wireless Device Management section and click on the Turn ON button in order to activate the system’s wireless transmitter-receiver. By default, this section uses a list view to show ELDES wireless devices visible to EPIR3 within its wireless signal range 9 2 9...
  • Page 30 Alternatively, you can switch to radar view by clicking on the Radar View button. 4. List view: Left-click on the Add button located next to the unpaired wireless device icon (red stripe above the icon). EPIR3 User Manual v1.3...
  • Page 31 Radar view: Left-click (highlight) on the unpaired wireless device icon (red stripe above the icon) to select it and click on the Add button afterwards. IMPORTANT for EWK1/EWK2/EWK2A: After left-clicking on the Add button it is necessary to press any button on the EWK1/EWK2 keyfob several times. 1 3 1 EPIR3 User Manual v1.3...

  • Page 32: How To Remove A Wireless Device From The System

    3.2. How to remove a wireless device from the system IMPORTANT: Before you continue, first ensure the EPIR3 is powered up and connected to your PC via the USB cable. 1. Run ELDES Configuration Tool software and left-click on the USB CONNECTION / Open Configuration button.
  • Page 33 Radar view: Left-click (highlight) on the paired wireless device icon (green stripe above the icon) to select it and click on the Remove button afterwards. 3 3 3 EPIR3 User Manual v1.3...

  • Page 34: Ekb3W Wireless Keypad Overview

    3.3. EKB3W wireless keypad overview ATTENTION: The EKB3W commands provided in this user manual are intended for basic control of the EPIR3 system. For complete configuration and control using EKB3W, please refer to section 4.HOW TO PROGRAM THE SYSTEM USING EKB3W WIRELESS KEYPAD.

  • Page 35: Keys Functionality

    Sleep mode. Due to battery power saving reasons, most of the time EKB3W keypad operates in sleep mode and periodically (by default – every 60 seconds) transmits the supervision signal, identified as Test Time, to the EPIR3 system. When the keypad operates in the sleep mode, only the transmitter remains operational, while the receiver as well as the the LED indicators and the back-light are switched OFF.
  • Page 36 NOT initiate the Back-light Timeout as well as the buzzer will NOT emit short beeps and the LED indicators will NOT light ON. To configure Back-light Timeout and Test Time parameters, please refer to ELDES Configuration Tool software. NOTE: If you have accidentally typed in an unnecessary character, please press [*] key or wait for 10 seconds until the keypad buzzer will provide a long beep indicating that the typed in characters have been cleared.
  • Page 37 2. To disarm the system or turn off the alarm, enter any out of 10 available 4-digit user codes using the number keys: Enter user code: uuuu Value: uuuu – 4-digit user code Example: 1111 7 3 7 EPIR3 User Manual v1.3...
  • Page 38 (see below). Arm the system in Stay mode manually by entering the following combination using [STAY] and number keys: Press the [STAY] key & enter user code: STAY uuuu Value: uuuu - 4-digit user code Example: STAY1111 EPIR3 User Manual v1.3...
  • Page 39 Due to battery saving reasons the buzzer will beep during entry delay and in case of alarm only if the violated zone is of the associated EKB3W keypad. 9 3 9 EPIR3 User Manual v1.3...
  • Page 40 The alternative way to activate all bypassed zones at once is to disarm the system. NOTE: Zones can only be bypassed when the system is not armed. The Configuration mode must be deactivated, while bypassing and activating a bypassed zone. EPIR3 User Manual v1.3...
  • Page 41 Example: LED #3 from section A is flashing and LED #8 from section B is illuminated continuously. According to the table below LED #8 is equal to number 18, therefore 18 + 3 = 21. Result: Violated high-number zone or tamper number is 21. 1 4 1 EPIR3 User Manual v1.3...

  • Page 42: Ewk1 And Ewk2 Wireless Keyfob Overview

    Zone LED 6 = 6 3.4. EWK1 and EWK2 wireless keyfob overview EWK1/EWK2 is a wireless keyfob intended for using with EPIR3 alarm system. EWK1/EWK2 keyfob features four configurable buttons intended to operate according to individual needs. After the button is pressed, EWK1/EWK2 internal buzzer’s sound signal (and red indicator;...
  • Page 43 2. To disarm the system, press 1 of 4 keyfob buttons set to disarm the system (by default, EWK1 - ; EWK2 Disarm Disarm system system 3. After the system is successfully disarmed, it will reply with confirmation by SMS message to User 1 phone number (by default). User EPIR3 3 4 3 EPIR3 User Manual v1.3...

  • Page 44: How To Program The System Using Your Mobile Phone

    The system supports a flexible SMS text message management replies. In order to configure and control the EPIR3 system using SMS text message, send the text command to the phone number of EPIR3 from one of the pre-programmed user numbers.
  • Page 45 = day, [01... 31]; hh = hour, [00... 23]; mi = 14:15 minutes, [00... 59] NOTE: The underscore symbol ‘_’ in these instructions represents a space. So when typing an SMS text message, replace the underscore symbol with a single space. 5 4 5 EPIR3 User Manual v1.3...
  • Page 46 A combination of different phone number formats is allowed to use. NOTE: The underscore symbol ‘_’ in these instructions represents a space. So when typing an SMS text message, replace the underscore symbol with a single space. EPIR3 User Manual v1.3...
  • Page 47 PGM output startup ON or XXXX_OutputName:ON status to ON NOTE: The underscore symbol ‘_’ in these instructions represents a space. So when typing an SMS text message, replace the underscore symbol with a single space. 7 4 7 EPIR3 User Manual v1.3...
  • Page 48 OFF:HH.MM.SS [00... 59] The EPIR3 system supports wireless PGM outputs allowing connection and control of various electrical appli- ances: water pumps, heating, lighting, blinds etc. The maximum number of PGM wireless outputs which can be connected to the EPIR3 system is 32.
  • Page 49 SMS:ON system in case of alarm NOTE: The underscore symbol ‘_’ in these instructions represents a space. So when typing an SMS text message, replace the underscore symbol with a single space. 9 4 9 EPIR3 User Manual v1.3...
  • Page 50 Function Command Value Range / Comment Example Disable SMS text XXXX_M:OFF The EPIR3 will let you know when the mains 230V 1111_M:OFF message regard- power supply fails or recovers. In some remote plac- ing the external es where the mains power supply is unreliable, you...
  • Page 51 SMS text message. The system will make a phone call to you and enable the microphone in EPIR3. You must answer the call within 20 seconds to listen in to what is happening in your property. If you do not pick up, the system will stop trying and will return to its previous state.
  • Page 52 The greater the value, the lower the sensitivity the detector level of the detector. The EPIR3 device is pre-set by the manufac- turer at the optimal detector sensitivity level. However, in some cases, for instance where the system is installed in windy premises, the air flow can cause false alarms.
  • Page 53 If you continue to have problems communicat- ing with the SIM card you installed into EPIR3, try using a SIM card from a different mobile telephone operator.
  • Page 54 Value Range / Comment Example Get ELDES Cloud XXXX_SMART_ID The system will send you a text by return, with 1111_SMART_ID Services ID code the multi-character code required by ELDES Cloud Services feature. Enable ELDES XXXX_SMART:ON 1111_SMART:ON Cloud Services Disable ELDES...
  • Page 55 APN might be required to set up. NOTE: The underscore symbol ‘_’ in these instructions represents a space. So when typing an SMS text message, replace the underscore symbol with a single space. 5 5 5 EPIR3 User Manual v1.3...
  • Page 56 IP address, port, protocol port, protocol and GPRS parameter values. and GPRS parameters NOTE: The underscore symbol ‘_’ in these instructions represents a space. So when typing an SMS text message, replace the underscore symbol with a single space. EPIR3 User Manual v1.3...

  • Page 57: How To Program The System Using Ekb3W Wireless Keypad

    5. HOW TO PROGRAM THE SYSTEM USING EKB3W WIRELESS KEYPAD In order to configure and control the EPIR3 system using EKB3W wireless keypad, please refer to the following information first. ESSENTIAL INFORMATION FOR PROGRAMING VIA EKB3W WIRELESS KEYPAD • Before configuring the system using EKB3W wireless keypad, the Configuration mode must be activated by entering [INST]adminpassword# command.
  • Page 58 16aaaa# aaaa 0000 - 9999 administrator password Set user phone 17xxyyyyyyyyyyyyyyy# 01 -10 number yyyyyyyyyyyyyyy Set security 55yyyyyyyyyyyyyyy# yyyyyyyyyyyyyyy guard phone number Set system date 66YYYYMMDDhrmn# YYYYM and time 01 - 12 01 -31 00- 59 EPIR3 User Manual v1.3...
  • Page 59 • Local – Example for UK: 01709111XXXX. security guard phone number, 15 digits max.; supported format: 55017091111111# • International (with 00) – Example for UK: 00441709111XXXX. • Local – Example for UK: 01709111XXXX. year 66201408231625# month hours minutes 9 5 9 EPIR3 User Manual v1.3...
  • Page 60 0000 - 9999 (must be entered without activa- ting Configuration mode in advance) Activate byppa- BYPSxxyyyy# 01 - 34 sed zone yyyy 0000 - 9999 (must be entered without activa- ting Configuration mode in advance) EPIR3 User Manual v1.3...
  • Page 61 SMS password is permited Zone Settings zone number 540245# entry delay in seconds exit delay in seconds 7258# zone number 52380# zone number 52121# zone number BYPS093281# 4-digit user code zone number BYPS093281# 4-digit user code 1 6 1 EPIR3 User Manual v1.3...
  • Page 62 Manual system STAYxxxx xxxx arming in STAY mode (must be entered without activa- ting Configuration mode in advance) PGM Output Settings Turn ON PGM 61xx1# 01 - 32 output/set PGM output startup state as ON EPIR3 User Manual v1.3...
  • Page 63 4-digit administrator password INST1470# Interior Follower 53053# Instant 24-Hour Delay Fire Panic/Silent zone number STAY Mode Settings zone number 56031# zone number 56270# 4-digit user code STAY3281# PGM Output Settings PGM output number 61201# 3 6 3 EPIR3 User Manual v1.3...
  • Page 64 761# activation in case of wireless signal loss with wireless device Notification Settings Disable periodic 110000# INFO SMS Set periodic 11xxyy# 01 - 23 INFO SMS 00 - 99 Disable call in 300# case of alarm EPIR3 User Manual v1.3...
  • Page 65 (hours = xx) for periodic INFO SMS delivery or period in hours (if the 110315# period = yy in days is set to 0) system will not call any preset user phone number in case of alarm 300# 5 6 5 EPIR3 User Manual v1.3...
  • Page 66 Disable simul- 210# taneous SMS delivery in case of alarm Enable simul- 211# taneous SMS delivery in case of alarm Disable SMS in 390# case of alarm to Security Guard EPIR3 User Manual v1.3...
  • Page 67 211# simultaneously in case of zone/tamper alarm regardless of SMS text message delivery status system will not send SMS text message to preset Security Guard phone num- 390# ber in case of zone/tamper 7 6 7 EPIR3 User Manual v1.3...
  • Page 68 Enable simulta- 221# neous SMS deli- very regarding arm/disarm Disable SMS 500# regarding arm/ disarm to Secu- rity Guard Enable SMS in 501# case of alarm to Security Guard Disable SMS 130# regarding mains power supply loss/restore EPIR3 User Manual v1.3...
  • Page 69 SMS text message to preset Security Guard phone number 501# regarding system arm/disarm system will not send SMS text message to any preset user phone number 130# regarding mains power supply loss/restore 9 6 9 EPIR3 User Manual v1.3...
  • Page 70 Detector Sensitivity Level Settings Set PIR detector 79xx# 20 - 99 sensitivity level GSM Audio Settings Set microphone 64xx# 00 - 15 gain for remote listening Set speaker 67xxx# 00 - 100 level EPIR3 User Manual v1.3...
  • Page 71 SMS text message to the next preset user phone number Detector Sensitivity Level Settings higher value = lower sensitivity level 7960# GSM Audio Settings adjust built-in microphone sensitivity level 6410# speaker level 6725# 1 7 1 EPIR3 User Manual v1.3...
  • Page 72 Enable MS mode 231# Disable MS 230# mode Set Account 27cccc# cccc 0000 - 9999 number Disable data 24010# message 24020# 24030# 24040# 24050# 24060# 24070# 24080# 24090# 24100# 24110# 24120# 24130# 24140# 24150# 24160# 24170# EPIR3 User Manual v1.3...
  • Page 73 24-hour alarm/restore fire alarm/restore low battery temperature risen temperature fallen wireless signal loss/restore armed/disarmed in STAY mode system shut down armed/disarmed automatically 3 7 3 EPIR3 User Manual v1.3...
  • Page 74 EKB3W command Value Range Activate/deacti- INSTaaaa# vate Configura- tion mode Enable data 24011# message 24021# 24031# 24041# 24051# 24061# 24071# 24081# 24091# 24101# 24111# 24121# 24131# 24141# 24151# 24161# 24171# Set primary 480# connnection 481# 482# EPIR3 User Manual v1.3...
  • Page 75 24-hour alarm/restore fire alarm/restore low battery temperature risen temperature fallen wireless signal loss/restore armed/disarmed in STAY mode system shut down armed/disarmed automatically armed/disarmed by user test event GPRS network 481# Voice calls 5 7 5 EPIR3 User Manual v1.3...
  • Page 76 Set number of 68xxx# 01 - 255 GPRS attempts Set test period 46xxxxx# xxxxx 0 - 65535 Set Unit ID 47xxxx# xxxx 0000 - 9999 Set monitoring 26 xx 01 - 03 station phone yyyyyyyyyyyyyyy# yyyyyyyyyyyyyyy number EPIR3 User Manual v1.3...
  • Page 77 Voice Calls 26020044170911XXXX1# monitoring station phone number, 15 digits max.; supported format: • International (with 00) – Example for UK: 0044170911XXXX1. • Local – Example for UK: 0170911XXXX1. 7 7 7 EPIR3 User Manual v1.3...
  • Page 78 Function EKB3W command Value Range Activate/deacti- INSTaaaa# vate Configura- tion mode Set number 37xx# 01 - 10 of Voice Calls attempts EPIR3 User Manual v1.3...
  • Page 79 Comment Example 4-digit administrator password INST1470# number of data transmission attempts via Voice Calls in case the intitial 3706# attempt was unsuccessful 9 7 9 EPIR3 User Manual v1.3...

  • Page 80: Troubleshooting

    If you cannot find the answer to your problem above, please contact your local distributor. More up to date information about your device and other ELDES products can be found at www.eldes.lt EPIR3 User Manual v1.3...

  • Page 81: Additional Information For Advanced Users

    • SIM PIN Enabled - PIN code left enabled. The LED indicator will flash with pauses if the PIN code is not disabled on the SIM card that is inserted in the EPIR3. • GSM Operator Error - GSM connection error. The LED indicator will flash with pauses in case of this error.
  • Page 82 3. Connect BELL wire (usually – red) of the wired bell/siren to BELL+ terminal, while the GND (usually - black) wire to BELL - / COM terminal. The wired siren/bell, connected to the wired output, must be piezo type and powered from +7... +11V. The current BELL-/COM consumption must not exceed 150 mA. BELL BELL+ EPIR3 User Manual v1.3...
  • Page 83 4. Screw in the terminals. 5. Insert back the terminal block. 6. Set the Output Mode as Siren under Management section in the ELDES Configuration Tool software. NOTE: No additional power supply is required for the siren/bell. NOTE: For a more convenient installation, we recommend using EWS1, EWS2 and EWS3 wireless sirens.
  • Page 84 3. Connect LED indicator’s anode lead (longer) to any of 1 kΩ nominal resistor lead and to the BELL+ terminal, while the cathode lead (shorter) to BELL - / COM terminal. BELL- / COM resistor 1 k BELL+ 4. Screw in the terminals. EPIR3 User Manual v1.3...

  • Page 85: How To Connect A Sensor To The Wired Zone

    Please, obtain these components from your local store if desired. 7.2. How to connect a sensor to the wired zone EPIR3 system comes equipped with the wired zone, therefore you may wish to connect a wired sensor to your system.
  • Page 86 2. Loosen the screws of the terminals using a flathead screwdriver. 3. Connect the 5.6 kΩ nominal resistor, supplied with your EPIR3 system, across BELL- / COM and Z2 terminal in parallel to the connected wires of the detection device.
  • Page 87 5,6 k Magnet   5. Screw in the terminals. 6. Insert back the terminal block. 7. Set Zone Status of Z2 to Enabled under Zones/On Board section in ELDES Configuration Tool software. 7 8 7 EPIR3 User Manual v1.3...
  • Page 88 3. Connect the COM (usually - green) wire to BELL - / COM terminal. 4. Connect the Z wire (usually – yellow) of the wired detection device to any terminal of the 5.6 kΩ nominal resistor (supplied with your EPIR3 system), while the other resistor terminal - to Z2 terminal. Magnet...
  • Page 89 5. Screw in the terminals. 6. Insert back the terminal block. 7. Set Zone Status of Z2 to Enabled under Zones/On Board section in ELDES Configuration Tool software. 9 8 9 EPIR3 User Manual v1.3...

  • Page 90: Automatic System Arming/Disarming

    Detection devices such as motion detectors and door contacts are connected to the alarm system’s zone terminals. Once connected, the associated zone’s parameters must be configured. EPIR3 comes equipped with 1 wireless zone and 1 on-board zone. For more details regarding zone expansion, please refer to section 7.4.2. Zone expansion.

  • Page 91: Zone Expansion

    For additional detection device connection, the number of zones can be expanded by: • pairing wireless devices (see section 3. HOW TO MANAGE THE WIRELESS DEVICES). • creating virtual zones (see ELDES Configuration Tool software’s Help section). The maximum supported number of zones is 34.

  • Page 92: Zone Attributes

    SMS text messages that are sent to the user during alarm. the By default, the zone names are: Z1 – Zone1, Z2 – Zone2, Z3 – Zone3, Z4 – Zone4 etc. ATTENTION: Space, colon, semi-colon characters, parameter names and/or values, such as PSW, STATUS, ON, OFF etc. are NOT allowed in zone names. EPIR3 User Manual v1.3...

  • Page 93: Tampers

    • If the enclosure of the EPIR3 system or wireless device is opened, the physical tamper switch will be triggered. By default, indicated as Tamper x in the SMS text message (x = tamper number).
  • Page 94 • Output – Operates as normal PGM output that can be controlled by the user. Normally, this type is used for any device or relay. • Siren – Operates as siren output that automatically activates during alarm. Typically, this type is used for bell/siren connected to EW2,EW2B wireless device. EPIR3 User Manual v1.3...

  • Page 95: Siren

    When enabled, the built-in LED indicators of EWS3 wireless indoor siren will flash during the alarm. In the event of burglary, 24-hour or tamper alarm, EWS3 will flash the blue LED indicators, while in case of a fire alarm, the device can flash the red LED indicator. 5 9 5 EPIR3 User Manual v1.3...
  • Page 96 If a wireless device loses its wireless signal for 60 minutes or longer, the system will send notification by SMS text message to user phone number and activate the siren. By default, the siren will be activated when wireless signal is lost. EPIR3 User Manual v1.3...

  • Page 97: Alarm Indications And Notifications

    The system will dial the next preset user phone number,, if the previous user was unavailable due to the following reasons: • mobile phone was switched off. • mobile phone was out of GSM signal coverage. • provided “busy” signal. 7 9 7 EPIR3 User Manual v1.3...

  • Page 98: System Notifications

    NOTE: Phone calls to the preset user phone number in case of alarm are disabled by force when MS mode and/or ELDES Cloud Services feature is enabled (see section 7.11. Monitoring station). NOTE: If one or more zones/tampers are violated during the alarm, the system will attempt to send as many SMS text message and dial the user phone number as many times as the zone/ tamper was violated.
  • Page 99 SMS text message sent to the user about disarmed system. System started SMS text message sent to the user on system startup. Low battery SMS text message sent to the user in case the back-up battery runs below 8V. 9 9 9 EPIR3 User Manual v1.3...
  • Page 100 SMS text message sent to the user in case the fault temperature sensor is faulty. *ATTENTION: If this feature is disabled for the user who wishes to arm the system, notification regarding the failed arming will not be delivered. EPIR3 User Manual v1.3...

  • Page 101: Back-Up Battery, Mains Power Supply Status Monitoring And Memory

    The configuration settings are stored in a built-in EEPROM memory, therefore even if the system is fully shut down, the configuration remains. For more details on how to manage back-up battery and power supply notifications, please refer to section 7.9. System notifications. 1 1 01 EPIR3 User Manual v1.3...

  • Page 102: Monitoring Staton

    7.9. System notifications. Seq. No. Contact ID® Event Description Code 1110 Fire alarm Transmitted in case a zone of Fire type is violated. 3110 Fire restore Transmitted in case a zone of Fire type is restored. EPIR3 User Manual v1.3...
  • Page 103 1311 Battery failed Transmitted in case the backup battery resistance is 2Ω or higher (battery requires replacement). The battery is self-tested every 10 days. 3 1 03 EPIR3 User Manual v1.3...
  • Page 104 The following table refers to user codes included in arm/disarm data messages. Type Code User Phone Number 1 User Phone Number 2 User Phone Number 3 User Phone Number 4 User Phone Number 5 User Phone Number 6 User Phone Number 7 EPIR3 User Manual v1.3...
  • Page 105 Initially, the system communicates via primary connection with the monitoring station. By default, if the initial attempt to transmit data is unsuccessful, the system will make additional attempts until the data is successfully delivered. If all attempts are unsuccessful, the system will follow this pattern: 5 1 05 EPIR3 User Manual v1.3...
  • Page 106 If a new data message, except Test Event (ping), is generated during Delay after last communication attempt time, the system will immediately attempt to transmit it to the monitoring station, regardless of Delay after last communication attempt being in progress. EPIR3 User Manual v1.3...
  • Page 107 Transmits all queued up data Delay after last communica- tion attempt Returns to PRIMARY Returns to PRIMARY NOTE: The number of attempts, indicated in the diagram, are default and depends on the determined communication method. 7 1 07 EPIR3 User Manual v1.3...
  • Page 108 To report the online status, the system periodically transmits (By default – every 180 seconds) Test Event data message (ping) to the monitoring station via GPRS network EPIR3 User Manual v1.3...
  • Page 109 • International (with plus) – The phone numbers must be entered starting with plus and an international country code in the following format: +[international code][area code][local number], example for UK: +441709111XXXX . This format can be used when setting up the phone number by ELDES Configuration Tool software.
  • Page 110 +[international code][area code][local number], example for UK: +441709111XXXX. This format can be used when setting up the phone number by ELDES Configuration Tool software. • International (with 00) – The phone number must be entered starting with 00 and an international country code in the following format: 00[international code][area code][local number], example for UK: 00441709111XXXX.

  • Page 111: System Configuration Using Eldes Configuration Tool Software

    In order to start using the remote configuration feature, please run the step-by-step wizard and follow the steps provided in the start page of ELDES Configuration Tool software. Please, note that it will be necessary to send an SMS text message to the system’s phone number in order to initiate the remote connection. By following the steps you will be instructed on what text must be sent to the system’s phone number in such case.
  • Page 112 After the system configuration is complete, use one of the following methods to end the configuration process: • Click Disconnect or Stop button and close ELDES Configuration Tool software; • The session will automatically expire in 20 minutes. Before the last 5 minutes, the software will offer the user to extend the session for another 20 minutes.

  • Page 113: How To Reset The System To Default Settings

    9. After the copying is done, power down EPIR3. 10. Unplug USB cable. 11. Power up EPIR3. 12. Firmware upgraded. NOTE: Alternatively, boot mode for EPIR3 firmware upgrade can be activated using ELDES Configuration Tool software. 3 1 13 EPIR3 User Manual v1.3...

  • Page 114: How To Upgrade The Firmware Remotely Via Gprs Connection

    Before updating the firmware remotely via GPRS connection, make sure that: • SIM card is inserted into SIM card slot of EPIR3 device. • Mobile internet service (GPRS) is enabled on the SIM card.
  • Page 115 Comma and underscore character is NOT allowed to use in user name, password and firmware file name. ATTENTION: “ELDES UAB” does not run a FTP server and does not host the firmware files online. Please, contact your local distributor to request the latest firmware file. NOTE: It is strongly recommended to restore default parameters after the firmware update.

  • Page 116: Eldes Cloud Services

    The connection with the platform can be established either via GPRS network and can be accessed via web browser and smart-phone application developed for Android and iOS-based devices (iPhone, iPad). In order to start using ELDES Cloud Services platform, please enable it using the following configuration me- thods.
  • Page 117 DES Configuration Tool software. ATTENTION: In case you DO NOT wish to use ELDES Cloud Services and your device is not associated with any ELDES Cloud Services account, please DO NOT leave ELDES Cloud Services enabled. Otherwise additional charges may apply for data traffic based on your cell phone service plan.

  • Page 118: Related Products

    8. Related products EWS2 - wireless external siren EWF1 – wireless smoke/CO detector EW2 - wireless zone and PGM EKB3W – wireless LED keypad output expansion module EPIR3 User Manual v1.3...
  • Page 119 EWD2 - wireless magnetic door con- EWK2 - wireless keyfob tact/shock sensor/flood sensor EWP2 - wireless PIR sensor EWS3 - wireless internal siren |(motion detector) 9 1 19 EPIR3 User Manual v1.3...
  • Page 120 EWR2 - wireless signal repeater EWK2A - wireless keyfob EPIR3 User Manual v1.3...
  • Page 121 ELDES UAB will not take any responsibility for the loss of personal effects, property or revenue whilst using the system. The liability of ELDES UAB is limited to the value of the system purchased.
  • Page 122 • DO NOT attempt to repair the system yourself - any repairs must be carried out by fully qualified personnel only The EPIR3 comes with its own power supply unit so you can plug it in straight away. The unit is not meant for outdoor use, i.e.
  • Page 124 Made in the European Union www.eldes.lt...
