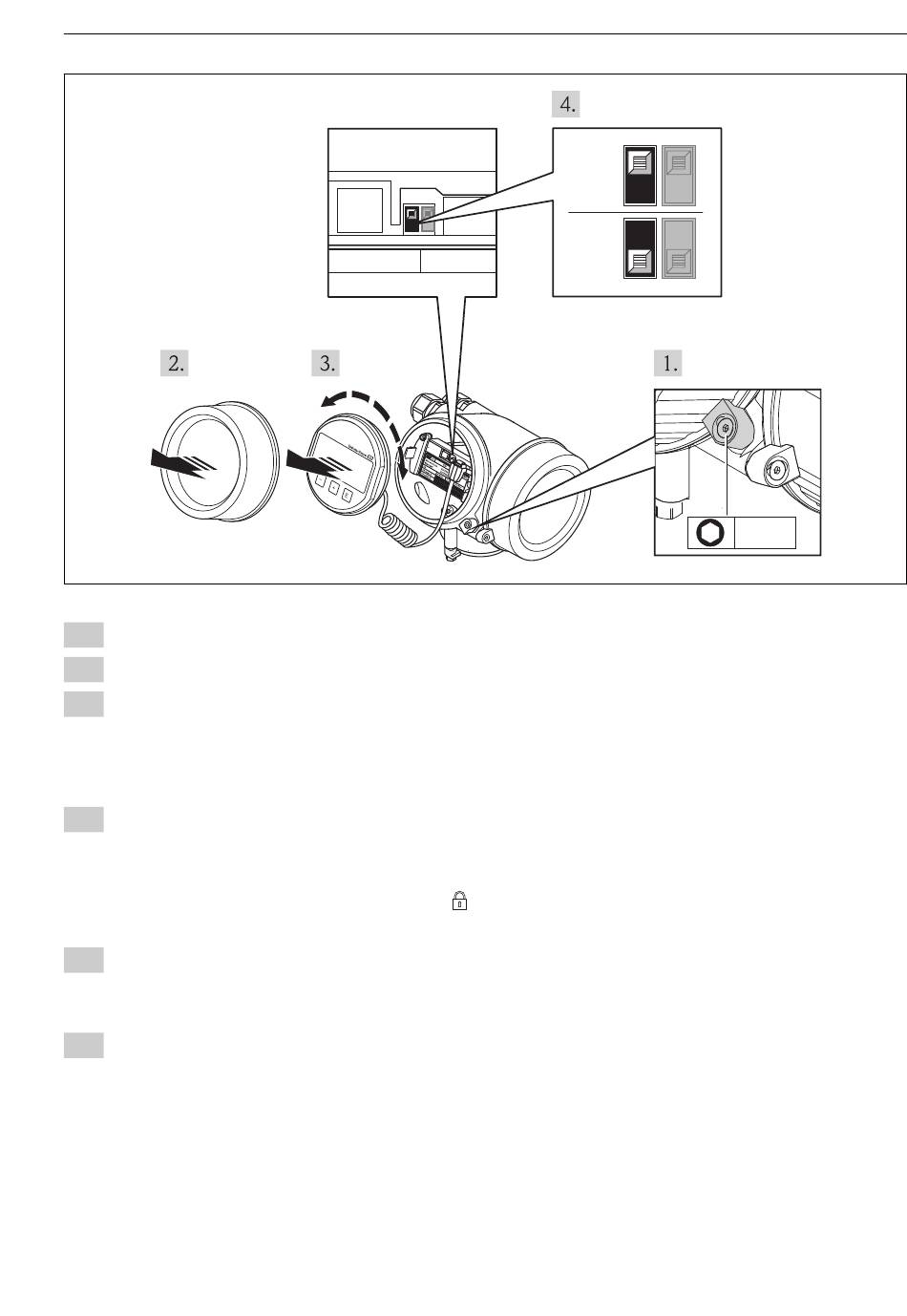

1. Loosen the securing clamp.
2. Unscrew the electronics compartment cover.
3. Pull out the display module with a gentle rotational movement. To make it easier to
access the lock switch, attach the display module to the edge of the electronics
compartment.
 Display module is attached to the edge of the electronics compartment.
4. Setting the write protection switch (WP) on the main electronics module to the ON
position enables the hardware write protection.
 The Hardware locked option is displayed in the Locking status parameter. In
addition, on the local display the -symbol appears in front of the parameters in
the header of the operational display and in the navigation view.
5. Feed the cable into the gap between the housing and main electronics module and plug
the display module into the electronics compartment in the desired direction until it
engages.
6. Reverse the removal procedure to reassemble the transmitter.
11

Diagnostic information

Faults detected by the self-monitoring system of the measuring device are displayed as a
diagnostic message in alternation with the operational display. The message on remedial
measures can be called up from the diagnostic messages, and contains important information
on the fault.
