Electrical connection

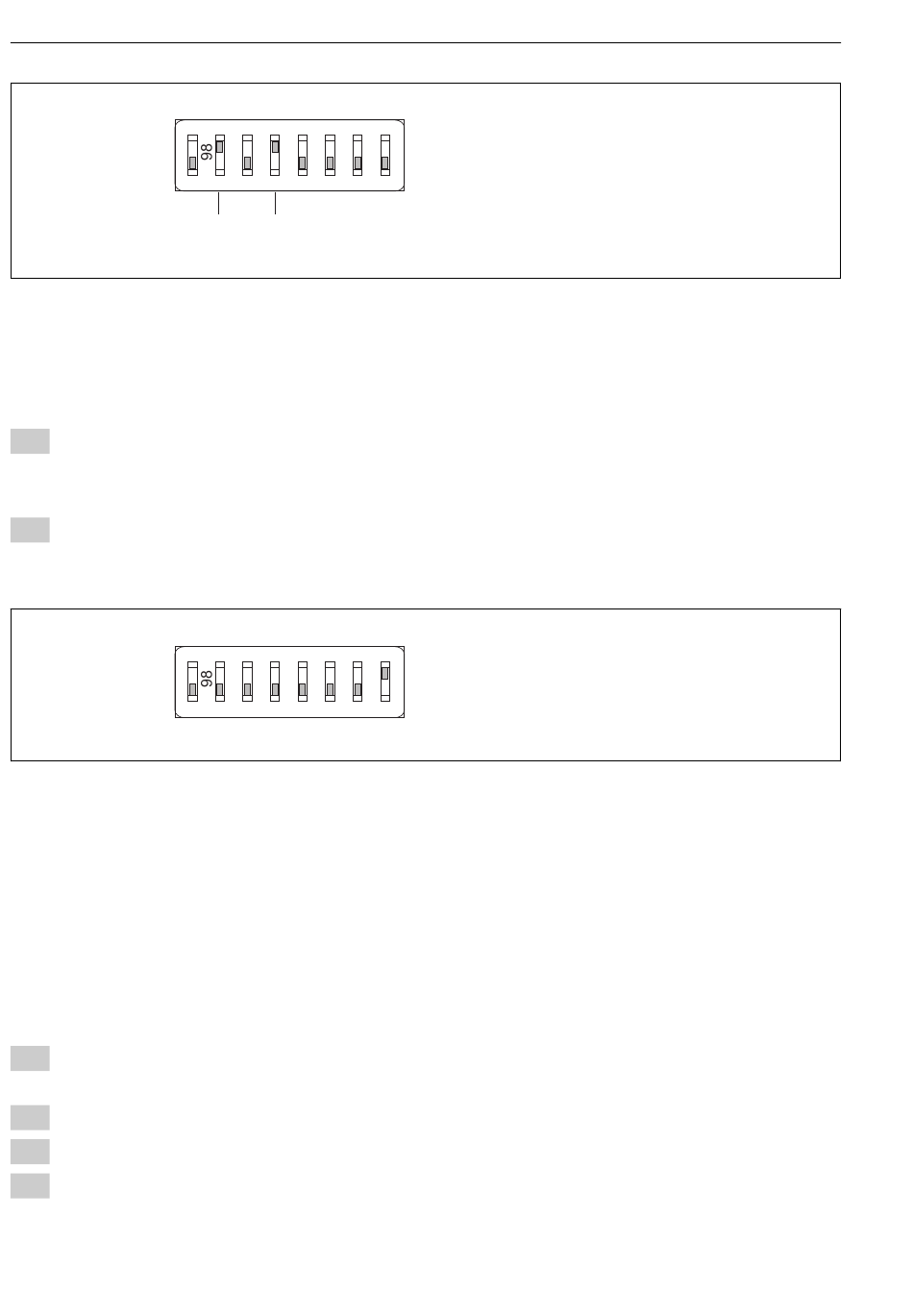

 5 Example of hardware addressing; switch 8 is set to the "OFF" position; switches 1 to 7 define the
address.
Software addressing
1. Set switch 8 to "ON".
 The device restarts automatically and reports the current address (factory setting:
126).
2. Configuring the address via the operating menu: Setup menu→Communication
submenu→Device address parameter
 6 Example of software addressing; switch 8 is set to the "ON" position; the address is defined in the
operating menu ("Setup" menu→"Communication" submenu→"Device address" parameter).
7.4

Ensuring the degree of protection

The measuring device fulfills all the requirements for the IP66/67 degree of protection, Type
4X enclosure.
To guarantee IP66/67 degree of protection, Type 4X enclosure, carry out the following steps
after the electrical connection:
1. Check that the housing seals are clean and fitted correctly. Dry, clean or replace the
seals if necessary.
2. Tighten all housing screws and screw covers.
3. Firmly tighten the cable glands.
4. To ensure that moisture does not enter the cable entry, route the cable so that it loops
down before the cable entry ("water trap").
32
ON
1 2 3 4 5 6 7
2 + 8 = 10
ON
1 2 3 4 5 6 7
DIP
8
DIP
8
