Installation
6.2
Mounting the measuring device
6.2.1
Required tools
For transmitter
• For turning the transmitter housing: Open-ended wrench8 mm
• For opening the securing clamps: Allen key3 mm
For sensor
For flanges and other process connections: Corresponding mounting tools
6.2.2
Preparing the measuring device
1.
Remove all remaining transport packaging.
2.
Remove any protective covers or protective caps present from the sensor.
3.
Remove stick-on label on the electronics compartment cover.
6.2.3
Mounting the measuring device
WARNING
Danger due to improper process sealing!
‣
Ensure that the inside diameters of the gaskets are greater than or equal to that of the
process connections and piping.
‣
Ensure that the gaskets are clean and undamaged.
‣
Install the gaskets correctly.
1.
Ensure that the direction of the arrow on the nameplate of the sensor matches the flow
direction of the fluid.
2.

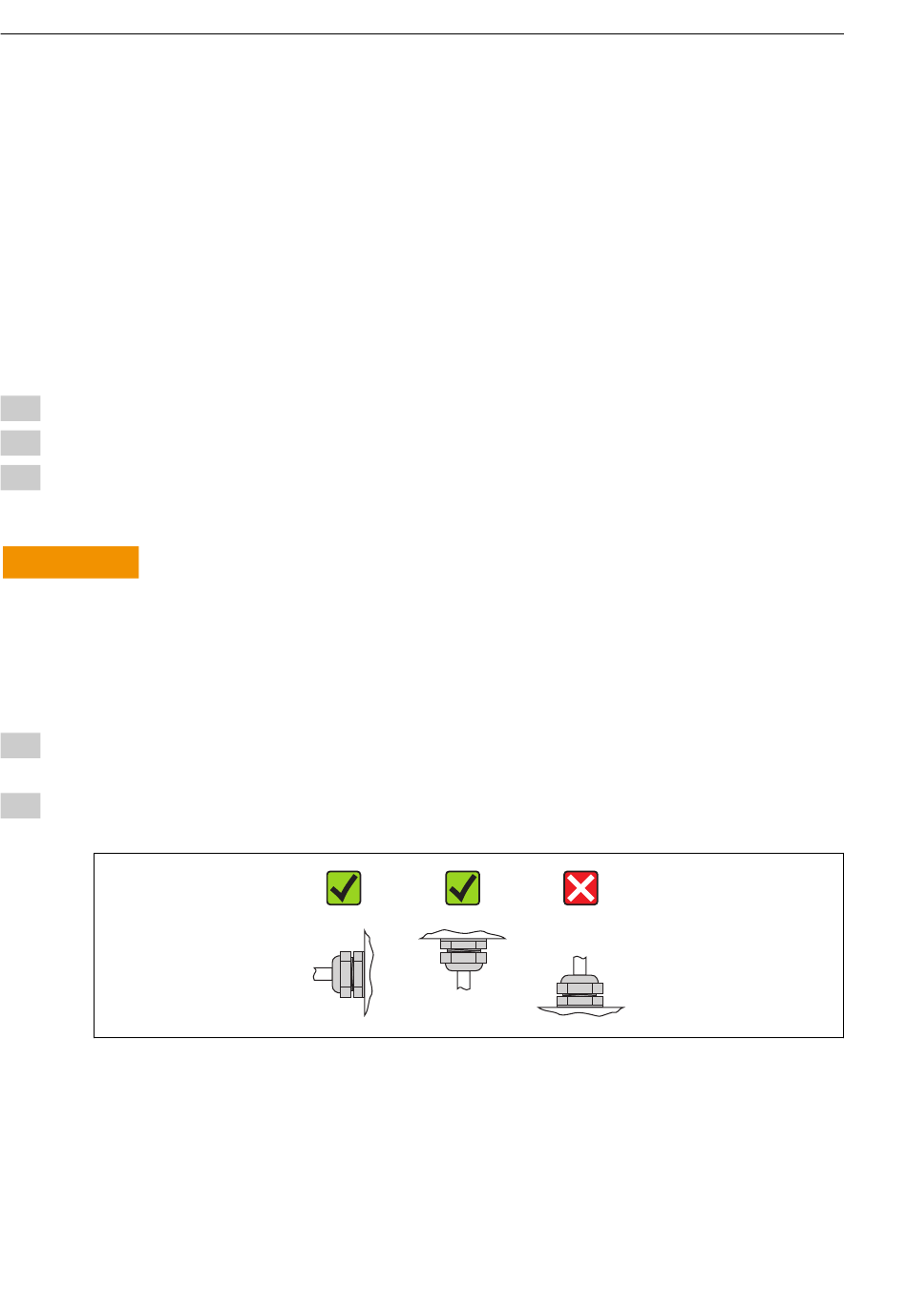

Install the measuring device or turn the transmitter housing so that the cable entries do
not point upwards.
6.2.4
Turning the transmitter housing
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned:
20
Proline Promass F 200
A0013964
Endress+Hauser
