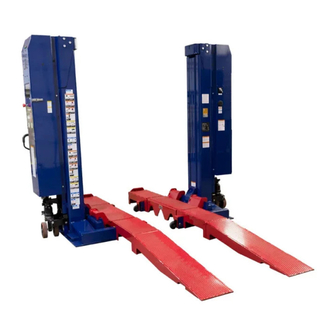

Forklift Adapters CLHM-FLA
For Model CLHM-185W
2311 South Park Rd, Louisville, KY 40219
Email:
sales@challengerlifts.com
Website: www.challengerlifts.com
Office: 800-648-5438 / 502-625-0700 Fax: 502-587-1933
IMPORTANT: READ THIS MANUAL AND THE MANUAL THAT IS
FURNISHED WITH THE COLUMN LIFTS CAREFULLY AND RETAIN FOR
YOUR RECORDS
Rev. 3/7/2017
Advertisement
Table of Contents
Related Manuals for Challenger Lifts CLHM-FLA
Summary of Contents for Challenger Lifts CLHM-FLA
- Page 1 & O NSTALLATION PERATION ANUAL Forklift Adapters CLHM-FLA For Model CLHM-185W 2311 South Park Rd, Louisville, KY 40219 Email: sales@challengerlifts.com Website: www.challengerlifts.com Office: 800-648-5438 / 502-625-0700 Fax: 502-587-1933 IMPORTANT: READ THIS MANUAL AND THE MANUAL THAT IS FURNISHED WITH THE COLUMN LIFTS CAREFULLY AND RETAIN FOR YOUR RECORDS Rev.
-
Page 2: Receiving Inspection
Specifications System Capacity......................15,000 Lbs Maximum Lift Height ....................68” System Height ......................7 5/16” Lift Platform Width ....................12” Level System Length ....................81 3/4” Ramp Length ......................50 3/8” System Weight ......................682 lbs.. CLHM-FLA-IOM (CLHM-185W) Rev. 3/7/2017... -
Page 3: Component Identification
Component Identification CLHM-FLA-IOM (CLHM-185W) Rev. 3/7/2017... - Page 4 15. NEVER lift a forklift if the counter weight, mast or batteries have been removed. The vehicle weight center will be severely affected. Failure to understand and obey this warning may result in personal injury and / or property damage. CLHM-FLA-IOM (CLHM-185W) Rev. 3/7/2017...
-
Page 5: Installation Instructions
Select the round button with a number inside it that matches the current lift unit’s position. Once the position is selected the position button will turn green to indicate the selection. CLHM-FLA-IOM (CLHM-185W) Rev. 3/7/2017... - Page 6 11) Raise the Lift Carriages about 10 inches and install the Lift Platforms as shown in the figure below. Ensure the Lift Platforms are centered on the carriage and that they are properly hooked on the carriage, and the Lift Platform Tabs are fully inserted into the appropriate Carriage Slots. CLHM-FLA-IOM (CLHM-185W) Rev. 3/7/2017...
- Page 7 After adjusting, lower the bases of each lift unit to the ground. Ensure the lifts and adaptors are properly aligned. Center to Center Tread Measurement CLHM-FLA-IOM (CLHM-185W) Rev. 3/7/2017...
- Page 8 Support Platform must set on the lift unit’s base leg and the front wheel must protrude from the Tire Support Platform such that the platform is retained on the base of the lift unit. The Tire Support Platforms should be back as far as possible on the lift unit’s base legs. CLHM-FLA-IOM (CLHM-185W) Rev. 3/7/2017...
- Page 9 17) Once the check is made in step 16 above, the forklift is stable, and forklift is securely positioned, then the forklift can be raised. Not ensuring that the forklift is stable can result in loss of load, which can result in personal injury and/or property damage. CLHM-FLA-IOM (CLHM-185W) Rev. 3/7/2017...
-
Page 10: Structural Inspection
(which could include severe injury or death to personnel). For more information about the CLHM lift units, refer to the manual that was furnished with the CLHM lift units. CLHM-FLA-IOM (CLHM-185W) Rev. 3/7/2017...
