Panorama
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach you gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Tested by:
919-399k
®

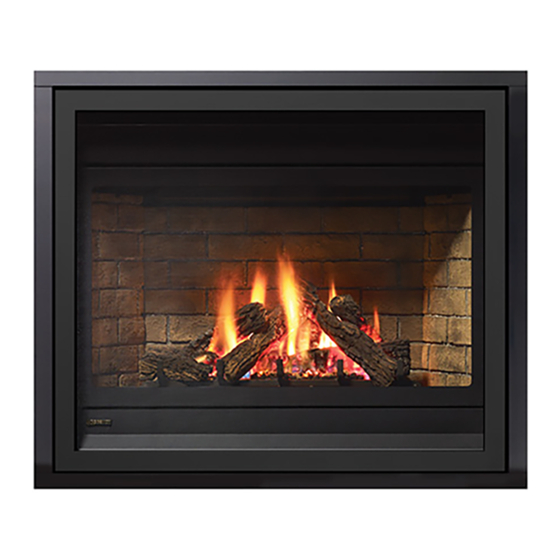

Direct Vent Gas Fireplace
MODELS:
P36-NG10 Natural Gas
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
REGENCY FIREPLACE PRODUCTS. 6988 Venture St., Delta, BC Canada, V4G 1H4
P36 Zero Clearance
P36-LP10 Propane
Owners & Installation Manual
P36 Video
01.17.23
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products Panorama P36
Summary of Contents for Regency Fireplace Products Panorama P36
- Page 1 - Installation and service must be performed by a qualified installer, service agency or the gas supplier. Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. 919-399k REGENCY FIREPLACE PRODUCTS. 6988 Venture St., Delta, BC Canada, V4G 1H4 01.17.23...
- Page 2 Congratulations! You are the owner of a state-of-the-art Gas Fireplace by REGENCY FIREPLACE PRODUCTS. The P36 has been designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch. The model P36 has been approved by Warnock Hersey / Intertek for both safety and efficiency.
- Page 3 INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE This Regency product has been tested and listed by Intertek as a Vented Gas Fireplace Heater to the following standards: ANSI Z21.88 • CSA 2.33 and CSA 2.17. This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
-
Page 4: Table Of Contents
table of contents MA Code - CO Detector ..........6 Pilot Adjustment ............44 Gas Pipe Pressure Testing ........44 Dimensions SIT 829 Valve Description ........44 Conversion from NG to LP ........45 Unit Dimensions with Vignette and Vignette Optional Enamel Panels ...........46 Finishing Trim ............7 Optional Brick Panels ..........47 Unit Dimensions with Safety Screen (#515-929) and Oak Log Set Installation ...........48... - Page 5 safety decal This is a copy of the label that accompanies each P36 Zero Clearance Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review. The safety label is located on the front inside base of the unit.
-
Page 6: Ma Code - Co Detector
installation MA Code - CO Detector (for the State of Massachusetts only) 5.08: Modifications to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:... -
Page 7: Dimensions
dimensions UNIT DIMENSIONS WITH VIGNETTE AND VIGNETTE FINISHING TRIM 2 " 2" (953mm) 1-1/4” (26mm) 4 " (324mm) Optional 3 sided Vignette finishing trim (not shown) 38" (965mm) W x 33-3/4" (838mm) H 4 " (375mm) UNIT DIMENSIONS WITH SAFETY SCREEN (#515-929) AND OPTIONAL LOUVERS 36"... -
Page 8: Gas Installation Checklist
installation GAS INSTALLATION CHECKLIST REGENCY GAS INSTALLATION CHECKLIST This general checklist does not contain all pertinent installation details or specifics and does not supersede the guidelines in this manual. Your Regency dealer/installer should use it in conjunction with manual instructions. Please follow all local codes and jurisdictions in authority. Customer: Date Installed: Install Address:... - Page 9 installation REGENCY GAS INSTALLATION CHECKLIST Finishing If applicable, is only noncombustible material installed in the noncombustible areas? Do clearances meet installation and manual requirements? Do the mantels and/or projections comply with the installation manual? If applicable, was the solid fuel fireplace warning plate installed? Appliance Media Setup Do commands from the remote or wall switch light the pilot and main burner? Are the burner media/log set, glass door, and screen installed per instructions in the manual?
-
Page 10: Lighting Procedure
owner's information LIGHTING PROCEDURE IMPORTANT: The remote control system supplied with this appliance has 3. After approximately 4 seconds the spark ignition system will spark for 60 several options for starting/operating the appliance using the power button seconds to light the pilot. and ON/OFF key on the hand-held transmitter. -
Page 11: Proflame I Remote Control Operating Instructions
owner's information PROFLAME II REMOTE CONTROL OPERATING INSTRUCTIONS PROFLAME I REMOTE CONTROL OPERATING INSTRUCTIONS IMPORTANT:The Proflame Transmitter 2 is an integrated part of the TECHNICAL DATA Proflame 2 System, which consists of these elements: • Proflame 2 Transmitter, to be used in conjunction with: REMOTE CONTROL •... - Page 12 owner's information Temperature indication Display Remote‑Flame Control With the system in the "OFF" position, press the Thermostat Key and The Proflame has six (6) flame levels. With the system on, and the flame the Mode Key at the same time. Look at the LCD screen on the transmit- level at the maximum in the appliance, pressing the Down Arrow Key ter to verify that a C or F is visible to the right of the room temperature once will reduce the flame height by one step until the flame is turned off.
- Page 13 owner's information Smart Thermostat (Transmitter Operation) Remote dimmer control (Light)** The auxiliary function controls the AUX power outlet by the dimmable The Smart Thermostat function adjusts the flame height in accordance light control. To activate this function use the Mode Key (fig. 1) to index to the difference between the set point temperature and the actual room to the AUX icon (fig.
- Page 14 owner's information LOW BATTERY POWER DETECTION Transmitter The life span of the remote control batteries depends on various factors: quality of the batteries used, the number of ignitions of the appliance, the number of changes to the room thermostat set point, etc. When the Transmitter batteries are low, a Battery Icon will appear on the LCD display of the Transmitter (Fig.
-
Page 15: Proflame I Remote Receiver Battery Replacement
owner's information PROFLAME I REMOTE RECEIVER BATTERY REPLACEMENT & BATTERY BACKUP IF 120V POWER IS LOST WITHIN HOME Remote Receiver/Battery Holder Battery Replacement & Battery Back up if 120 volt power is lost witihin home Remote Receiver Battery Replacement How to replace/add the batteries on remote receiver. How to replace/add the batteries on remote receiver (Proflame 1). -
Page 16: Important Message
installation IMPORTANT MESSAGE 3) See general construction and assembly YOUNG CHILDREN SHOULD BE instructions. The appliance and vent should be SAVE THESE CAREFULLY SUPERVISED WHEN enclosed. INSTRUCTIONS THEY ARE IN THE SAME AREA 4) This appliance must be connected to the AS THE APPLIANCE. -
Page 17: Installation Checklist
installation INSTALLATION CHECKLIST CAUTION: 7) We recommend that you plan your installation on Any alteration to the product that causes paper using exact measurements for clearances 1) Locate appliance. Refer to the following sections: sooting or carboning that results in damage and floor protection before actually installing this is not the responsibility of the manufacturer. -
Page 18: Clearances
installation CLEARANCES The clearances listed below are minimum distances unless otherwise stated: A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this fireplace and vent system be installed only in accordance with these instructions. Clearance to Combustibles from: Back 0"... -
Page 19: Mantel Leg Clearances
installation CLEARANCES Min. 6" (152mm) MANTEL LEG CLEARANCES Combustible mantel leg clearances as per diagram: Maximum 1-1/2" projection at 2" minimum clearance. P36-10 Zero Clearance Direct Vent Gas Fireplace |... -
Page 20: Combustible Mantel Clearances
installation COMBUSTIBLE MANTEL CLEARANCES Because of the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of unit are shown in the diagram below. Note: Mantel starts at *1" deep and ends at *12" deep. **For Vignette with Vignette Finishing Trim flush finish, all materials (framing & finishing) below the mantel and the width of the Vignette finishing trim, (37 1/2") must be non-combustible if a lower mantel is desired. -
Page 21: Framing
installation FRAMING 1) Determine the total thickness of facing material (e.g. non combustible plus ceramic tiles) to allow the finished surface to be flush with the front of the unit. Total facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick with Vignette only, Vignette + Vignette Finishing Trim Stepped Finish and Safety Screen and Louvers. -
Page 22: Framing With Vignette Faceplate/Vignette
installation FRAMING WITH FRAMING WITH VIGNETTE FRAMING WITH VIGNETTE FACEPLATE/VIGNETTE FACEPLATE & FINISHING TRIM LOUVERS AND SAFETY SCREEN FINISHING TRIM, STEPPED FINISH FINISHED FLUSH Frame in the enclosure for the unit with framing Frame in the enclosure for the unit with framing material. -
Page 23: Finishing
installation FINISHING IMPORTANT FINISHING DETAIL NOTE: Before placing unit into final position - it is important to know the total thickness / height of finished hearth (tile, carpet, etc.) The base of the fireplace should be level or higher than the fin- ished hearth height. -
Page 24: Wall Mount On/Off Switch And Remote Receiver Installation
installation WALL MOUNT ON / OFF SWITCH AND REMOTE RECEIVER INSTALLATION Required for all installations - including Proflame remote controls IMPORTANT INSTALLATION NOTE: The Receiver must be placed inside the supplied (Low Voltage) junction type wall box and installed into the wall only. DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE. -
Page 25: Unit Assembly Prior To Installation
installation UNIT ASSEMBLY 2) Fold out the two nailing strips on each side. 1) Mount Top Facing Support using the 3 sup- plied screws into the three pre-punched PRIOR TO INSTALLATION screw holes on the top front of the unit. Use hole positions A, B, or C depending on The Top Facing Support, the Side Nailing Strips your facing depth. -
Page 26: Exterior Vent Termination Locations
installation EXTERIOR VENT TERMINATION LOCATIONS Minimum Clearance Requirements Canada Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm) Clearance to window or door that may be opened 12"(30cm) 9" (23cm) Clearance to permanently closed window Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm) 18"(46cm) 18"(46cm) from the center line of the terminal (check with the local code) -
Page 27: Venting
installation VENTING DIRECT VENT SYSTEM (FLEX) HORIZONTAL TERMINATIONS ONLY These venting systems, in combination with the P36 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in the "Exterior Vent Termination Locations" section. Regency Direct Vent (Flex) System Termination Kit (Part # 946-515) includes all the parts needed to install the P36 with a maximum run of 4 feet. -
Page 28: 4" X 6-5/8" Rigid Pipe Cross Reference Chart
installation 4” X 6-5/8” RIGID PIPE CROSS REFERENCE CHART Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI. Note: Olympia Ventis DV is only approved for certain models. See list of approved models in cross-reference chart. 4"... - Page 29 installation Description Simpson *Selkirk *American Metal *Metal-Fab™ *Security *ICC Excel *Olympia Direct Vent Pro ® Direct Temp™ Products® Sure Seal Secure- Vent® Direct Ventis DV*** Amerivent Direct Attic Insulation Shield 12" 46DVA-IS 4DAIS12 4DIS SV4RSA VDV-AIS04 4DAIS12 TM-4AS Attic Insulation Shield - Cold Climates 36"...
-
Page 30: Rigid Pipe Venting Systems
Regency Riser Vent terminal are certified for installations using Regency venting systems as well as any specific chimney systems listed in this manual. AstroCap is a proprietary trademark of Regency Fireplace Products. 30 | P36-10 Zero Clearance Direct Vent Gas Fireplace... -
Page 31: Rigid Pipe Venting Arrangements
installation RIGID PIPE VENTING ARRANGEMENTS HORIZONTAL TERMINATIONS REGENCY DIRECT VENT SYSTEM (FLEX) (Propane & Natural Gas) The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90 elbow (two 45 elbows equal one 90 elbow). Note: Must use optional rigid pipe adaptor (Part # 510-994) when using Rigid Pipe venting systems. All Rigid Pipe Systems 4" inner diameter 6-5/8" outer diameter... - Page 32 installation Horizontal Venting with Two (2) 90 Elbows One 90 elbow = Two 45 elbows. Option H + H1 W i t h t h e s e o p t i o n s , 0' Min. 2' Max. maximum total pipe length 1' Min.
- Page 33 installation RIGID PIPE VENTING ARRANGEMENTS VERTICAL TERMINATIONS (Propane & Natural Gas) The shaded area in the diagram shows all allowable combinations of straight vertical and elbow, with Rigid Pipe vent systems for Pro- offset to vertical terminations, using two 90 pane and Natural Gas.
- Page 34 installation • Vent must be supported at offsets. • Firestops are required at each floor level and whenever passing through a wall. • Maintain clearances to combustibles. Note: Must use optional rigid pipe adaptor when using rigid vent systems (Part # 510- 994).
- Page 35 installation Vertical Venting with Two (2) 90 Elbows One 90 elbow = Two 45 elbows. Option V + V1 With these options, 0' Min. 2' Max. 1' Min. max. total pipe length 1' Min. 4' Max. 2' Min. is 30 feet with min. of 6 feet total vertical 2' Min.
-
Page 36: Vertical Termination - Co-Linear Flex System Into A Masonry Chimney
installation VERTICAL TERMINATION - CO-LINEAR FLEX SYSTEM INTO A MASONRY CHIMNEY THE APPLIANCE MUST NOT BE The Air Intake pipe must be attached to the inlet air collar of the termination cap. CONNECTED TO A CHIMNEY FLUE SERVING A SEPARATE SOLID FUEL BURNING APPLIANCE. -
Page 37: Venting Arrangements - Vertical Termination
installation VENTING ARRANGEMENTS - VERTICAL TERMINATION with Co-linear Flex System for both Residential & Manufactured Homes into Masonry Fireplaces Horizontal Distance (Feet) The shaded area in the diagrams show the allowable vertical terminations. P36-10 Zero Clearance Direct Vent Gas Fireplace |... -
Page 38: Dura-Vent Horizontal Terminations
installation DURA-VENT HORIZONTAL b) Horizontal runs of vent must be supported every three feet. Wall straps are available TERMINATIONS for this purpose. Install the vent system according to the 5) Mark the wall for a 10" x 10" square hole. The manufacturer's instructions included with center of the square hole should line up with the components. -
Page 39: Dura-Vent Vertical Terminations
installation cap assembly into the outer wall of the vent 4) Assemble the desired lengths of pipe and pipe. Use the two sheet metal screws provided elbows. Ensure that all pipes and elbow con- to connect the strips to the pipe section. See nections are in the fully twist-locked position Diagram 6. -
Page 40: Direct Vent System (Flex) Installation Procedures
installation N o t e : T o m a k e Note that for steep roof pitches, the vertical height must be increased. A poor draft, or down drafting t h e i n s t a l l a t i o n 4) Separate the 2 halves of the wall thimble and a l l can result from high wind conditions near big trees... - Page 41 installation VERTICAL TERMINATION 4" X 6-7/8" VENTING - VERTICAL FLEX VENT KIT (946-755) 1. Maintain the 1-½” (38 mm) clearance (air space) to combustibles when 11. Secure inner flex pipe to pipe adaptor by using Mill-Pac over the adaptor. passing through ceilings, walls, floors, enclosures, attic rafters or other Slide the inner pipe over adaptor and secure with 3 screws.
-
Page 42: Vertical Flue Extension Kit
installation VERTICAL FLUE EXTENSION KIT (PART #946-756) VERTICAL FLUE EXTENSION KIT (PART # 946-756) 20 foot (6.1 m) Flex pipe Extension (Used in conjunction with the 946-755 Vertical Flex kit and 948-367/P flex 4" (102 mm) inner to flex adaptor). pipe 20ft. -
Page 43: System Data
installation HIGH ELEVATION P36-NG10 System Data P36-LP10 System Data For 0 to 4500 feet altitude For 0 to 2000 feet altitude This unit is approved in Canada for altitude 0 to Burner Inlet Orifice Sizes: #37 Burner Inlet Orifice Sizes: #52 4500 ft. -
Page 44: Pilot Adjustment
installation GAS PIPE PRESSURE PILOT ADJUSTMENT SIT 829 VALVE DESCRIPTION TESTING 1) Gas on/off knob Periodically check the pilot flames. Correct 2) Electronically Operated Hi/Lo flame pattern has three strong blue flames: 1 The appliance must be isolated from the gas sup- 3) Pilot Adjustment flowing around the thermopile, 1 around the ply piping system by closing its individual manual... -
Page 45: Conversion From Ng To Lp
installation CONVERSION FROM NG TO LP FOR P36-10 USING SIT 829 NOVA GAS VALVE Conversion from NG to LPG for P36D-10 / P36-10 THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !! Remove burner orifice with a 1/2"... -
Page 46: Optional Enamel Panels
installation P36D / P36DE/ P36E OPTIONAL ENAMEL PANELS OPTIONAL ENAMEL PANELS Before installation, panels must be handled and cleaned as per instructions noted below: Black Enamel Panels • Black Enamel panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time. Claims for dam- age after installation will not receive consideration. -
Page 47: Optional Brick Panels
installation OPTIONAL BRICK PANELS 5. Install the 2 brick retaining clips, one on each side. 1. Remove faceplate, safety screen if already installed. 2. Undo the bottom 2 door latches and open and remove glass door. Remove logs. Note: The logs must not be in the unit. 3. -
Page 48: Oak Log Set Installation
GAS FIREPLACE installation LOG SET INSTALLATION OAK LOG SET INSTALLATION Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with the pilot operation. The gas log kit (Part # 512-930) contains the following: Place Log 02-49 on the rear log support pins with the flat side to the back. - Page 49 GAS FIREPLACE installation Position Log 02-53 across the cutouts in Logs 02-49 and Sit Log 02-50 on the front left side of the burner. Push the 02-51 with the notch on the left side of the log fitting into back of the log against the 2 front brackets with the notch the 2nd grate tab.
- Page 50 GAS FIREPLACE installation 10) Place the embers on the front of the burner tray in the Place Log 02-52 between Logs 02-51 and 02-49 and on places shown on the photo. the indentation on Log 02-54. The bottom right end sits behind the rear grate tab.
-
Page 51: Standard Flush Door
installation STANDARD FLUSH DOOR The standard flush door comes with a black frame. To install the frame, Be careful that the glass gasket does not roll up; there must be a gap simply hook the top door flange onto the top of the unit and swing the between the gasket and the door lip to ensure that the door sits securely door towards the unit, see Diagram 1. -
Page 52: Vignette Faceplate And Safety Screen Installation
installation VIGNETTE FACEPLATE AND SAFETY SCREEN INSTALLATION Vignette faceplate and safety screen installation 1. Hook the outer Vignette frame onto the unit. Brackets on the frame hook on to tabs in the unit. Note: Use the inner slots for the P36/P36E units and the outer slots for the P36D. P36D P36/P36E Adjustable Mounting Brackets are in incre-... -
Page 53: Optional Vignette Inlay Installation
installation OPTIONAL VIGNETTE INLAY OPTIONAL VIGNETTE INLAY INSTALLATION NOTE: Inlay not exactly as shown below. 1. Remove Inner Vignette Frame from unit if already installed. 5. Secure the Inlay in position with supplied brackets, washers, and nuts as shown. 2. Line up the inlay top bracket in the space between the safety screen frame and Vignette Frame. -
Page 54: Vignette Finishing Trim Installation
installation VIGNETTE FINISHING TRIM VIGNETTE FINISHING TRIM INSTALLATION *If finishing the unit Flush with Vignette Finishing Trim - remove top nailing strip from unit if installed–use nailing *If finishing the unit Flush with Vignette Finishing Trim - remove top nailing strip from unit if installed–use nailing strip supplied with top trim piece. strip supplied with top trim piece. -
Page 55: Optional Finishing Trim
installation OPTIONAL FINISHING TRIM OPTIONAL FINISHING TRIM NOTE: Remove the safety screen, Vignette Faceplate and glass door prior to installing the Finishing Trim. Install the Finishing Trim sides as shown in the diagram, line up the holes in the side trim with the holes in the firebox side using the Phillips screws provided. -
Page 56: Safety Screen Installation
installation SAFETY SCREEN INSTALLATION - SAFETY SCREEN INSTALLATION - MUST BE USED WITH OPTIONAL LOUVERS MUST BE USED WITH OPTIONAL LOUVERS 1. Hook the safety screen frame over the glass door frame. 2. Gently lower screen on to glass door frame–two (2) magnets located on inside lower part of the screen frame will secure the screen to the glass door frame. 3. To remove–reverse steps. Magnet locations OPTIONAL FLUSH LOUVERS INSTALLATION - USED WITH SAFETY SCREEN # 515-929 07.21.15 919-558a 1. -
Page 57: Wall Thermostat (Optional)
installation WALL THERMOSTAT DC SPARK IGNITER (OPTIONAL) BATTERY INSTALLATION A wall thermostat may be installed if desired, connect the wires as per the wiring diagram. Install the supplied battery into the DC Sparker Box Use the table below to determine the maximum by opening the battery compartment. -
Page 58: Wiring Diagrams
installation WIRING DIAGRAMS This heater does not require a 120V A.C. supply NOTE: Even if the fan is not purchased with the (Do not cut the ground terminal off under unit, it is still a good idea to bring power to for operation. -
Page 59: Optional Wall Thermostat Installation
installation OPTIONAL WALL THERMOSTAT INSTALLATION A wall thermostat may be installed if desired. Recommended: The wall thermostat should be mounted beside the Remote/Unit Receiver which comes standard with the appliance. 1) Run wires from thermostat into the unit using the appropriate wire gauge-see chart below. Thermostat Wire Table CAUTION Recommended Maximum Lead Length... -
Page 60: Optional Fan Installation
installation OPTIONAL FAN INSTALLATION OPTIONAL FAN INSTALLATION 120 Volt AC power is needed for the fan. The fan can be hard wired if desired. The outlet should be installed in the recep- tacle box on the left hand side by a qualified electrician. The neutral (wider) slot of the polarized outlet should be at the top. -
Page 61: Operating Instructions
operating instructions OPERATING LIGHTING SHUTDOWN INSTRUCTIONS PROCEDURE PROCEDURE 1) Read and understand these instructions before 1. Press "OFF" on the remote or slide receiver switch IMPORTANT operating this appliance. from remote to "OFF". Prior to igniting or re ignit- ing the pilot, remove the 2) Check to see that all wiring is correct and 2. -
Page 62: Copy Of The Lighting Plate Instructions
operating instructions COPY OF THE LIGHTING PLATE INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING POUR VOTRE SÉCURITÉ – À LIRE AVANT LA MISE EN MARCHE WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 63: First Fire
operating instructions AERATION FIRST FIRE NORMAL OPERATING SOUNDS ADJUSTMENT OF GAS APPLIANCES The first fire in your fireplace is part of the paint curing process. To ensure that the paint is properly The air shutter can be adjusted by moving the It is possible that you will hear some sounds from cured, it is recommended that you burn your adjusting wire up or down. -
Page 64: Maintenance
maintenance MAINTENANCE GLASS GASKET 3. Check for evidences of excessive condensation, such as water droplets forming in the inner INSTRUCTIONS liner, and subsequently dripping out the joints, If the glass gasket requires replacement use a Continuous condensation can cause corrosion tadpole glass gasket for the Flush Front (Part # 1. -
Page 65: Removing Valve
maintenance INSTALLING VALVE REMOVING VALVE Remove 10 screws securing the valve tray assembly in place (Diagram 3) and then lift the entire assembly out (Diagram 4). 1. Shut off the gas and electrical supply. 1. Attach the valve to the valve bracket with the 4 (m5x8 metric) screws provided. -
Page 66: Gas Maintenance
maintenance Gas Maintenance GAS MAINTENANCE Recommended Annual Routine Maintenance for Gas Fireplaces, Stoves and Inserts In order for your Regency appliance to continue to provide comfort to your home periodic maintenance must be performed to ensure it is operating at peak efficiency. The items in the list should be checked by a licensed gas service technician during the annual service check. Your unit may require more frequent maintenance checks if you notice any changes in how it operates. Operational changes to look for can include, but are not limited to, extended start up time, increased fan noise, residue/carbon build up, white build up on the glass/firebox, increased operating noise etc. Should any of these or other conditions arise, discontinue use and schedule a service check with your local licensed gas technician. The list below shows items your licensed service technician will need to check and service at least annually. Clean Inspect Check • Glass • Pilot assembly • Voltage on thermocouple/thermopile (mil- • Interior bricks / panels • Burner livolt models) • Burner ports & burner air shutter • Pressure relief gaskets/doors • Ohms reading on flame sense (electronic •... -
Page 67: Main Assembly
parts list MAIN ASSEMBLY Part # Description Part # Description Burner 948-045 Chain 438-917 Fan Assembly 120V 948-025 Spring 910-428 Duplex Receptacle 910-331/P Replacement Fan Motor (120 V) 910-429 Box - Receptacle 510-994 Rigid Pipe Adaptor 910-430 Cover - Receptacle 512-518 Door Frame Assembly C/W Glass &... - Page 68 parts list MAIN ASSEMBLY 68 | P36-10 Zero Clearance Direct Vent Gas Fireplace...
-
Page 69: Burner Assembly & Log Set
parts list BURNER ASSEMBLY & LOG SET Part # Description 515-574/P Valve Assy - Natural Gas 515-576/P Valve Assy - Propane Valve Tray - NG/LP 430-055 Gasket - Valve Access Plate 910-578 SIT Valve 829 - NG 910-580 SIT Valve 829 - LP Valve Bracket Firebox Base 910-038/P... -
Page 70: Vignette Faceplate And Finishing Trim
parts list VIGNETTE FACEPLATE AND FINISHING TRIM Part # Description 515-922 Vignette Platinum 515-923 Vignette Black Chrome 515-924 Vignette Black 515-926 Vignette Tuscan Sunset 515-918 Vignette Door Inlay Black Chrome 515-919 Vignette Door Inlay Metallic Black 515-920 Vignette Door Inlay Tuscan Sunset 515-928 Vignette Finishing Trim w/NCB Not Shown... -
Page 71: Safety Screen And Louvers
parts list SAFETY SCREEN AND LOUVERS Part # Description 510-986 3 Sided Finishing Trim 510-922 Flush louvers black 515-929 Safety Screen 948-223 Regency Logo Plate ® P36-10 Zero Clearance Direct Vent Gas Fireplace |... -
Page 72: Warranty
warranty Limited Lifetime Warranty FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U.S., Inc. (for U.S. customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below. - Page 73 warranty At all times FPI reserves the right to inspect reported complaints on location in the field claimed to be defective prior to processing or authorizing of any claim. Failure to allow this upon request will void the warranty. All warranty claims must be submitted by the dealer servicing the claim, including a copy of the Bill of Sale (proof of purchase by you).
- Page 74 warranty Limitations of Liability: The original purchaser’s exclusive remedy under this warranty, and FPI’s sole obligation under this warranty, express or implied, in contract or in tort, shall be limited to replacement, repair, or refund, as outlined above. IN NO EVENT WILL FPI BE LIABLE UNDER THIS WARRANTY FOR ANY INCIDENTAL OR CONSEQUENTIAL COMMERCIAL DAMAGES OR DAMAGES TO PROPERTY.
- Page 75 warranty Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
- Page 77 notes P36-10 Zero Clearance Direct Vent Gas Fireplace |...
- Page 78 notes 78 | P36-10 Zero Clearance Direct Vent Gas Fireplace...
- Page 80 Dealer Name & Address: _______________________________________ ___________________________________________________________ P36 Video Installer: ___________________________________________________ Phone #: ___________________________________________________ Date Installed: _______________________________________________ Serial #: ____________________________________________________ Printed in Canada Panorama, AstroCap, HeatWave and Heat Release are trademarks of Fireplace Products International Ltd. © Copyright 2023, Regency Fireplace Products. All rights reserved.
