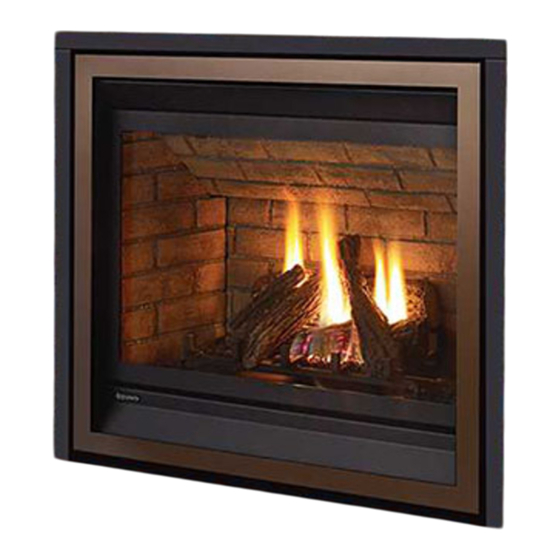

Direct Vent Gas Fireplace
MODELS:
P33-NG10 Natural Gas
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Tested by:
919-392m
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
P33-10 Zero Clearance
®
P33-LP10 Propane
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
6988 Venture St., Delta, BC Canada, V4G 1H4
Owners &
Installation Manual
www.regency-fire.com
03.03.23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Regency Fireplace Products Panorama P33-10
Summary of Contents for Regency Fireplace Products Panorama P33-10
- Page 1 Panorama P33-10 Zero Clearance ® Owners & Direct Vent Gas Fireplace Installation Manual www.regency-fire.com MODELS: P33-NG10 Natural Gas P33-LP10 Propane WARNING FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 2 To the New Owner: Congratulations! You are the owner of a state-of-the-art Gas Fireplace by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. The P33-10 has been designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch. The P33-10 has been approved by Intertek for both safety and efficiency.
- Page 3 INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE This Regency product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following standards: ® VENTED GAS FIREPLACE HEATERS ANSI Z21.88 • CSA 2.33 and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES CSA 2.17. This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufac- tured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
-
Page 4: Table Of Contents
table of contents Safety Label ............5 Gas Pipe Pressure Testing ........42 Conversion from NG to LP ........43 Dimensions Optional Enamel Panels ..........44 Optional Brick Panels ..........45 Unit Dimensions with Vignette and Log Set Installation ..........45 Standard Flush Door ..........46 Vignette Finishing Trim .......... -
Page 5: Safety Label
safety decal SAFETY LABEL This is a copy of the label that accompanies each P33-10 Zero Clearance Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review. The safety label is located on the front inside base of the unit, visible when the bottom louver is open. NOTE: Regency units are constantly being improved. - Page 6 requirements MA Code - CO Detector (for the State of Massachusetts only) 5.08: Modifications to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:...
-
Page 7: Dimensions
dimensions UNIT DIMENSIONS WITH VIGNETTE AND VIGNETTE FINISHING TRIM UNIT DIMENSIONS WITH SAFETY SCREEN (#439-929) AND OPTIONAL LOUVERS Note: Gas connection is from the right hand side of the appliance & electrical connection on left hand side of the appliance. A metal receptacle box is supplied/installed with the appliance to make all 120 volt electrical connections. -
Page 8: Gas Installation Cheklist
dimensions GAS INSTALLATION CHECKLIST REGENCY GAS INSTALLATION CHECKLIST This general checklist does not contain all pertinent installation details or specifics and does not supersede the guidelines in this manual. Your Regency dealer/installer should use it in conjunction with manual instructions. Please follow all local codes and jurisdictions in authority. Customer: Date Installed: Install Address:... - Page 9 installation REGENCY GAS INSTALLATION CHECKLIST Finishing If applicable, is only noncombustible material installed in the noncombustible areas? Do clearances meet installation and manual requirements? Do the mantels and/or projections comply with the installation manual? If applicable, was the solid fuel fireplace warning plate installed? Appliance Media Setup Do commands from the remote or wall switch light the pilot and main burner? Are the burner media/log set, glass door, and screen installed per instructions in the manual?
-
Page 10: Important Message
installation IMPORTANT MESSAGE 3) See general construction and assembly YOUNG CHILDREN SHOULD BE instructions. The appliance and vent should SAVE THESE CAREFULLY SUPERVISED WHEN be enclosed. INSTRUCTIONS THEY ARE IN THE SAME AREA AS THE APPLIANCE. TODDLERS, 4) This appliance must be connected to the The P33-NG10 or P33-LP10 Direct Vent Fireplace YOUNG CHILDREN AND OTHERS MAY specified vent and termination cap to the outside... -
Page 11: Installation Checklist
installation INSTALLATION CAUTION: Any alteration to the product that causes sooting or carboning that CHECKLIST results in damage is not the responsibility of the manufacturer. 1) Locate appliance a) Room location LOCATING YOUR FIREPLACE (Refer to "Locating Your Fireplace" DUCT SYSTEM OPTION Section) b) Clearances to Combustibles Kit #946-556... -
Page 12: Lighting Procedure
owner's information LIGHTING PROCEDURE IMPORTANT: The remote control system supplied with this appliance has 3. After approximately 4 seconds the spark ignition system will spark for 60 several options for starting/operating the appliance using the power button seconds to light the pilot. and ON/OFF key on the hand-held transmitter. -
Page 13: Proflame I Remote Control Operating Instructions
owner's information PROFLAME II REMOTE CONTROL OPERATING INSTRUCTIONS PROFLAME I REMOTE CONTROL OPERATING INSTRUCTIONS IMPORTANT:The Proflame Transmitter 2 is an integrated part of the TECHNICAL DATA Proflame 2 System, which consists of these elements: • Proflame 2 Transmitter, to be used in conjunction with: REMOTE CONTROL •... - Page 14 owner's information Temperature indication Display Remote‑Flame Control With the system in the "OFF" position, press the Thermostat Key and The Proflame has six (6) flame levels. With the system on, and the flame the Mode Key at the same time. Look at the LCD screen on the transmit- level at the maximum in the appliance, pressing the Down Arrow Key ter to verify that a C or F is visible to the right of the room temperature once will reduce the flame height by one step until the flame is turned off.
- Page 15 owner's information Smart Thermostat (Transmitter Operation) Remote dimmer control (Light)** The auxiliary function controls the AUX power outlet by the dimmable The Smart Thermostat function adjusts the flame height in accordance light control. To activate this function use the Mode Key (fig. 1) to index to the difference between the set point temperature and the actual room to the AUX icon (fig.
- Page 16 owner's information LOW BATTERY POWER DETECTION Transmitter The life span of the remote control batteries depends on various factors: quality of the batteries used, the number of ignitions of the appliance, the number of changes to the room thermostat set point, etc. When the Transmitter batteries are low, a Battery Icon will appear on the LCD display of the Transmitter (Fig.
-
Page 17: Proflame I Remote Receiver Battery Replacement
owner's information PROFLAME I REMOTE RECEIVER BATTERY REPLACEMENT & BATTERY BACKUP IF 120V POWER IS LOST WITHIN HOME Remote Receiver/Battery Holder Battery Replacement & Battery Back up if 120 volt power is lost witihin home Remote Receiver Battery Replacement How to replace/add the batteries on remote receiver. How to replace/add the batteries on remote receiver (Proflame 1). -
Page 18: Clearances With Vignette Faceplate
installation CLEARANCES WITH VIGNETTE FACEPLATE The clearances listed below are Minimum Side Wall Clearance 7-1/2" (191mm) distances unless otherwise stated: Minimum Vent Clearances: A major cause of chimney related fires is 2-1/2" (64mm) Horizontal Top failure to maintain required clearances 1-1/2"... -
Page 19: Combustible Mantels
installation COMBUSTIBLE MANTELS Because of the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of unit are shown in the diagram below. Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board. -
Page 20: Framing And Finishing
installation FRAMING AND FINISHING Vertical Termination or IMPORTANT FINISHING DETAIL NOTE: Before Rear Termination- Vignette and Vignette placing unit into final position - it is important to Vertical Rise with Horizontal Finishing Trim - Finished Flush know the total thickness / height of finished hearth Termination (tile, carpet, etc.). - Page 21 installation Non- combustible Rigid Vent Minimum Clearances Vignette + Vignette Finishing Trim Flush Finished Top Header 10" (254mm) 1/2" dia. Hole through (13mm) wall for Dura-Vent Drywall 1-1/2" (38mm) 16-1/2” 4" 3" (102mm) (419mm) (76mm) Minimum Opening for gas connection Flex Vent Minimum Clearances Top Header...
-
Page 22: Wall Mount On / Off Switch And Remote Receiver Installation
installation WALL MOUNT ON / OFF SWITCH AND REMOTE RECEIVER INSTALLATION Required for all installations - including Proflame remote controls IMPORTANT INSTALLATION NOTE: The Receiver must be placed inside the supplied (Low Voltage) junction type wall box and installed into the wall only. DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE. -
Page 23: Unit Assembly Prior To Installation
installation UNIT ASSEMBLY PRIOR TO INSTALLATION NOTE: Top Facing Support & The Top Facing Support, the Side Nailing Strips and If finishing flush with the Vignette Finishing Trim - the 2 Top Standoffs must be correctly positioned Side Nailing Strips remove top nailing strip (facing support) if already and attached to the top before the unit is put into installed and use the nailing strip supplied with... -
Page 24: Exterior Vent Termination Locations
installation EXTERIOR VENT TERMINATION LOCATIONS Minimum Clearance Requirements Canada Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm) Clearance to window or door that may be opened 12"(30cm) 9" (23cm) Clearance to permanently closed window Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm) 18"(46cm) 18"(46cm) from the center line of the terminal (check with the local code) -
Page 25: Regency ® Direct Vent Flex System
installation REGENCY DIRECT VENT FLEX SYSTEM ® Horizontal Terminations Only This venting system, in combination with the P33-10 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock Hersey/ Intertek. The location of the termination cap must conform to the requirements in the "Exterior Vent Terminal Locations" Section . Regency Direct Vent Flex Termination Kit (Part # 946-513) includes all the parts needed to install the P33-10 with a maximum run of 2 ®... -
Page 26: Installation Procedures
installation INSTALLATION PROCEDURES for Regency Direct Vent System (Flex) ® 1) Locate the unit in the framing, rough in the *If this is an outside corner, the minimum distance between the vent and the outside corner is 6" (15cm) with AstroCap termination cap or 12" (30cm) with Dura-Vent gas (preferably on the right side of the unit) and the electrical (Junction block is on the termination cap. -
Page 27: Rigid Pipe Venting Systems
installation RIGID PIPE VENTING SYSTEMS Horizontal or Vertical Terminations The minimum components required for a basic horizontal termination are: AstroCap Horizontal Termination Cap Elbow Rigid Pipe Adaptor Wall Thimble Length of pipe to suit wall thickness (see chart) For siding other than vinyl furring strips may be used, instead of the vinyl siding standoff, to create a level surface to mount the vent terminal. -
Page 28: 4" X 6-5/8" Rigid Pipe Cross Reference Chart
installation 4” X 6-5/8” RIGID PIPE CROSS REFERENCE CHART Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI. Note: Olympia Ventis DV is only approved for certain models. See list of approved models in cross-reference chart. 4"... - Page 29 installation Description Simpson *Selkirk *American Metal *Metal-Fab™ *Security *ICC Excel *Olympia Direct Vent Pro ® Direct Temp™ Products® Sure Seal Secure- Vent® Direct Ventis DV*** Amerivent Direct Attic Insulation Shield 12" 46DVA-IS 4DAIS12 4DIS SV4RSA VDV-AIS04 Attic Insulation Shield 4DAIS12 TM-4AS - Cold Climates 36"...
-
Page 30: Rigid Pipe Venting Arrangements
installation RIGID PIPE VENTING ARRANGEMENTS Vertical Terminations (Propane & Natural Gas) The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one 90 elbow, with rigid pipe vent systems for Propane and Natural Gas. •... - Page 31 installation The P33-10 is approved for a maximum 40 ft. straight vertical, with rigid pipe vent systems for Propane and Natural Gas. The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations with rigid pipe vent systems for Propane and Natural Gas.
- Page 32 installation RIGID PIPE VENTING ARRANGEMENTS Horizontal Terminations REGENCY DIRECT VENT SYSTEM (FLEX) (Propane & Natural Gas) ® This diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45 and one 90 elbow (two 45 elbows equal one elbow).
- Page 33 installation Horizontal Venting with Two (2) 90 Elbows Horizontal Venting with Three (3) 90 Elbows One 90 elbow = Two 45 elbows. One 90 elbow = Two 45 elbows. Option H + H1 With these options, maximum Option H + H1 + With these options, total pipe length is 30 feet maximum total pipe...
- Page 34 installation Horizontal Venting with Three (3) 90 Elbows One 90 elbow = Two 45 elbows. Option V + V1 H + H1 With these options, maximum total pipe 2' Min. 1' Max. 3' Min. 4' Max. length is 30 feet with minimum of 12 feet 3' Min.
- Page 35 installation Vertical Venting with Three (3) 90 Elbows One 90 elbow = Two 45 elbows. Option H + H1 V + V1 With these options, max. total 1' Max. 1' Min. 3' Max. 3' Min. pipe length is 30 feet with min. 2' Max.
-
Page 36: Vertical Termination With Co-Linear Flex System In A Masonry Chimney
installation VERTICAL TERMINATION WITH CO-LINEAR FLEX SYSTEM IN A MASONRY CHIMNEY Masonry chimneys may take various contours which the flexible liner will accommodate. However, THE APPLIANCE MUST NOT BE keep the flexible liner as straight as possible, avoid unnecessary bending. CONNECTED TO A CHIMNEY FLUE SERVING A SEPARATE SOLID FUEL The Air Intake pipe must be attached to the inlet air collar of the termination cap. -
Page 37: Venting Arrangements - Vertical Terminations
installation VENTING ARRANGEMENTS - VERTICAL TERMINATIONS with Co-linear Flex System for both Residential & Manufactured Homes into Masonry Fireplaces Horizontal Distance (Feet) Horizontal Distance (Feet) The shaded area in the diagrams show the allowable verti- cal terminations. Regency P33-10 Zero Clearance Direct Vent Gas Fireplace ®... -
Page 38: Unit Installation With Horizontal Termination
installation UNIT INSTALLATION WITH HORIZONTAL TERMINATION 5) Mark the wall for a 10" x 10" square hole. The Install the vent system according to the Below Grade Snorkel Installation center of the square hole should line up with the manufacturer's instructions included with the centerline of the horizontal pipe. -
Page 39: Unit Installation With Vertical Termination
installation 4) Assemble the desired lengths of pipe and 8) Slide the appliance and vent assembly towards elbows. Ensure that all pipes and elbow the wall carefully inserting the vent pipe into connections are in the fully twist-locked the vent cap assembly. It is important that the position and sealed. -
Page 40: Vertical Termination - 4"X 6-7/8" Venting
installation VERTICAL TERMINATION 4" X 6-7/8" VENTING - VERTICAL FLEX VENT KIT (946-755) 1. Maintain the 1-½” (38 mm) clearance (air space) to combustibles when 11. Secure inner flex pipe to pipe adaptor by using Mill-Pac over the adaptor. passing through ceilings, walls, floors, enclosures, attic rafters or other Slide the inner pipe over adaptor and secure with 3 screws. -
Page 41: Flex Vent Components
installation VERTICAL FLUE EXTENSION KIT (PART #946-756) VERTICAL FLUE EXTENSION KIT (PART # 946-756) 20 foot (6.1 m) Flex pipe Extension (Used in conjunction with the 946-755 Vertical Flex kit and 948-367/P flex 4" (102 mm) inner to flex adaptor). CEILING FIRESTOP/FIRESTOP SPACER pipe 20ft. -
Page 42: Pilot Adjustment
installation GAS PIPE PRESSURE TEST- PILOT ADJUSTMENT P33-NG10 System Data Periodically check the pilot flames. Correct With Flush Glass: flame pattern has three strong blue flames: The appliance must be isolated from the gas 1 flowing around the thermopile, 1 around For 0 to 4500 feet altitude supply piping system by closing its individual the thermocouple and 1 flowing across the... -
Page 43: Conversion From Ng To Lp
installation Conversion from NG to LPG using SIT 829 NOVA Gas Valve CONVERSION FROM NG TO LP For P33-10 Using SIT 829 NOVA Gas Valve THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !! IF IN DOUBT DO NOT DO THIS CONVERSION!! Remove pilot clip below pilot cap. -
Page 44: Optional Enamel Panels
P36D / P36DE/ P36E installation OPTIONAL ENAMEL PANELS OPTIONAL ENAMEL PANELS Before installation, panels must be handled and cleaned as per instructions noted below: Black Enamel Panels • Black Enamel panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time. Claims for dam- age after installation will not receive consideration. -
Page 45: Optional Brick Panels
installation OPTIONAL BRICK OAK LOG SET INSTALLATION PANELS D) 251 A) 250 Read the instructions below 1) Undo the bottom 2 door latches and open carefully and refer to the diagrams. and remove glass door. Remove logs. If logs are broken do not use the unit until they are replaced. -
Page 46: Standard Flush Door
installation 8) Pull off ember size pieces of rock wool and gently place them on the front of the burner tray in the places shown in the photo below. Do not compress the rock wool, leave it loose. Separate platinum embers and place them on the front of the burner on and around the rock wool. -
Page 47: Optional Birch Log Set Installation
installation OPTIONAL BIRCH LOG SET INSTALLATION BIRCH LOG INSTALLATION Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can interfere with pilot operation. Improper positioning of the logs may create carbon build-up and can alter the unit's performance which is not covered under warranty. - Page 48 installation 8. Install Log D - the wider end will rest on the left edge of the burner 11. Final install. tray and the narrower end will rest on Log C Final install Log D position 9. Install Log E - rest one end on Log C and the opposite end on the far 12.
-
Page 49: Wiring Diagrams
installation WIRING DIAGRAMS This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation. (Do not cut the ground terminal off under any circumstances.) NOTE: Even if the fan is not purchased with the unit, it is still a good idea to bring power to the receptacle box (provided with the unit) in case the fan is installed at a later date. -
Page 50: Optional Wall Thermostat Installation
installation OPTIONAL WALL THERMOSTAT INSTALLATION A wall thermostat may be installed if desired. Recommended: The wall thermostat should be mounted beside the Remote/Unit Receiver which comes standard with the appliance. 1) Run wires from thermostat into the unit using the appropriate wire gauge-see chart below. Thermostat Wire Table CAUTION Recommended Maximum Lead Length... -
Page 51: Installing The Optional Fan
installation INSTALLING THE OPTIONAL FAN OPTIONAL FAN INSTALLATION 120 Volt AC power is needed for the fan. The fan can be hard wired if desired. The outlet should be installed in the recep- tacle box on the left hand side by a qualified electrician. The neutral (wider) slot of the polarized outlet should be at the top. -
Page 52: Vignette Faceplate And Safety Screen Install
P33/P33E installation VIGNETTE FACEPLATE AND SAFETY SCREEN INSTALL VIGNETTE FACEPLATE AND SAFETY SCREEN INSTALL Install safety screen assembly by inserting tabs on assembly Hook tabs of Vignette frame onto unit in locations shown into slots on installed Vignette frame (see below). Screen below. -
Page 53: Optional Vignette Finishing Trim
installation OPTIONAL VIGNETTE FINISHING TRIM VIGNETTE FINISHING TRIM *If fi nishing the unit Flush with Vignette Finishing Trim - remove top nailing strip from unit if installed–use nailing strip supplied with top trim piece. Side nailing strips are bent around side trim piece in fl ush fi nish application. NOTE: Remove the safety screen, Vignette Faceplate (P33 units Install the lower fi... -
Page 54: Optional Vignette Inlay Installation
installation OPTIONAL VIGNETTE INLAY OPTIONAL VIGNETTE INLAY INSTALLATION NOTE: Inlay not exactly as shown below. 1. Remove Inner Vignette Frame from unit if already installed. 5. Secure the Inlay in position with supplied brackets, washers, and nuts as shown. 2. Line up the inlay top bracket in the space between the safety screen frame and Vignette Frame. -
Page 55: Optional Finishing Trim
installation OPTIONAL FINISHING TRIM OPTIONAL FINISHING TRIM NOTE: Remove the safety screen, Vignette Faceplate (P33 units only: remove 2 screws securing lower legs of Faceplate) and glass door prior to installing the Finishing Trim. Install the Finishing Trim sides as shown in the diagram, line up the holes in the side trim with the holes in the firebox side. -
Page 56: Safety Screen Installation
installation SAFETY SCREEN INSTALLATION - SAFETY SCREEN INSTALLATION - MUST BE USED WITH OPTIONAL LOUVERS MUST BE USED WITH OPTIONAL LOUVERS 1. Hook the safety screen frame over the glass door frame. 2. Gently lower screen on to glass door frame–two (2) magnets located on inside lower part of the screen frame will secure the screen to the glass door frame. 3. To remove–reverse steps. Magnet locations OPTIONAL FLUSH LOUVERS INSTALLATION - 07.21.15 919-558a 3. Install top louver by hooking louver on to brackets installed in Step 1. USED WITH SAFETY SCREEN # 439-929 1. -
Page 57: Copy Of The Lighting Plate Instructions
operating instructions COPY OF THE LIGHTING PLATE INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING POUR VOTRE SÉCURITÉ – À LIRE AVANT LA MISE EN MARCHE WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 58: Operating Instructions
operating instructions OPERATING LIGHTING SHUTDOWN INSTRUCTIONS PROCEDURE PROCEDURE 1) Read and understand these instructions before 1. Press "OFF" on the remote or slide receiver switch IMPORTANT operating this appliance. from remote to "OFF". Prior to igniting or re igniting the pilot, remove the glass door. 2) Check to see that all wiring is correct and 2. -
Page 59: Aeration Adjustment
maintenance AERATION NORMAL OPERATING SOUNDS MAINTENANCE INSTRUCTIONS ADJUSTMENT OF GAS APPLIANCES 1) Always turn off the gas valve before cleaning. Obturateur For relighting, refer to lighting instructions. Keep The air shutter can be adjusted by moving the It is possible that you will hear some sounds from d'air the burner and control compartment clean by adjusting wire up or down. -
Page 60: General Vent Maintenance
maintenance GENERAL VENT THERMOPILE/ WARNING: Do not operate the MAINTENANCE THERMOCOUPLE appliance with the glass panels removed, cracked or broken. Conduct an inspection of the venting system semi- 1) Remove faceplate, safety screen and glass door. Replacement of the glass panels annually. -
Page 61: Removing Valve
maintenance REMOVING VALVE 10. Remove 10 screws securing the valve tray as- INSTALLING VALVE sembly in place (Diagram 3) and then lift the entire assembly out (Diagram 4). 1. Shut off the gas and electrical supply. 1. Attach the valve to the valve bracket with the 4 screws provided. -
Page 62: Gas Appliance Maintenance
maintenance Gas Maintenance GAS APPLIANCE MAINTENANCE Recommended Annual Routine Maintenance for Gas Fireplaces, Stoves and Inserts In order for your Regency appliance to continue to provide comfort to your home periodic maintenance must be performed to ensure it is operating at peak efficiency. The items in the list should be checked by a licensed gas service technician during the annual service check. Your unit may require more frequent maintenance checks if you notice any changes in how it operates. Operational changes to look for can include, but are not limited to, extended start up time, increased fan noise, residue/carbon build up, white build up on the glass/firebox, increased operating noise etc. Should any of these or other conditions arise, discontinue use and schedule a service check with your local licensed gas technician. The list below shows items your licensed service technician will need to check and service at least annually. Clean Inspect Check • Glass • Pilot assembly • Voltage on thermocouple/thermopile (mil- • Interior bricks / panels • Burner livolt models) • Burner ports & burner air shutter • Pressure relief gaskets/doors •... -
Page 63: Main Assembly
parts list MAIN ASSEMBLY Part # Description Part # Description 948-247 Door Handle Part # Description Thermodisc Bracket 910-142 Thermodisc - Fan Auto ON/OFF 910-428 Duplex Receptacle 946-556 Optional Heat Wave Duct Kit 910-429 Box - Receptacle 946-004 Junction Box 910-430 Cover - Receptacle 946-000... - Page 64 parts list HEAT WAVE DUCT KIT #946-556 BRICK PANEL SET FAN ASSEMBLY 64 | Regency P33-10 Zero Clearance Direct Vent Gas Fireplace ®...
-
Page 65: Burner & Log Assembly
parts list BURNER & LOG ASSEMBLY Part Description Part Description 430-055 Gasket - Valve Access Plate - NG/LP 911-032 Valve/Remote Wiring Harness 439-574/P Valve Assy - Natural Gas 433-020 Pilot Shield 439-576/P Valve Assy - Propane 910-578 S.I.T. Valve - NG/LP *Not available as a replacement part. -
Page 66: Vignette Faceplate And Finishing Trim
parts list VIGNETTE FACEPLATE AND FINISHING TRIM Part # Description Part # Description 439-922 Vignette Faceplate Platinum 439-928 Vignette Finishing Trim 439-923 Vignette Faceplate Black Chrome 439-929 Mesh Guard 439-924 Vignette Faceplate Black 439-926 Vignette Faceplate Tuscan Sunset 439-948 Vignette Door Inlay Black Chrome 439-949 Vignette Door Inlay Mt. -
Page 67: Safety Screen And Louvers
parts list SAFETY SCREEN AND LOUVERS Part # Description 439-920 Flush louvers black 439-929 Safety Screen 948-223 Regency Logo Plate ® Regency P33-10 Zero Clearance Direct Vent Gas Fireplace ®... -
Page 68: Warranty
warranty Gas Product Warranty Limited Lifetime Warranty FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U.S., Inc. (for U.S. customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below. - Page 69 warranty At all times FPI reserves the right to inspect reported complaints on location in the field claimed to be defective prior to processing or authorizing of any claim. Failure to allow this upon request will void the warranty. All warranty claims must be submitted by the dealer servicing the claim, including a copy of the Bill of Sale (proof of purchase by you).
- Page 70 warranty Limitations of Liability: The original purchaser’s exclusive remedy under this warranty, and FPI’s sole obligation under this warranty, express or implied, in contract or in tort, shall be limited to replacement, repair, or refund, as outlined above. IN NO EVENT WILL FPI BE LIABLE UNDER THIS WARRANTY FOR ANY INCIDENTAL OR CONSEQUENTIAL COMMERCIAL DAMAGES OR DAMAGES TO PROPERTY.
- Page 71 warranty Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
- Page 72 warranty 72 | Regency P33-10 Zero Clearance Direct Vent Gas Fireplace ®...
- Page 73 notes Regency P33-10 Zero Clearance Direct Vent Gas Fireplace ®...
- Page 74 notes 74 | Regency P33-10 Zero Clearance Direct Vent Gas Fireplace ®...
- Page 76 Installer: Please complete the following information Dealer Name & Address: _______________________________________ ___________________________________________________________ Installer: ___________________________________________________ Phone #: ___________________________________________________ Date Installed: _______________________________________________ Serial #: ____________________________________________________ Printed in Canada Regency, Panorama, AstroCap are trademarks of FPI Fireplace Products International Ltd. © Copyright 2023, FPI Fireplace Products International Ltd. All rights reserved.
