Eclipse Eight Drawer
Assembly Instructions
8

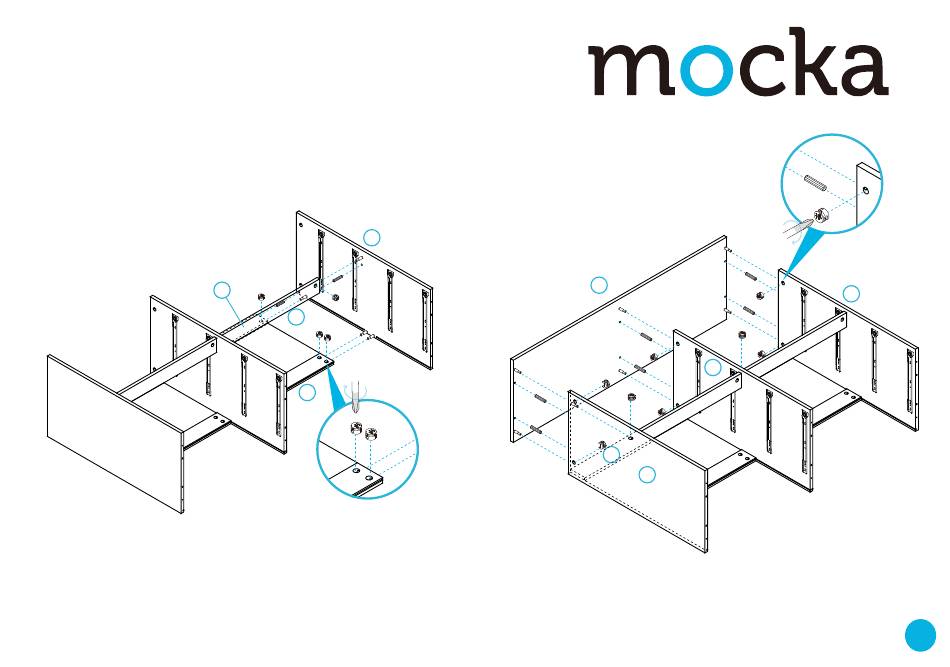

Attach panel [4] to panels [7], [8] and [9] with 2x dowels (A) and secure
with 4x locking nuts (D). Tighten with a screwdriver.
mocka.co.nz | mocka.com.au
4
A
D A
7
D
9
D D
8
D
9
1
A
A
D
D
A
A
7
3
Attach panel [1] to panels [3], [4], [6] and [7] with 6x dowel (A) and secure with
8x locking nuts (D). Tighten with a screwdriver.
