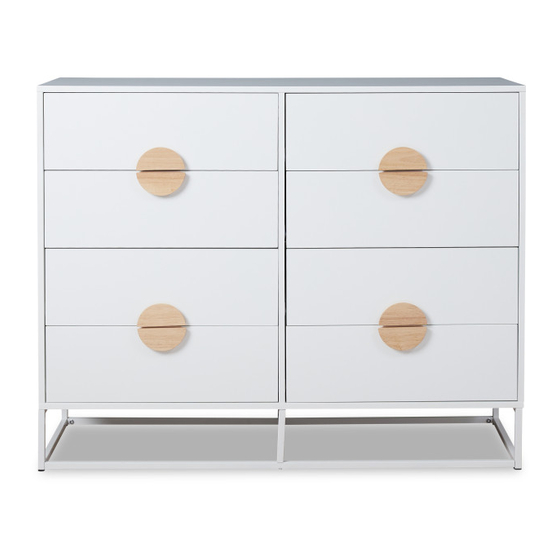

Mocka Eclipse Eight Drawer Assembly Instructions Manual

Eclipse
Eight Drawer
Thank you for your purchase.
Please follow the instructions below for correct assembly
B
A C
dowel bolt
screw locking
x20 x6 x64 nut x 64
J K L
wedge screw bolt handle
x16
x10
x16
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-
quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
E
D F G
Allen
screw
screw
x80 Key
x46
x1
M N CL CR
handle slide slide
screw
rail x8 rail x8
x8
x16
Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H I
safety
strap x2
screw height
adjuster
x2
x2
Attachment of warning label:
The warning label shall be durably affixed to the inside
DL DR
of a top drawer within chear view when the drawer is
empty and partially opened.
Attachment of swing tag:
A readily visible stand-alone swing tag shall be attached
to the handle of the top left second drawer
slide slide
rail x8 rail x8
V W X Y
screw wall wall
x2
anchor screw
x2
x2
Wall Strap
Z
washer
x4
