Mocka Edmond Buffet Assembly Instructions Manual

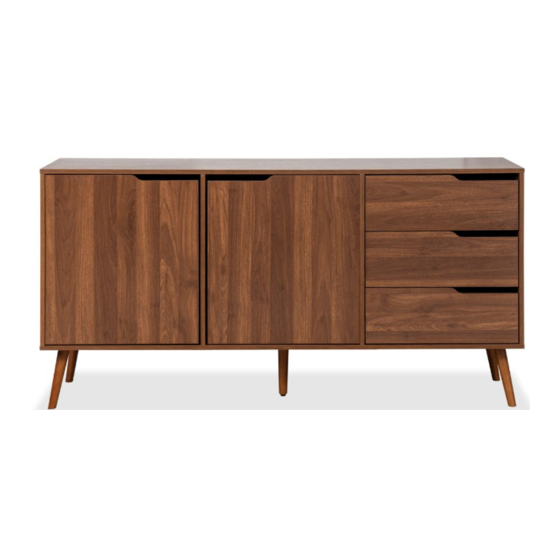

Edmond Buffet
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A B C D
long
dowel bolt locking
screw
x16 x20 nut x20
x8
L M O
N
shelf
screw adjuster
Allen
x12 x1
plug
key
x10
x1
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E F G H
screw bolt wedge
bracket
x4
x30 x16 x8
P Q R S
bolt hinge slide
screw
x2 rail x3
x24
x4

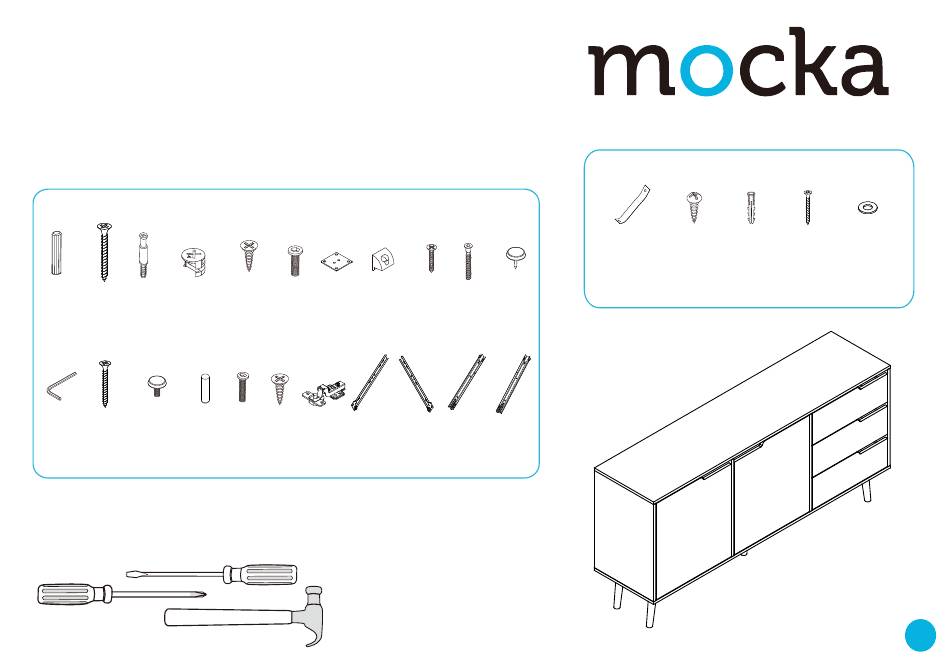

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
K
J
I
long
screw plastic
bolt
x8
x4
glide
x8
T U V
slide slide
slide
rail x3 rail x3 rail x3
V W X
safety screw wall
x2
strap x2 anchor
x2
Wall Strap
Y Z
wall washer
screw x4
x2
1
