Mocka Eclipse Console Table Assembly Instructions Manual

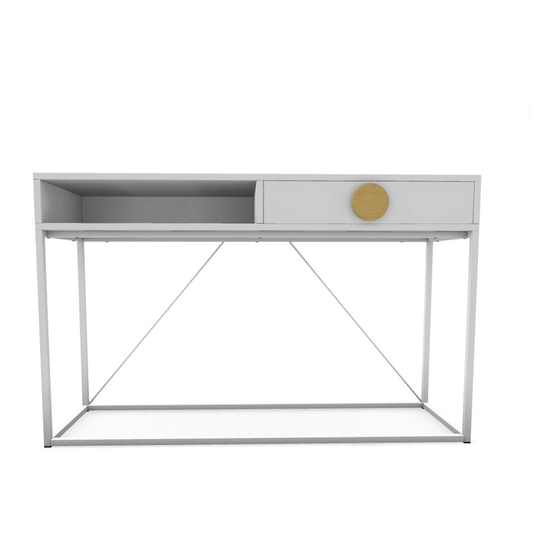

Eclipse Console Table
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A B C
dowel screw bolt
x6
x12 x10
J K
I
slide wedge screw
x4
rail x1 x4
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D E F
locking screw slide
x10 rail x1
nut x10
L M N
bolt handle screw
x14
x12 x1

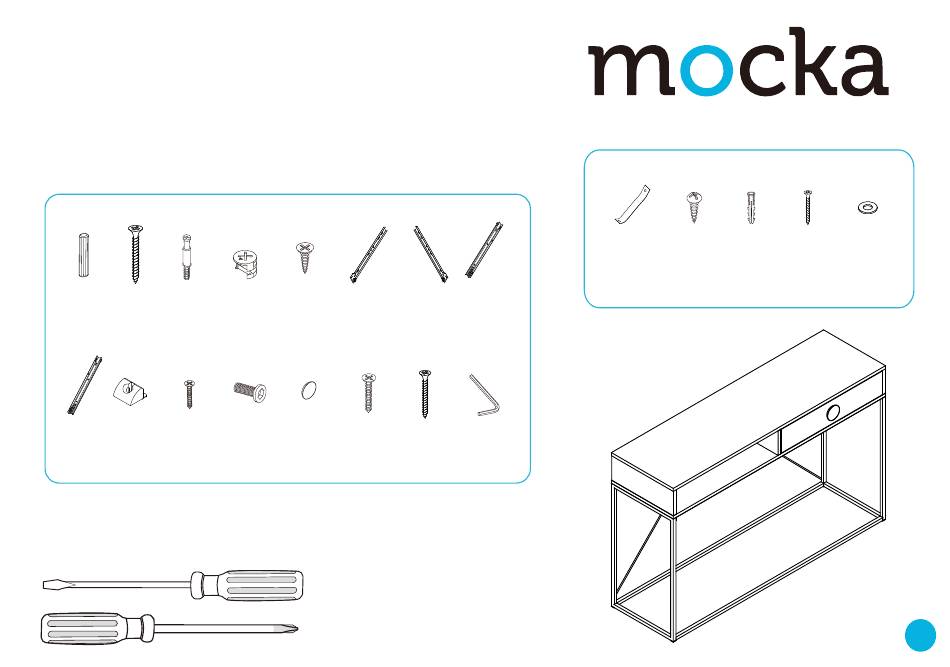

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G H
slide
slide
rail x1 rail x1
O P
screw Allen
x1 Key
x1
V W X
safety screw wall
x1
strap x1 anchor
x1
Wall Strap
Y Z
wall washer
screw x2
x1
1
