Eclipse

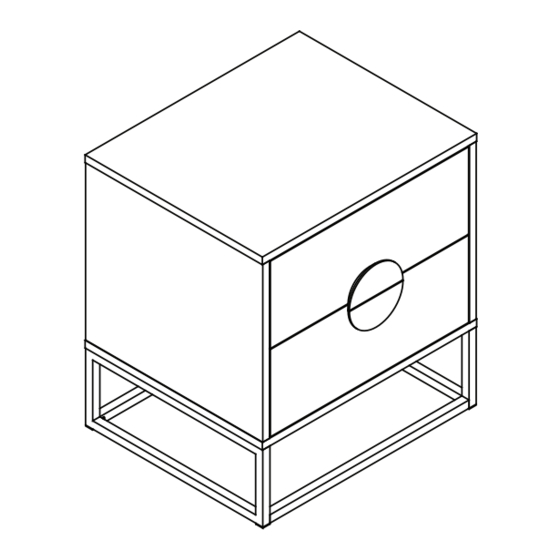

Bedside Table
Thank you for your purchase.
Please follow the instructions below for correct assembly
A
B
C
bolt
dowel
screw
locking
x4
x8
x12
nut x12
I
J
K
slide
wedge
screw
rail x2
x4
x4
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-
quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
E
D
F
screw
slide
slide
x20
rail x2
rail x2
L
M
N
bolt
handle
handle
screw
x8
x2
x4
Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
slide
rail x2
O
P
screw
Allen Key
x12
x1
V
W
X
safety
screw
wall
wall
x1
strap x1
anchor
screw
x1
Wall Strap
Y
Z
washer
x2
x1
