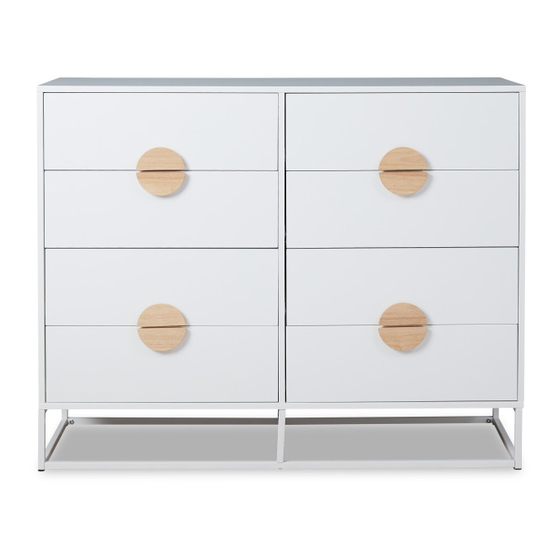

Eclipse Eight Drawer
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
dowel
bolt
screw
locking
x20
x6
x64
nut x 64
J
K
L
wedge
screw
bolt
handle
x16
x16
x10
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au
D
E
F
G
Allen
screw
screw
x80
Key
x46
x1
M
N
CL
CR
handle
slide
slide
screw
rail x8
rail x8
x8
x16

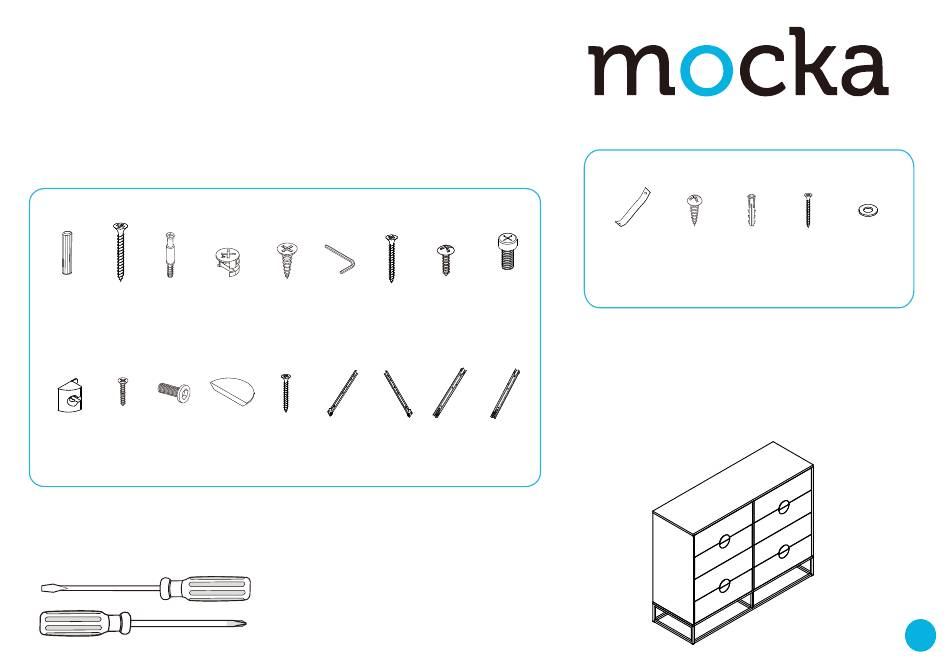

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
I
screw
height
adjuster
x2
x2
Attachment of warning label:
The warning label shall be durably affixed to the inside
DL
DR
of a top drawer within chear view when the drawer is
empty and partially opened.
Attachment of swing tag:
A readily visible stand-alone swing tag shall be attached
to the handle of the top left second drawer
slide
slide
rail x8
rail x8
V
W
X
safety
screw
wall
x2
strap x2
anchor
x2
Wall Strap
Y
Z
wall
washer
x4
screw
x2
1
Advertisement
Related Manuals for Mocka Eclipse Eight Drawer
Summary of Contents for Mocka Eclipse Eight Drawer
- Page 1 Eclipse Eight Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions for correct assembly. While we took great effort to ensure these assembly instructions were correct at the time of printing, sometimes updates are required post production. For the most up to date versions please refer to the product page on our website.
-
Page 2: Panel Layout
Eclipse Eight Drawer Assembly Instructions Panel layout Insert 8x bolts (C) into panel [1] and tighten with a screwdriver. mocka.co.nz | mocka.com.au... - Page 3 Eclipse Eight Drawer Assembly Instructions FLIP Attach 4x slide rails (CL) to panel [3] and secure with 12x screws (E). Attach 4x slide rails (CL) and 4x slide rails (CR) to panel [6] as shwon. Insert 4x bolts (C) into panel [3]. Tighten with a screwdriver. Attach secure with 24x screws (E).
- Page 4 Eclipse Eight Drawer Assembly Instructions Attach panels [7] and [8] to panel [6] with 2x dowels (A) and secure Slide panels [5] down along the grooves between the panels [7] and with 6x locking nuts (D). Tighten with a screwdriver.
- Page 5 Eclipse Eight Drawer Assembly Instructions Attach panel [3] to panels [7], [8] and [9] with 2x dowels (A) and secure Attach panels [9] to panel [6] with 2x dowels (A) and secure with 2x with 4x locking nuts (D). Tighten with a screwdriver.
- Page 6 Eclipse Eight Drawer Assembly Instructions Attach panel [4] to panels [7], [8] and [9] with 2x dowels (A) and secure Attach panel [1] to panels [3], [4], [6] and [7] with 6x dowel (A) and secure with with 4x locking nuts (D). Tighten with a screwdriver.
- Page 7 Eclipse Eight Drawer Assembly Instructions Slide panels [5] down along the grooves between the panels [3], [4] and Attach panel [2] to the unit with 6x dowels (A) and secure with 6x screws (B). [6] as shown. Tighten with a screwdriver.
- Page 8 Eclipse Eight Drawer Assembly Instructions Attach panel [10] to panel [12] and secure with 1x bolts (L). Attach panels [11] to panels [12] and [13] and secure with 8x bolts (L). Tighten with an Allen Key (F) Tighten with an Allen Key (F). Attach 2x height adjuster (I) to panels [12] as shown.
- Page 9 Eclipse Eight Drawer Assembly Instructions Drawers x8 Attach panels [13] to panel [2] and secure with 6x screws (G). Insert 40x bolts (C) into panels [35] and [36]. Tighten with a screwdriver. Attach panels [10] to panel [2] and secure with 2x screws (H).
- Page 10 Eclipse Eight Drawer Assembly Instructions Drawers x8 Drawers x8 3 35 3 36 Attach panels [30], [31] and panel [34] to panels [35] and [36] Slide panels [33] down along the grooves between the side panels [30] and secure with 40x locking nuts (D). Tighten with a screwdriver.
- Page 11 Eclipse Eight Drawer Assembly Instructions Drawers x8 Drawers x8 3 35 3 36 Attach panels [30], [31], [32] and [34] together as shown using 40x Attach slide rail (DL) and slide rail (DR) to the underside of the side panels [30] screws (G).
- Page 12 Eclipse Eight Drawer Assembly Instructions Drawers x8 Tighten the screws 90%.. 3 35 Tighten the screws 90%.. 3 36 Insert the assembled drawers into the corresponding compartments Attach 8x handles (M) to panels [35] and [36] and secure with 16x handle as shown.
- Page 13 Eclipse Eight Drawer Assembly Instructions strap wall anchor screw Attach 16x wedges (J) into the corners of the back of the unit and Once assembled lift furniture into place, do not drag. Use a drill to create secure with 16x screws (K). Tighten with a screwdriver. Attach 2x a small hole lining up with the top of the safety strap (V).
- Page 14 Eclipse Eight Drawer Assembly Instructions After installation, if the two handles are not aligned, loosen the screws in the back, adjust the two handles to align them, and then tighten the screws back up. mocka.co.nz | mocka.com.au...
