Eclipse Change Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
screw
bolt
locking
large
x19
x27
nut x27
dowel
x16
K
I
J
L
bolt
slide
wedge
screw
rail x2
x8
x8
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
screw
slide
x20
rail x2
N
O
M
handle
handle
screw
screw
x16
x2
x4

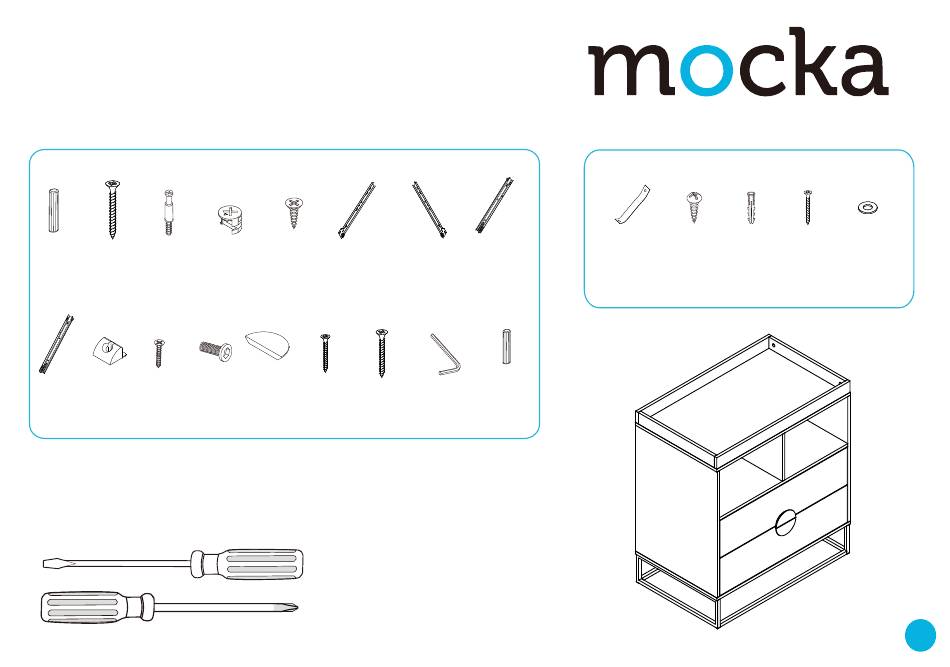

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
slide
slide
rail x2
rail x2
P
Q
Allen Key
dowel
x1
x16
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Related Manuals for Mocka Eclipse Change Table
Summary of Contents for Mocka Eclipse Change Table
- Page 1 Phillips & Flathead screwdrivers For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 4x bolts (C) into panels [3] and [4].Tighten with a screwdriver. Attach 2x slide rails (F) and 2x slide rails (G) to panels [3] and [4] as shown and secure with 12x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [3] and [4] to panel [6] with 4x large dowels (A) and secure with 3x screws (B). Tighten with a screwdriver. secure with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 [4] to form the back of the unit as shown. panels [8] to panels [9] with 8x dowels (Q) and secure with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panel [1] to panels [8] and [9] with 8x dowels (Q) and secure with 10x screws (B). Tighten with a screwdriver. secure with 9x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [2] to panels [3] and [4] with 4x large dowels (A) and and [4] to form the back of the unit as shown. secure with 6x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach panels [11] to panels [12] and panels [13] and secure Attach panels [12] to panel [2] as shown using 6x screws (O). with 8x bolt (L). Tighten with an Allen Key (P). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach panels [16], [17] and panel [18] to panels [14] and [15] Insert 10x bolts (C) into panels [14] and [15]. Tighten with and secure with 10x locking nuts (D). Tighten with a screwdriver. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Slide panels [19] along the grooves between the side Attach panels [16], [17], [18], [19] and [20] together as shown using panels [16] and [17] as shown. 10x screws (O). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Attach 2x handles (M) to panels [14] and [15] and secure with 4x panels [16] and [17] as shown. Secure with 8x screws (E) and handle screws (N). Tighten with a screwdriver. tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 8x screws (K). Tighten with a screwdriver. Attach 1x safety straps (V) to the top of the back side of the unit as shown using 1x washers (Z) and 1x screws (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 (V). Fasten to the wall using 1x washers (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 13 Assembly Instructions After installation, if the two handles are not aligned, loosen the screws in the back, adjust the two handles to align them, and then tighten the screws back up. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
