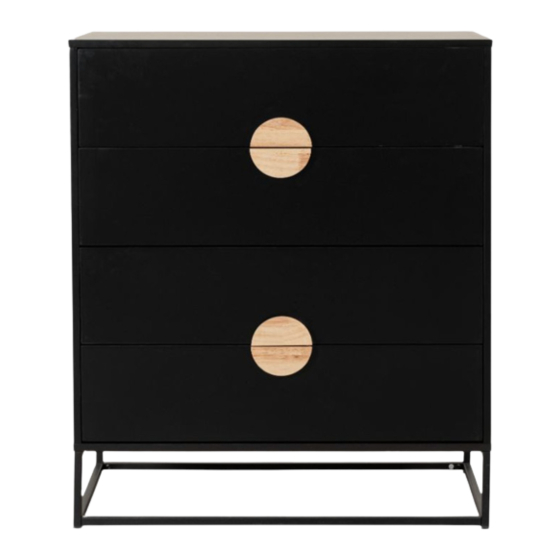

Eclipse Four Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
screw
bolt
locking
dowel
x14
x7
x35
nut x35
J
K
I
slide
wedge
screw
rail x4
x8
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
screw
slide
x40
rail x4
N
L
M
bolt
handle
handle
screw
x8
x4
x8

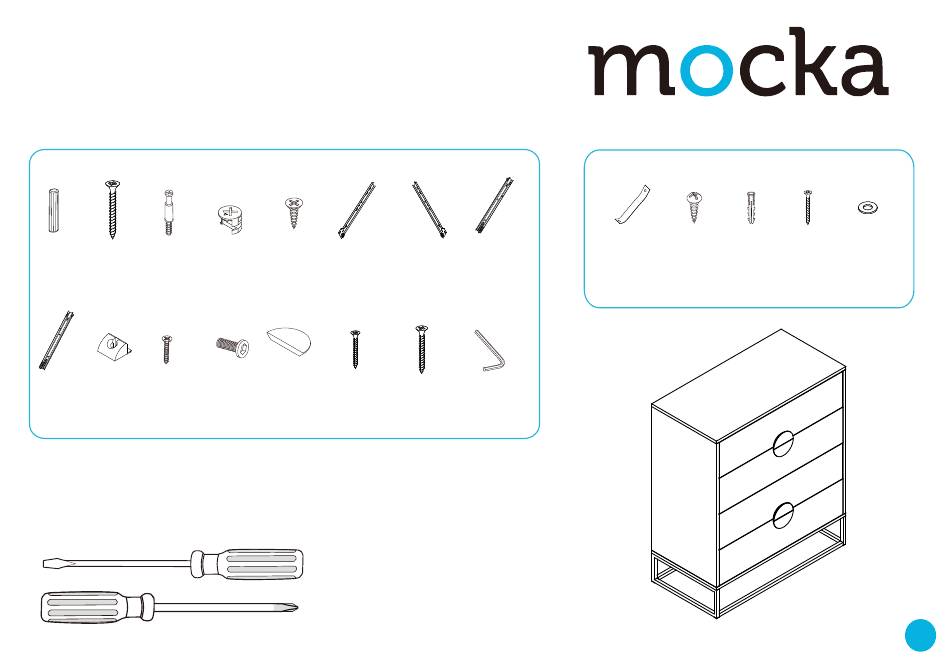

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
slide
slide
rail x4
rail x4
O
P
screw
Allen Key
x26
x1
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Related Manuals for Mocka Eclipse Four Drawer
Summary of Contents for Mocka Eclipse Four Drawer
- Page 1 Phillips & Flathead screwdrivers For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 5x bolts (C) into panel [1] and tighten with a screwdriver. Attach 4x slide rails (F) and 4x slide rails (G) to panels [3] and [4] as shown and secure with 24x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Insert 10x bolts (C) into panels [3] and [4]. Tighten with a screwdriver. Attach panels [5], [6], [7] and [8] to panel [3] with 2x dowels (A) and secure with 5x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Slide panel [9] down along the grooves between the panels [7] and [8] to form the back of the unit as shown. secure with 5x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panel [1] to panels [3], [4], [5] and [7] with 6x dowels (A) and secure with 5x locking nuts (D) and 3x screws (B). Tighten with a and [4] to form the back of the unit as shown. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [2] to the unit with 4x dowels (A) and secure with 4x Attach panels [10] to panels [11] and panels [12] and secure screws (B). Tighten with a screwdriver. with 8x bolt (L). Tighten with an Allen Key (P). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 3 13 Attach panels [11] to panel [2] as shown using 6x screws (O). Insert 20x bolts (C) into panels [13] and [14]. Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Slide panels [18] along the grooves between the side Attach panels [15], [16] and panel [17] to panels [13] and [14] panels [15] and [16] as shown. and secure with 20x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach slide rail (I) and slide rail (H) to the underside of the side Tighten with a screwdriver. panels [15] and [16] as shown. Secure with 16x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Attach 4x handles (M) to panels [13] and [14] and secure with 8x Insert the assembled drawers into the corresponding compartments handle screws (N). Tighten with a screwdriver. as shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 Fasten to the wall using 1x washers (Z), 1x wall anchor (X) and shown using 1x washers (Z) and 1x screws (W). Tighten with a 1x wall screw (Y). Ensure unit is balanced and steady before use. screwdriver. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 Assembly Instructions After installation, if the two handles are not aligned, loosen the screws in the back, adjust the two handles to align them, and then tighten the screws back up. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
