Mocka Eclipse Eight Drawer Assembly Instructions Manual page 3

Eclipse Eight Drawer
Assembly Instructions
2
C
CL
E
E C
E
3
CL
E
C
C C
CR
CR
4

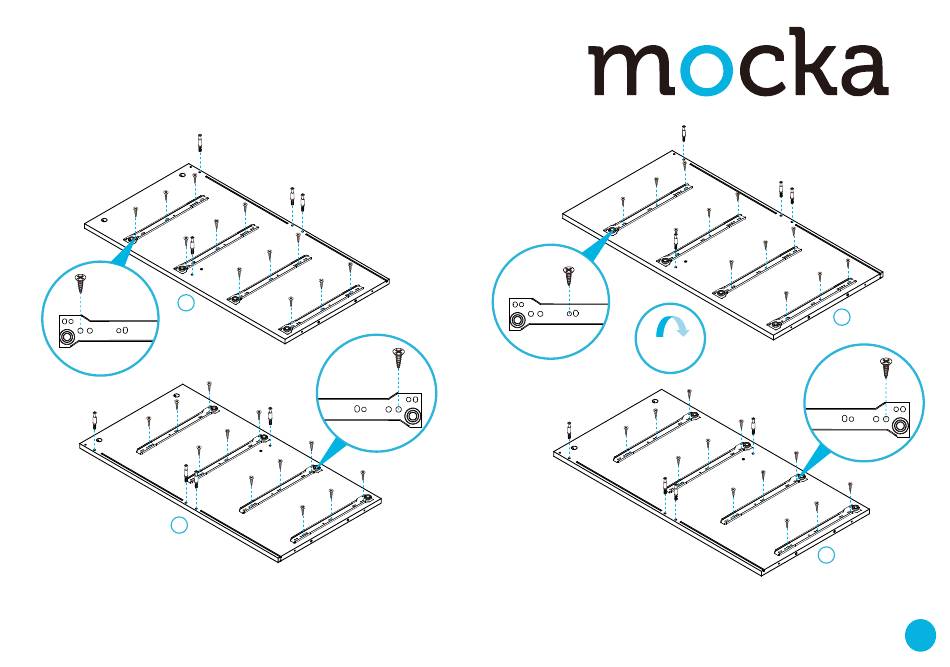

Attach 4x slide rails (CL) to panel [3] and secure with 12x screws (E).
Insert 4x bolts (C) into panel [3]. Tighten with a screwdriver. Attach
4x slide rails (CR) to panel [4] and secure with 12x screws (E). Insert
4x bolts (C) into panel [4]. Tighten with a screwdriver.
mocka.co.nz | mocka.com.au
C C
CL
CL
E
CL
E
E
C
E
CR
E
E
CR
CR
3
E
E
E
CL
FLIP
C
CR
C C
CR
Attach 4x slide rails (CL) and 4x slide rails (CR) to panel [6] as shwon.
secure with 24x screws (E). Insert 8x bolts (C) into panels [6]. Tighten
with a screwdriver.
