Mocka Eclipse Eight Drawer Assembly Instructions Manual page 12

Eclipse Eight Drawer
Assembly Instructions
20
Drawers x8
N
N
M
3 35
x4
N
N
M
3 36
x4

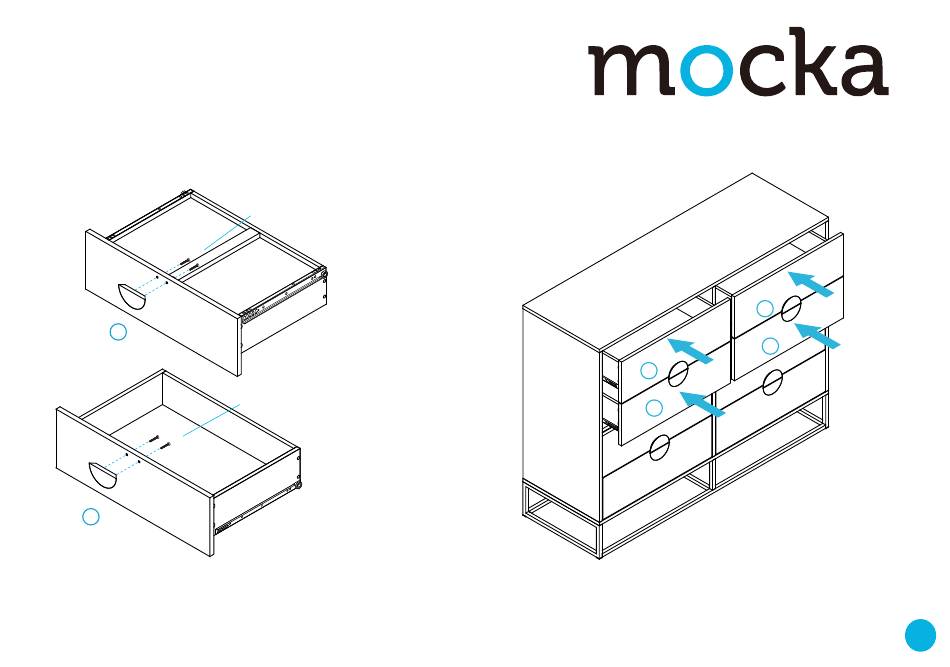

Attach 8x handles (M) to panels [35] and [36] and secure with 16x handle
screws (N). Tighten with a screwdriver.
mocka.co.nz | mocka.com.au
Tighten the
screws 90%..
Tighten the
screws 90%..
21
35
36
Insert the assembled drawers into the corresponding compartments
as shown. Ensure the drawers slide easily along the rails.
35
36
