Mocka Essentials Large Bookcase
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
locking
dowel
x22
nut x22
x20
F
G
H
screw
screw
stopper
screw
x8
x4
x16

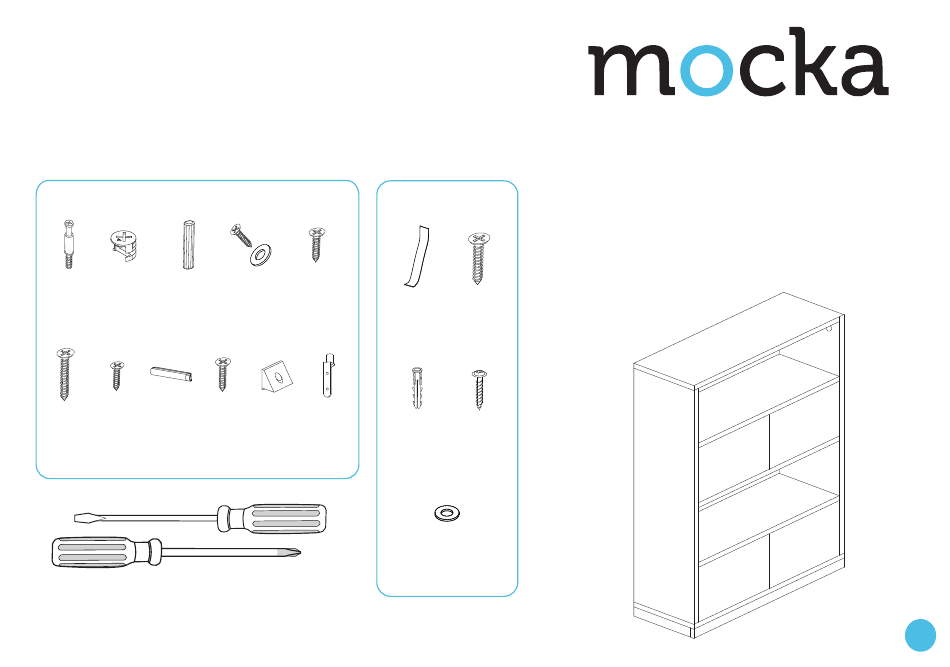

Hardware Supplied
Phillips & Flathead screwdrivers required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au
D
E
washer
screw
set x4
x8
I
J
K
wedge
hinge
x20
x20
x8
WARNING:
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
W
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
screw
x2
strap x2
X
Y
wall
r/washer
anchor
screw
x2
x2
Z
washer
x2
Wall Strap
Any furniture that is not anchored to a wall has the potential to tip
1
Advertisement
Related Manuals for Mocka Essentials Large Bookcase
Summary of Contents for Mocka Essentials Large Bookcase
- Page 1 Mocka Essentials Large Bookcase Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Mocka Essentials Large Bookcase Assembly Instructions Separate the 2x stoppers (H) as shown and attach the bracket parts to Attach panels [3] and [4] to panel [12] using 6x dowels (C), 6x bolts (A) each panel [3] using 4x screws (E). Tighten with a screwdriver. Cover and secure with 6x locking nuts (B).
- Page 3 Mocka Essentials Large Bookcase Assembly Instructions Slide panel [5] down along the grooves between panel [3] and [4] as Attach panel [6] to panels [3] and [4] using 6x dowels (C), 6x bolts (A) shown. and secure with 6x locking nuts (B). Tighten with a screwdriver.
- Page 4 Mocka Essentials Large Bookcase Assembly Instructions Slide panel [5] along the grooves between panels [6] and [12]. Attach panel [8] to panels [7] and [9] using 2x bolts (A) and secure with 2x locking nuts (B). Now attach panels [7], [8] and [9] to panel [2] as shown, using 8x screws (F).
- Page 5 Mocka Essentials Large Bookcase Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach 2x safety straps (W) to panel [1] using 2x r/washer screws (Y). Attach panel [1] to panels [6] and [12] using 4x dowels (C), 4x bolts (A) Tighten with a screwdriver.
- Page 6 Mocka Essentials Large Bookcase Assembly Instructions Cupboard Doors x4 Attach 10x wedges (J) to each panel [5] using 10x screws (I) as shown. Attach 1x hinge (K) to each door panel [10] and [11] and secure with 2x screws (G). Attach 1x washer set (D) to each door and tighten with a Tighten with a screwdriver.
- Page 7 Mocka Essentials Large Bookcase Assembly Instructions Insert 4x hinges (K) into shelf panels [2] and [4]. Slip the doors [10] and [11] into place on the upper hinges (K). Attach the lower hinges (K) to the doors using 8x screws (G). Tighten with a screwdriver.
- Page 8 Mocka Essentials Large Bookcase Assembly Instructions strap wall plug screw Once assembled lift furniture into place, do not drag. Use a drill to create Ensure the unit is balanced and steady before use. You’re done, enjoy! a small hole lining up with the top of the safety strap (W). Fasten to wall using 2x wall plugs (X), 2x washers (Z) and 2x screws (not supplied).
