Eros Entertainment Unit
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
18 x
18 x
36 x
long screw
bolt
locking nut
dowel
F
G
6 x
6 x
Shelf
Sliding
long screw
plug
track glide

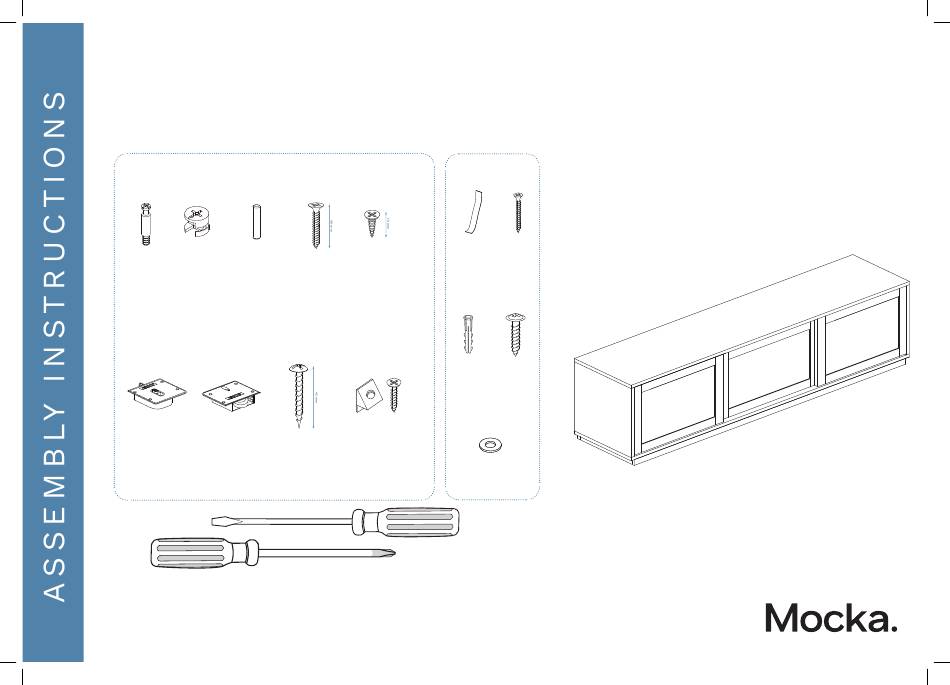

HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
D
W
E
1 x
safety
strap
8 x
48 x
small screw
X
I
H
1 x
wall
anchor
11 x
8 x
wedge
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
1 x
long
screw
Y
1 x
screw
Z
1 x
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Eros Entertainment Unit
Summary of Contents for Mocka Eros Entertainment Unit
- Page 1 Eros Entertainment Unit Thank you for your purchase. WARNING: Any furniture that is not anchored to a wall has the potential to Please follow the instructions below for correct assembly. tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthpuake.
- Page 2 Eros Entertainment Unit Attach 4 x bolts (A) into panels [3] and [4]. Slide panel [6] between the Insert 8 x bolts (A) into panel [1]. Attach 1 x wall strap (W) to panel [1] using 1 x grooves on panels [5] as shown.
- Page 3 Eros Entertainment Unit Insert 2 x dowels (C) to panel [6] and attach panel [3]. Attach 2 x locking Insert 2 x dowels (C) to panel [6] and attach panel [4]. Attach 2 x locking nuts (B) into panel [6]. Tighten with a screwdriver.
- Page 4 Eros Entertainment Unit Insert 8 x dowels (C) to panels [3], [4] and [5] and attach panels [1]. Attach 8 x Slide panels [7] between the grooves on panels [3] and [4] to form the locking nuts (B) into panels [3], [4] and [5]. Tighten with a screwdriver.
- Page 5 Eros Entertainment Unit Panel piece x 2 Insert 8 x dowels (C) into panels [2], [3], [4] and [5]. Attach panel [2] to panels [3], [4] and [5], securing with 8 x long screws (D). Attach 6 x bolts (A) into panels [8]. Tighten with a screwdriver.
- Page 6 Eros Entertainment Unit Insert 12 x dowels (C) to panels [9] and attach panels [8]. Insert 6 x Insert 4 x dowels (C) into panels [8] and [9]. Attach panels [8] and 9] to locking nuts (B) into panels [9]. Tighten with a screwdriver.
- Page 7 Eros Entertainment Unit Panel x 3 Attach 6 x shelf plugs (F) to panels [10] and secure with 24 x small screws (E). Push 6 xShelf plug (F) down. Place 6 x Sliding track guide (G) into panel 2 Attach 6 x sliding track glides (G) to panels [10] and secure with 24 x small screws (E).
- Page 8 Eros Entertainment Unit Strap Washer Wall anchor Wall screw Wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety stap (W). Fasten to wall using wall anchor (X), washer (Z) and screw.
