Chassis Bottom, Rubber Feet Placement - Enterasys Matrix N3 7C103 Hardware Installation Manual

To install the rubber feet, refer to
1. Place the chassis on its back on a sturdy flat surface to access the bottom of the chassis.
2. Remove the four rubber foot/screw assemblies from their plastic bag in the shipping box.
3. Locate the four tapped holes in the four corners on the bottom of the chassis.

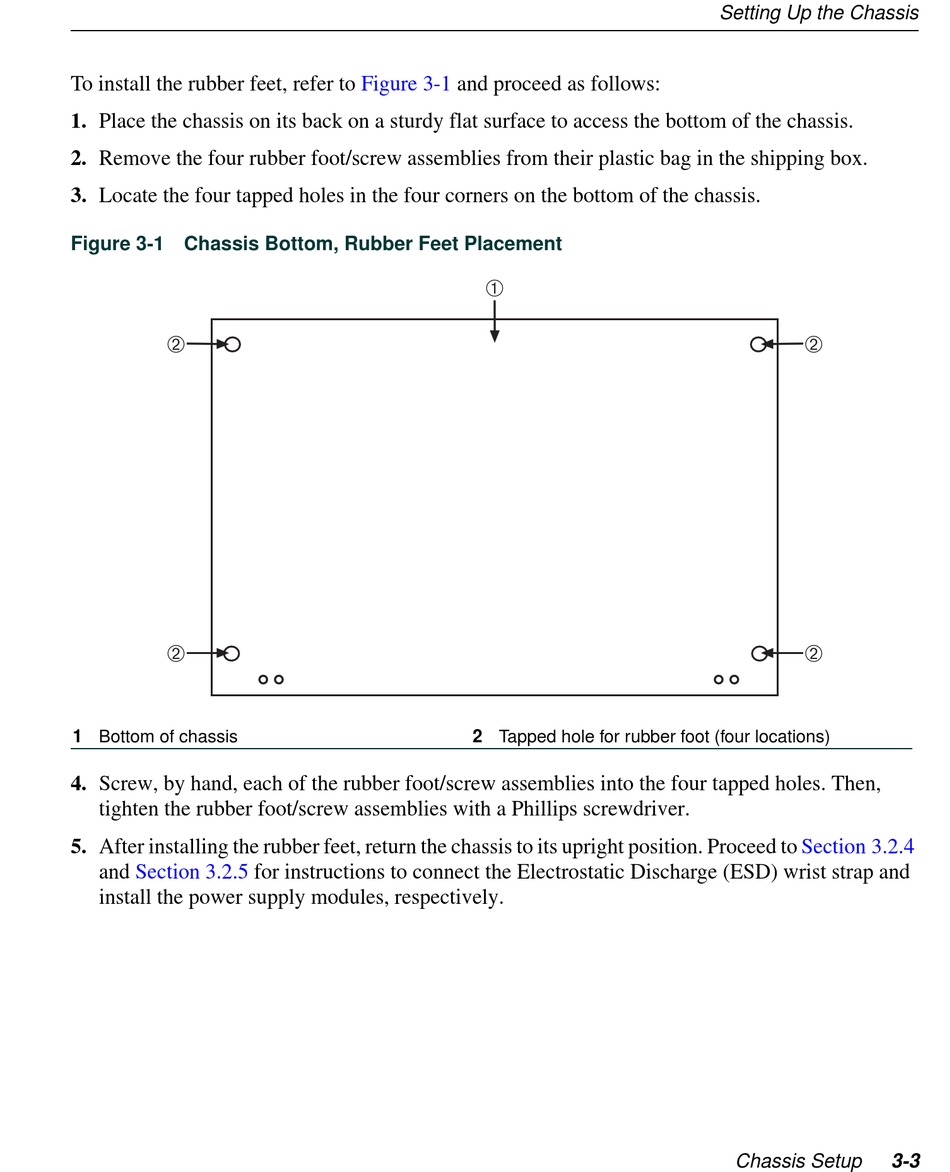

Figure 3-1 Chassis Bottom, Rubber Feet Placement
Á
Á
1 Bottom of chassis
4. Screw, by hand, each of the rubber foot/screw assemblies into the four tapped holes. Then,
tighten the rubber foot/screw assemblies with a Phillips screwdriver.
5. After installing the rubber feet, return the chassis to its upright position. Proceed to
and Section 3.2.5
install the power supply modules, respectively.
Figure 3-1
for instructions to connect the Electrostatic Discharge (ESD) wrist strap and
and proceed as follows:
À
2 Tapped hole for rubber foot (four locations)
Setting Up the Chassis
Á
Á
Section 3.2.4
Chassis Setup 3-3
