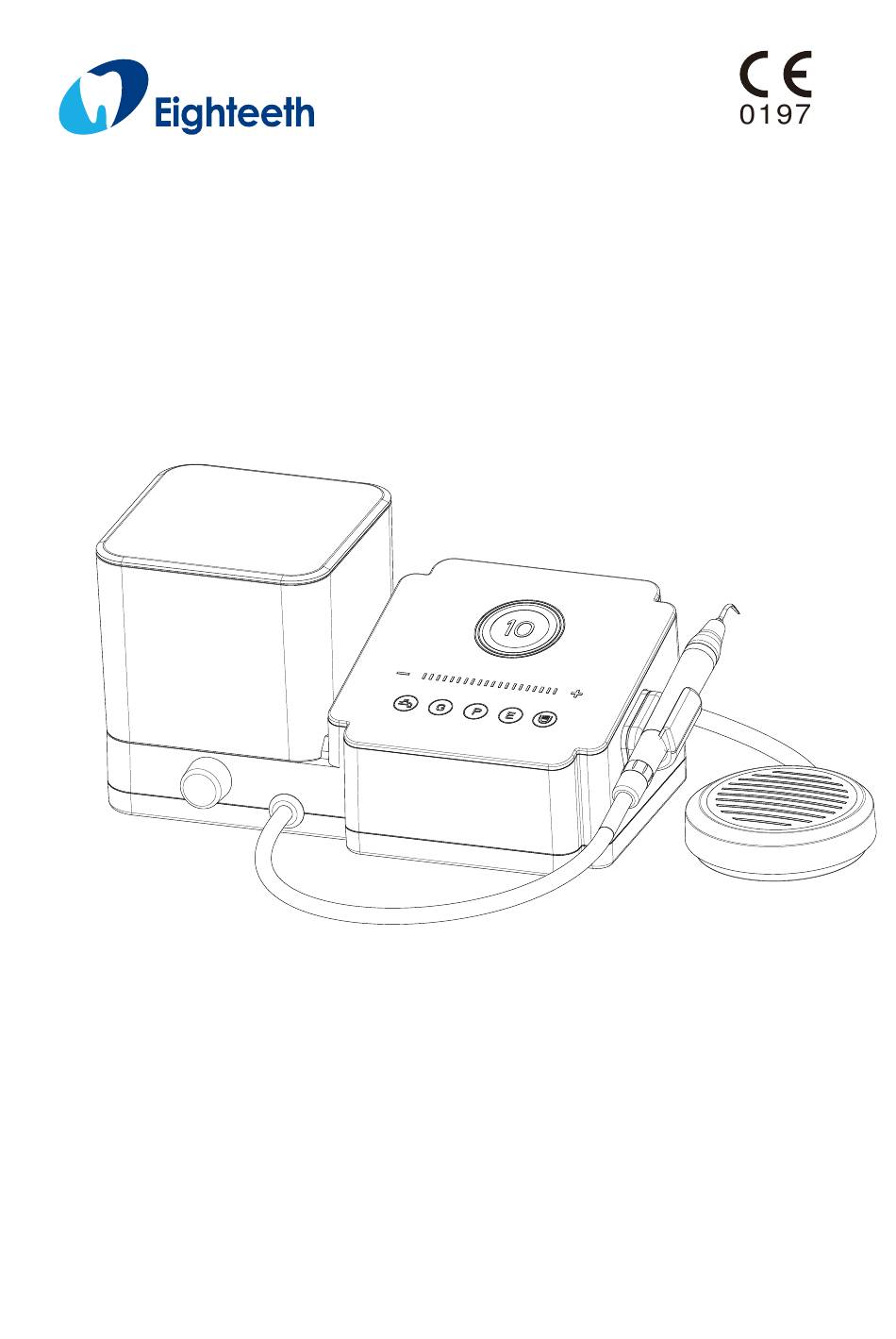

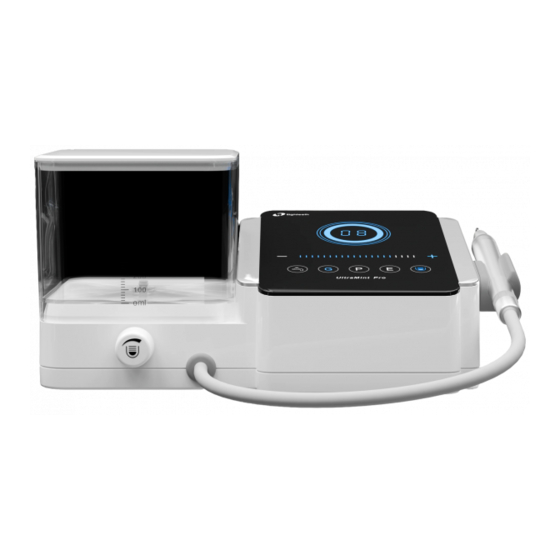

- Page 1 Model：UltraMint Pro ULTRASONIC SCALER USER MANUAL...
- Page 2 Version: 03 IFU-6635002 Issued: 2021.06.11 Size：197mmX140mm...
-
Page 3: Table Of Contents
Catalog 1. Overview ......................4 1.1 Content ............................4 1.2 Packing list and coding ......................5 2. Symbol instruction ..................... 6 3. Foreword ......................8 3.1 Scope of application ........................8 3.2 Contraindications ........................8 4. Installation ......................9 4.1 Front view ..........................9 4.2 Back view ........................... -
Page 4: Overview
Overview 1. Overview 1.1 Content 1. Main Unit 2. Bottle 3. Cover 4. Handpiece Support 5. Handpiece 6. Tip 7. Foot Pedal 8. External Water Supply Hose 9. Power Cable 10. Wrench Page 4 / 36... -
Page 5: Packing List And Coding
Overview 1.2 Packing list and coding Main unit (1pcs) Bottle (1pcs) Cover (1pcs) 6651001 6651012 6603023 Foot pedal (1pcs) Handpiece support (1pcs) External water supply hose 6651027 6604008 (1pcs) 6641006 Wrench (1pcs) Handpiece (1pcs) Power cable (1pcs) 6615006 Store in the instrument box Store in the instrument box 6651010 6651005... -
Page 6: Symbol Instruction
Symbol instruction 2. Symbol instruction If the instructions are not followed properly, operation may WARNING lead to hazards for the product or the user/patient. Additional information, explanation of operation and performance. Serial number Class II equipment Type B applied part Alternating current Dispose of in accordance with the WEEE directive Keep dry... - Page 7 Symbol instruction External water supply mode Catalogue number Manufacturer Date of manufacture Lot of manufacture Authorized Representative in the European Community Manufacturer’s LOGO Follow instructions for use Washer-disinfector for thermal disinfection Earth(ground) Handpiece water control Page 7 / 36...
-
Page 8: Foreword
3. Foreword 3.1 Scope of application UltraMint Pro is an ultrasonic scaler intended for use during scaling, endodonti c treatment and periodontal therapy to remove calculus deposits and stains fr om teeth by application of an ultrasonic vibrating scaler tip to the teeth. -
Page 9: Installation
Installation 4. Installation 4.1 Front view Decrease power k ey Power display window Quickly decrease/increase power key &Power indicator I ncrease power key Handpiece Water control knob Wat er control knob Handpiece cord Bott le water supply mode Ext ernal wat er supply mode Endodontic mode Scaling mode Periodontal mode... -
Page 10: Main Unit Installation
Installation 4.3 Main Unit Installation 4.3.1 Install the handpiece 4.3.3 Install the power cable and support foot pedal Install the handpiece support to Plug the power cable and foot pedal into the main unit first. the corresponding sockets. Turn the power switch to the off state (i.e. - Page 11 Installation Ext ernal water hose connector ① Unscrew the lock nut on the external water hose connector counterclockwise. ② Put the lock nut on the external water supply hose as shown above. ③ Connect one end of the external water supply hose to the external water hose connector on the main unit, then clockwise tighten the lock nut.
-
Page 12: Handpiece Installation And Removal
Installation 4.4 Handpiece installation and removal 4.4.1 Handpiece installation and removal Take out lamp bead protective shield by Install and remove the handpiece as otat ing it counterclockwise shown below. Lamp bead protective shield Note that before installation, align the direction mark on the handpiece with the direction mark on the connector of handpiece cord, and then insert the... -
Page 13: Tip Installation And Removal
Installation 4.5 Tip installation and removal 4.5.1 Tip installation 4.5.2 Tip removal 1) Screw the tip to the handpiece. 1) Align the gap of the wrench with 2) Align the gap of the wrench with the tip. the tip. 2) Rotate the wrench 3) Rotate the wrench clockwise until counterclockwise until the tip it turns 90 degrees. -
Page 14: Product Function And Use
Product function and use 5. Product function and use 5.1 Operation panel instructions 5.1.1 Water supply mode 5.1.2 Working mode External water Bottle water supply mode supply mode This equipment can provide external water supply mode and bottle water This equipment can provide three working modes: Scaling mode, supply mode, and users can choose Periodontal mode and Endodontic... - Page 15 Product function and use endodontic mode, the indicator on the Operating Power of the equipped ti corresponding button is lit, select the tip marked with "E" at the tip when Tip model Power using it. 1-10(G) 1-10(G) 5.1.3 Power adjustment 1-10(G) 1-10(P) Power...
-
Page 16: Function Mode And Use
Product function and use 5.2 Function mode and use This equipment can provide external water supply mode and bottle water supply mode, and users can choose water supply mode to supply water according to their needs. 5.2.1 Bottle water supply handpiece cord to adjust the water mode flow, it is necessary to ensure that the... - Page 17 Product function and use 3) Insert the external water supply hose into the water inlet, and then tighten the fixing nut clockwise. 4) Connect the other end of the external water supply hose to the clean water source. 5) Press " "...
-
Page 18: Operating The Device
Product function and use 5.3 Operating the device 5.3.1 Install the device correctly 5.3.7 Power adjustment: Adjust the according to the installation steps. power depending on the application. The operator is facing the device, Generally, the medium power is and the water control knob on the enough, and the output power can handpiece cord is adjusted to the be adjusted at any time in clinical... - Page 19 Product function and use 10. If use the water source without hydraulic pressure, the water surface 1. Keep the device clean before and should be 1 meter higher than the after use. head of the patient. 2. Before each use, always check 11.
-
Page 20: Advanced Settings
Product function and use 5.4 Advanced settings 5.4.1 "Cleaning" mode During the cleaning process, step on It is recommended to flush the liquid the foot pedal again or press the circuit of the device after scaling at water control knob once on the main least once a day. -
Page 21: Cleaning, Disinfection And Sterilization
Cleaning, Disinfection and Sterilization 6. Cleaning, Disinfection and Sterilization 6.1 Foreword The parts for clinical application contamination are the outer surfaces of the handpiece, tip and wrench. For hygiene and sanitary safety purpose, these components must be cleaned, disinfected and sterilized before each usage to prevent any contamination. - Page 22 Cleaning, Disinfection and Sterilization Only the components above can be autoclaved. Before first use and after each use, sterilize the above components. Reprocessing Instructions Before cleaning, disconnect the handpiece and tips from the main unit. Disassemble the light guide and lamp bead from the handpiece.
- Page 23 Cleaning, Disinfection and Sterilization Automated Cleaning: Carefully put the components into the washer-disinfector on a tray and set the parameters as follows, then start the program: 4 min pre-washing with cold water (<40° C); emptying 5 min washing with a mild alkaline cleaner at 55°...
- Page 24 Cleaning, Disinfection and Sterilization Visual inspection for cleanliness of the instruments and reassembling. Functional testing according Functional instructions of use. If necessary, perform reprocessing Testing, process again until the instrument is visibly clean. Before packaging and autoclaving, make sure that the Maintenance: components have been maintained according to the manufacturer’s instruction.
- Page 25 Cleaning, Disinfection and Sterilization and instructions for use. Sterility cannot be guaranteed if packaging is open, damaged or wet. Check the packaging before using it (packaging integrity, no humidity and validity period). The above-mentioned reprocessing process (cleaning, disinfection, sterilization) been successfully...
-
Page 26: Disinfection Components
Cleaning, Disinfection and Sterilization 6.4 Disinfection components Disinfection components Main unit Bottle Cover Power cable Foot pedal Handpiece support External water supply hose Wipe all the surfaces with a cloth lightly moistened with Ethanol for Disinfection (Ethanol 70 to 80 vol%) at least 2min, repeat for 5 times. ... -
Page 27: Maintenance
Maintenance 7. Maintenance When the device is not in use, the power switch should be turned off and the power plug should be unplugged. When the device is not in use for a long time, it should be powered and watered once a month for about 5 minutes each time. -
Page 28: Troubleshooting
Troubleshooting 8. Troubleshooting When trouble is found, check the following points before contacting your distributor. If none of these are applicable or the trouble is not remedied even after action has been taken, the product may have failed. Contact your distributor. - Page 29 Troubleshooting Drain the waterway with Blocked waterway dental gun The tip vibration is The tip is loose Tighten the tip weakened The tip is broken Replace the tip Control panel Control panel circuit Contact your local distributor malfunction board is damaged or our company Water seepage at the connection between the...
-
Page 30: Technical Data
Technical Data 9. Technical Data Changzhou Sifary Medical Technology Co.,Ltd Manufacturer Model UltraMint Pro Box dimensions 336mm×190mm×270mm Total weight 3.75kg Power supply ~220-240V 50/60Hz Input power 38VA Output primary tip vibration 1μm~200μm excursion Output tip vibration 25kHz~42kHz frequency Output half-excursion force 0.1N~2N... -
Page 31: Emc Tables
Guidance and manufacturer’s declaration – electromagnetic emissions The UltraMint Pro is intended for use in the electromagnetic environment specified below. The customer or the user of the UltraMint Pro should assure that it is used in such an environment. Emissions test... - Page 32 Guidance and manufacturer’s declaration – electromagnetic immunity The UltraMint Pro is intended for use in the electromagnetic environment specified below. The customer or the user of the UltraMint Pro should assure that it is used in such an environment. IEC 60601 test...
- Page 33 The UltraMint Pro has been tested with the immunity test level in the below table and meet the related requirements of IEC 60601-1-2:2014. The customer and/or user should help keep a minimum distance between RF wireless communications equipments and the UltraMint Pro as recommended below.
-
Page 34: Power Cable
Pedal cable Handpiece cord Use of UltraMint Pro adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, UltraMint Pro and the other equipment should be observed to verify that they are operating normally... -
Page 35: Statement
Statement 11. Statement Service Life The service life of UltraMint Pro series products is 5 years. Maintenance MANUFACTURE will provide circuit diagrams, component part lists, descriptions, calibration instructions to assist to SERVICE PERSONNEL in parts repair. Disposal The package should be recycled. Metal parts of the device are disposed as scrap metal. - Page 36 Add: NO.99, Qingyang Road, Xuejia County, Xinbei District, Changzhou City, 213000 Jiangsu, P. R. China Tel: +86-0519-85962691 Fax: +86-0519-85962691 Email: ivy@sifary.com Web: www.eighteeth.com Caretechion GmbH Tel: +49 211 3003 6618 Add: Niederrheinstr. 71, 40474 Duesseldorf, Germany Email: info@caretechion.de All rights reserved.
