High Accuracy Power Meter (Option 19)

Status Panel

The status panel and features illustrated in this section are unique to the HIPM and to the particular
measurement and view that is selected. Press the Chevron icon to collapse the status panel and view the
corresponding minimized status panel.

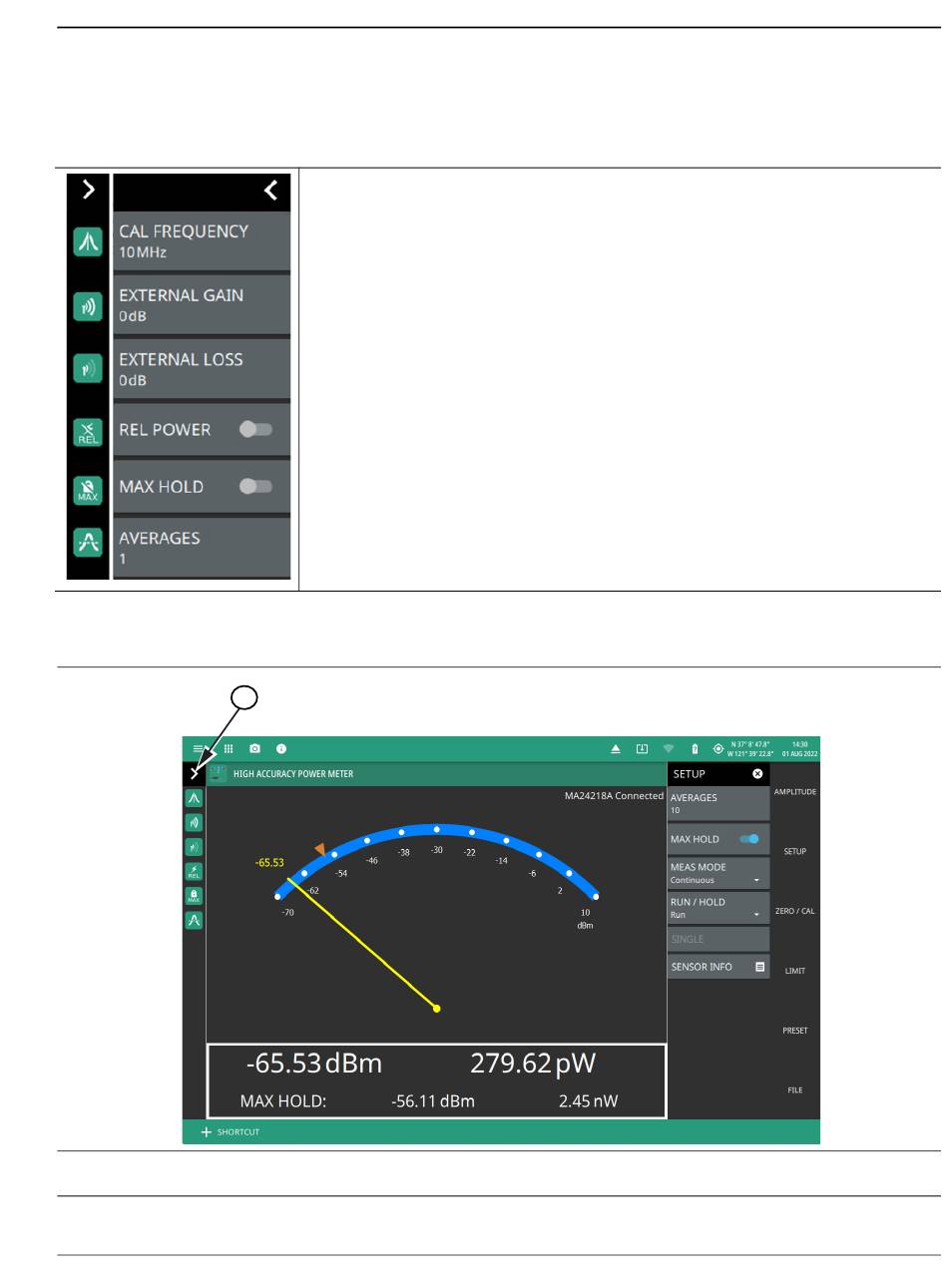

Figure 2-2. High Accuracy Power Meter Status Panel and minimized status panel
1. Minimized Status Panel: This menu provides quick access to common settings used for power meter
measurements.
Figure 2-3. High Accuracy Power Meter Display with minimized status panel
High Accuracy Power Meter MG
CAL FREQUENCY: Sets the measurement frequency. The frequency value is sent
to the power sensor to apply the appropriate calibration factor.
EXTERNAL GAIN: Press this submenu key to toggle relative power On or Off.
This measurement shows the relative level of the desired base
power level input to your instrument. When ON, the message
EXTERNAL LOSS: Press this submenu key to toggle relative power On or Off.
This measurement shows the relative level of the desired base
power level input to your instrument. When ON, the message
REL POWER: Toggles relative power On or Off. This measurement shows the
relative level of the desired base power level input to your instrument. For example,
if you are measuring a 10 dBm signal, and REL POWER is enabled, then a drop to
7 dBm will show as –3 dB and 50 %.
MAX HOLD: Max Hold retains the highest power level measurement.
AVERAGES: Sets the number of measurements to be averaged.
1
