2-4 AMPLITUDE Menu

2-4 AMPLITUDE Menu

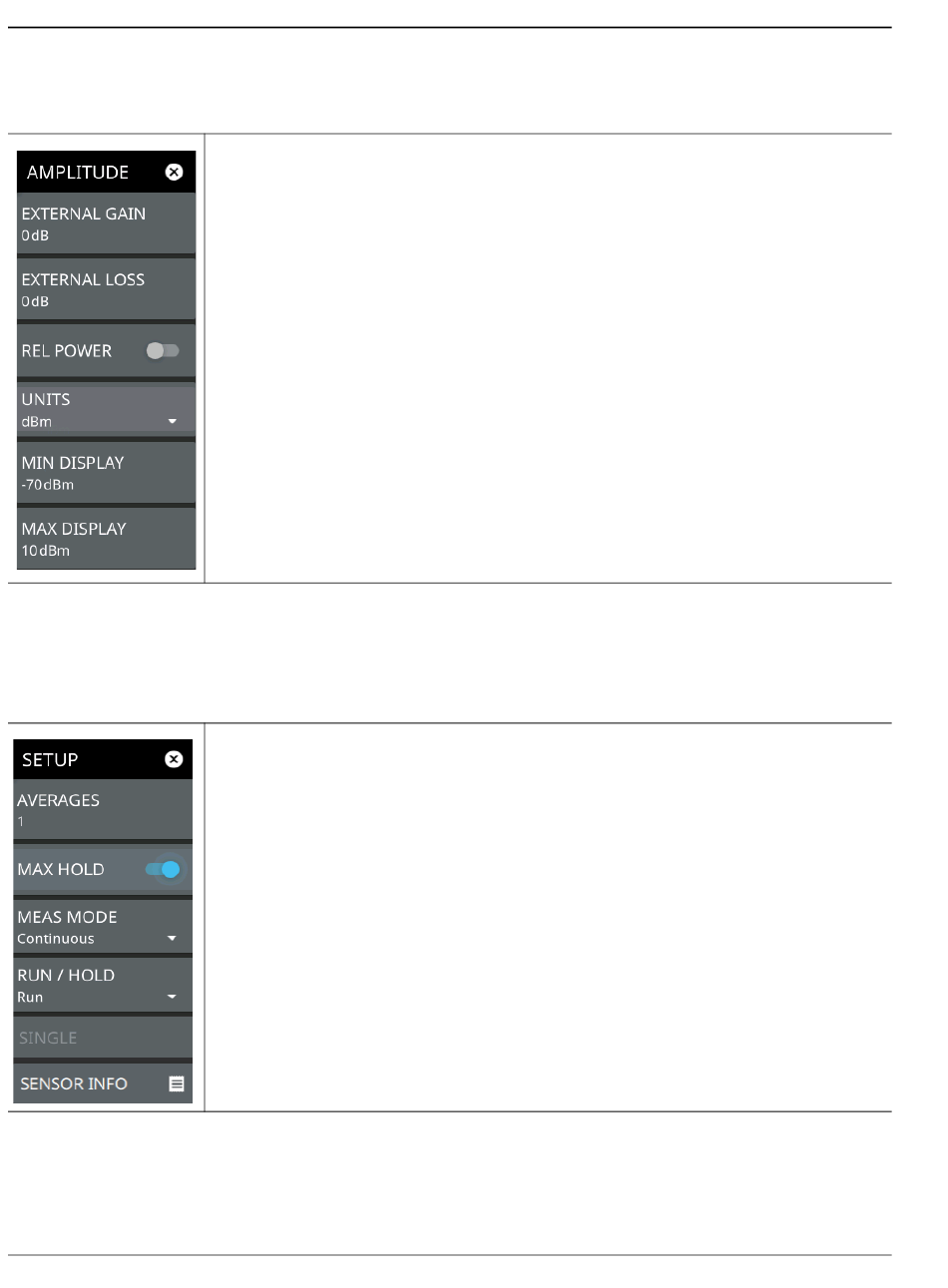

Figure 2-5. High Accuracy Power Meter AMPLITUDE Menu
2-5

SETUP Menu

Figure 2-6. High Accuracy Power Meter SETUP Menu
2-6
EXTERNAL GAIN: Press this submenu key to toggle relative power On or Off. This
measurement shows the relative level of the desired base
power level input to your instrument. When ON, the message
EXTERNAL LOSS: Press this submenu key to toggle relative power On or Off. This
measurement shows the relative level of the desired base
power level input to your instrument. When ON, the message
REL POWER: Toggles relative power On or Off. This measurement shows the relative
level of the desired base power level input to your instrument. For example, if you are
measuring a 10 dBm signal, and REL POWER is enabled, then a drop to 7 dBm will show
as –3 dB and 50 %.
UNITS: Selects the measurement units of either dBm or watts.
MIN DISPLAY: Sets the minimum value of the analog scale
MAX DISPLAY: Sets the maximum value of the analog scale.
AVERAGES: Sets the number of measurements to be averaged.
MAX HOLD: Sets the displayed measurement to show the maximum measured power
when enabled, and places a marker on the scale at the maximum measured value. Note
that changing any parameter resets this feature. If averaging is selected
(AVERAGES > 1), then Max Hold displays the maximum value of non-averaged data.
MEAS MODE: Sets the measurement to Continuous or Single mode. Continuous will
cycle through the average count continuously. Single will cycle through the average count
just once and then switch to Hold mode. Single measurements must be triggered each
time by using the Single button below.
RUN/HOLD: Sets the current measurement to Run or Hold. In Run mode, the power
meter takes measurements according to the MEAS MODE setting. In Hold mode, the
power meter finished the current measurement and then stops measuring.
SINGLE: Triggers a measurement when the MEAS MODE is set to Single.
SENSOR INFO: Displays details of the power sensor connected to the analyzer.
PN: 10580-00492 Rev. C
High Accuracy Power Meter (Option 19)
