FIRST TEAM SPORTS SCORPION Assembly And Setup Instructions

FIRST TEAM SPORTS

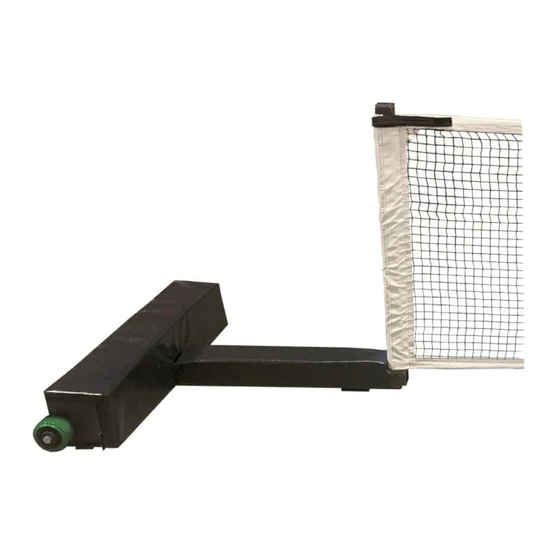

SCORPION™ PORTABLE PICKLEBALL
BI L L O F MAT E RI ALS
( 2 ) P o r t a b l e B a s e
( 6 ) R u b b e r F o o t P a d
( 4 ) 2 x 4 T r a n s p o r t W h e e l
( 1 ) N e t
( 4 ) 2 " S q u a r e P l u g
U n p a c k s h i p m e n t a n d r e p o r t a n y s h o r t a g e s t o F i r s t T e a m i m m e d i a t e l y , 1 - 8 0 0 - 6 4 9 - 3 6 8 8
1 . R e m o v e e a c h b a s e u n i t f r o m i t s p a l l e t .
U s i n g ( 1 ) ½ " x 3 " H e x B o l t p r o v i d e d s e c u r e ( 1 ) 2 x 4 T r a n s p o r t W h e e l i n t o t h e t h r e a d e d
2 .
h o l e o n e a c h s i d e o f t h e P o r t a b l e B a s e b a l l a s t b o x . T i g h t e n b o l t u n t i l s n u g . D o n o t
o v e r t i g h t e n , w h e e l s s h o u l d r o t a t e f r e e l y .
3 . N e x t , l i f t u p o n t h e P o r t a b l e B a s e E x t e n s i o n ( s e e F i g u r e A a b o v e ) t o h i n g e t h e u n i t
b a c k w a r d t o a l l o w a c c e s s t o t h e u n d e r s i d e o f t h e b a l l a s t a n d p o r t a b l e b a s e e x t e n s i o n .
U s i n g ( 2 ) # 1 0 x 3 / 4 " F l a t h e a d P h i l l i p s M a c h i n e S c r e w s a n d ( 2 ) # 1 0 L o c k W a s h e r s ,
4 .
a t t a c h ( 1 ) R u b b e r F o o t P a d t o e a c h s e t o f t h r e a d e d h o l e s p r o v i d e d . ( o n e p a d i s
A sse mb ly & Se t u p In s t ru c tio n s
1 / 2 1 / 2 0 2 2
( 1 2 ) # 1 0 x 3 / 4 " F l a t h e a d P h i l l i p s M a c h . S c r e w
( 1 2 ) # 1 0 L o c k W a s h e r
( 4 ) ½ " x 3 " H e x B o l t
( 2 ) B a s e P a d
( 2 ) B a s e E x t e n s i o n P a d
