FIRST TEAM SPORTS, INC.
10/10

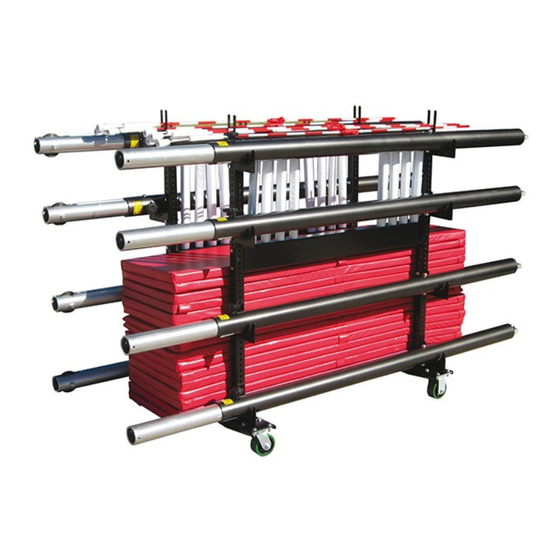

FT5025 Volleyball Storage Cart – "The Mule"
Assembly Instructions

BILL OF MATERIALS

(2) UPRIGHT ASSEMBLY
(1) BASE PLATE
(2) ROPE COVER HOLDER
(4) POST/ANTENNA BRACKET
(8) POST BRACKET (note 2 additional are welded to each UPRIGHT ASSEMBLY)
(2) RIGID CASTER
(2) SWIVEL CASTER
(24) 3/8" x 1 ¼" HEX BOLT
(32) 3/8" x 2 ½" HEX BOLT
(48) 3/8" FLATWASHER
(56) 3/8" LOCKWASHER
(56) 3/8" HEX NUT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The Mule FT5025 and is the answer not in the manual?

Questions and answers

Related Manuals for FIRST TEAM SPORTS The Mule FT5025

Summary of Contents for FIRST TEAM SPORTS The Mule FT5025

  • Page 1 FIRST TEAM SPORTS, INC. 10/10 FT5025 Volleyball Storage Cart – “The Mule” Assembly Instructions BILL OF MATERIALS (2) UPRIGHT ASSEMBLY (1) BASE PLATE (2) ROPE COVER HOLDER (4) POST/ANTENNA BRACKET (8) POST BRACKET (note 2 additional are welded to each UPRIGHT ASSEMBLY)

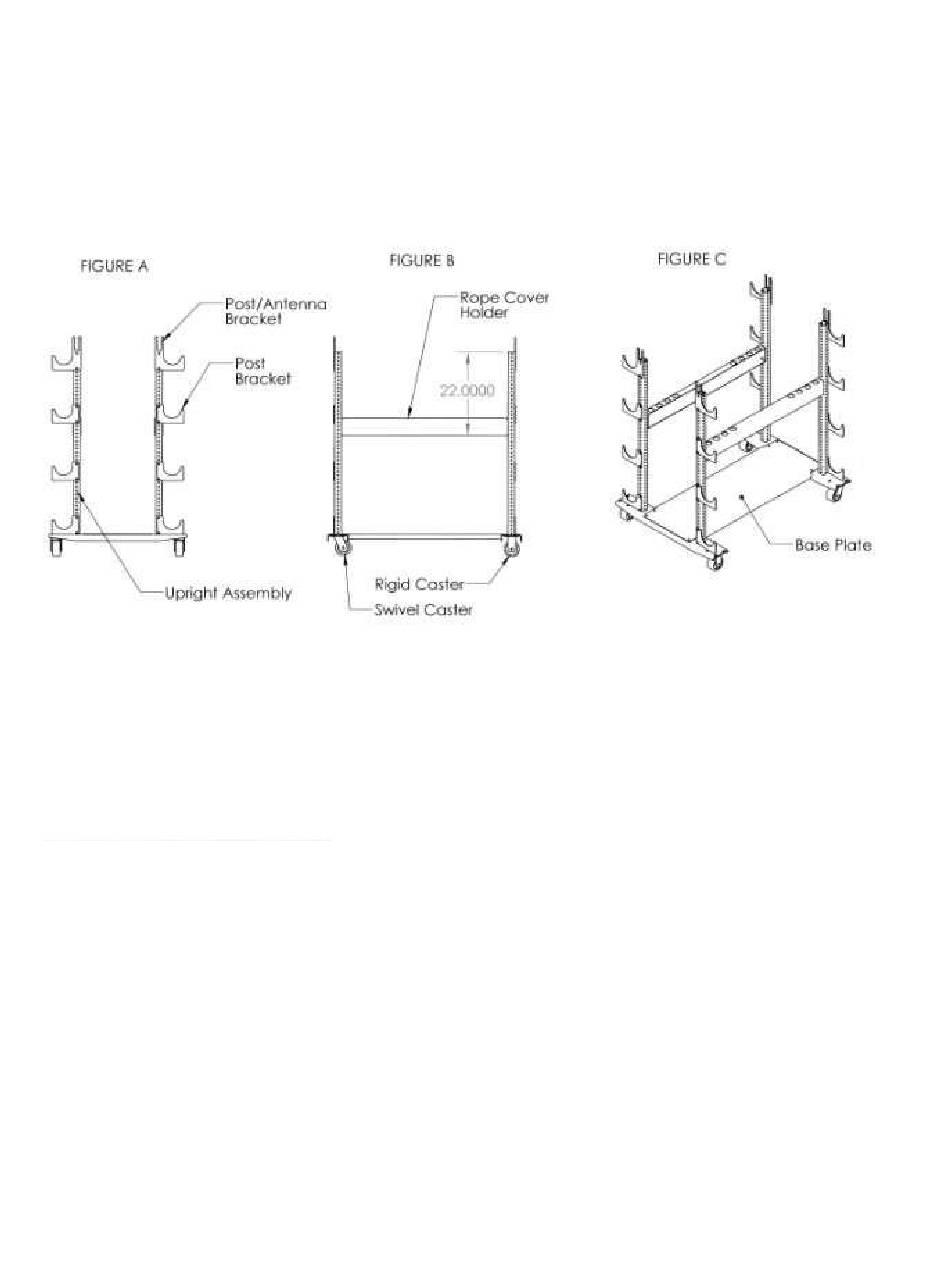

  • Page 2 Cross check items against bill of materials. If any parts are short, please contact First Team customer service immediately at 1-888-884-6677. 1. Using (4) 3/8”x 1 ¼” hex bolts, (8) 3/8” flat washers, (4) 3/8” lock washers and (4) 3/8” hex nuts attach the BASE PLATE to one of the UPRIGHT ASSEMBLY units as shown in figure C.
