FIRST TEAM SPORTS, INC.
HARDWARE BILL OF MATERIALS
Below is a list of the nuts and bolts needed to assemble the Omni base.
(14) 5/16" x ¾" Hex Bolt
(14) 5/16" Lock Washer
(2) 3/8" x 1" Hex Bolt
(2) 3/8" x 1 ¼" Hex Bolt
(4) 3/8" Flat Washer
(4) 3/8" Lock Washer
(2) 3/8" Hex Nut
OMNI PORTABLE BASE
Assembly Instructions
(1) ½" x 4" Square U-Bolt
(2) ½" x 6" Hex Bolt
(2) ½" x 6" Hex Bolt
(2) ½" Lock Washer
(2) ½" Hex Nut
(2) ½" Center Lock Nut

Advertisement

loading
Need help?

Need help?

Do you have a question about the OMNI PORTABLE BASE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FIRST TEAM SPORTS OMNI PORTABLE BASE

  • Page 1 FIRST TEAM SPORTS, INC. OMNI PORTABLE BASE Assembly Instructions HARDWARE BILL OF MATERIALS Below is a list of the nuts and bolts needed to assemble the Omni base. (14) 5/16" x ¾” Hex Bolt (1) ½” x 4" Square U-Bolt (2) ½”...
  • Page 2 COMPONENT BILL OF MATERIALS Below is a photo showing the name of each component part.
  • Page 3 STEP 1 Turn BASE TANK upside down. Place one CASTER PLATE into each caster cavity at the back of the tank being sure to align the holes in the CASTER PLATE with the threaded inserts molded into the BASE TANK cavity as shown below. STEP 2 Place one CASTER on top of each CASTER PLATE being sure to align the holes in the CASTER to the holes in the CASTER PLATE and threaded inserts in the BASE TANK.
  • Page 4 STEP 3 Turn BASE TANK right side up again. Remove LID and pour a minimum 400 lbs. of sand (maximum 500 lbs.) into the BASE TANK. 60 lb. Sand tubes are available for purchase at any home builders supply store. DO NOT USE WATER- WATER MAY LEAK FROM BASE CAUSING IT TO BECOME UNSTABLE - DO NOT USE W ATER! Replace LID.
  • Page 5 STEP 5 Check POST for level side to side as shown below. If POST needs adjustment, slightly loosen 5/16" hex bolts and adjust the POST until level. Tighten bolts when POST is level side to side. NOTE: YOU WILL LEVEL THE POST FRONT TO BACK IN A LATER STEP. STEP 6 Assemble the WHEELS to the TRANSPORT HANDLE using (1) ½”...
  • Page 6 STEP 7 NOTE: You will need a ratchet with ¾” socket and long extension for the following steps. Insert (2) ½ ” x 6" hex bolts into BASE TANK as shown below. Be sure to insert bolts with no more than 1-2 threads peeking out the opposite side of the hole for now.
  • Page 7 STEP 9 THIS STEP IS VERY TRICKY. IT MAY TAKE SEVERAL ATTEMPTS! Grab the AXEL NUT with the threaded hole pointing down. Slide (1) AXEL NUT between the side of the POST and the BASE TANK as shown. Line up the threaded hole in the AXEL NUT with the ½”...
  • Page 8 Photo above shows AXEL NUT properly secured. After completing second AXEL NUT, TRANSPORT HANDLE should hinge forward properly raising unit onto front wheels. STEP 10 ” Loosely connect BRACE CLAMP to back side of POST using (1) 4" square U-bolt, (2) ½ lock washer and (2) ½”...
  • Page 9 STEP 11 For this step please note the TANK BRACES smashed ends. One end is smashed shorter than the other. The LONG smash attaches to the back of the BASE TANK, the short end connects to the BRACE CLAMP. Attach TANK BRACES to back of BASE TANK. Locate one threaded insert on the left and right sides of the BASE TANK near the back.

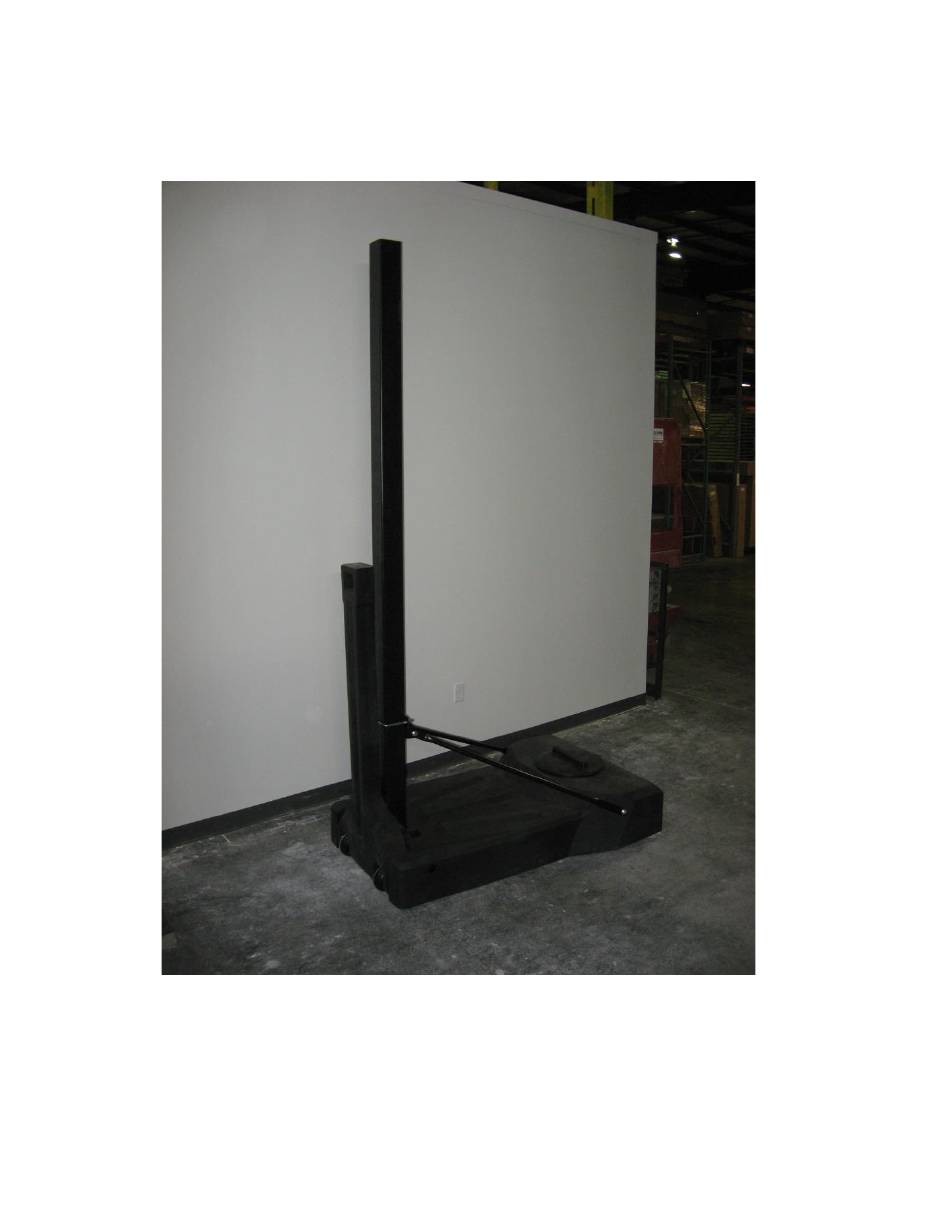

  • Page 10 STEP 13 Using a level, check the post front to back for plumb as shown in the photo below. You may need to slightly adjust where the BRACE CLAMP is located on the post up or down to get post perfectly level front to back.
