FIRST TEAM SPORTS, INC
Uni-Champ Extension Arm Assembly Instructions
Bill of Materials
A (4) 5/16" Hex Nut
B (4) Extension Arm
C (1) I-Frame Backboard Support
D (1) Extension Arm Support
E (1) Insta- Just Bracket
F (4) 5/16" Lock washer
NOTE: Immediately unpack all components and cross check against bill of materials. Report
any shortages to First Team customer service at 1-888-884-6677.
G (2) 4" U-Bolt
H (1) Lift Spring
I (4) ½" Lock washer
J (4) ½" Hex Nut
K (4) ½" x 10" Hex Bolt
L (4) ½" Locknut
M (8) ½" Nylon Flat washer
N (4) 5/16" x 1" Machine Bolt
O (4) 5/16" Flat washer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FIRST TEAM SPORTS Uni-Champ Series
Summary of Contents for FIRST TEAM SPORTS Uni-Champ Series
- Page 1 FIRST TEAM SPORTS, INC Uni-Champ Extension Arm Assembly Instructions Bill of Materials A (4) 5/16" Hex Nut G (2) 4" U-Bolt M (8) ½" Nylon Flat washer B (4) Extension Arm H (1) Lift Spring N (4) 5/16" x 1" Machine Bolt C (1) I-Frame Backboard Support I (4) ½"...
- Page 2 ONCE EXTENSION ARM SUPPORT (PART D) IS CONNECTED TO UNI-STRUT BRACKET, PROCEED WITH FINAL ASSEMBLY INSTRUCTIONS BELOW. 1. Loosely attach the lower two extension arms to the extension arm support using a ½"x 10" hex bolt, ½" locknut and (2) ½" nylon flat washers. (Flat washers fit between extension arm support and extension arms to prevent paint rubbing) Then, attach the upper two extension arm to the extension arm support as described above, while doing so make sure to also attach the Insta-Just bracket using the same ½"x 10"...

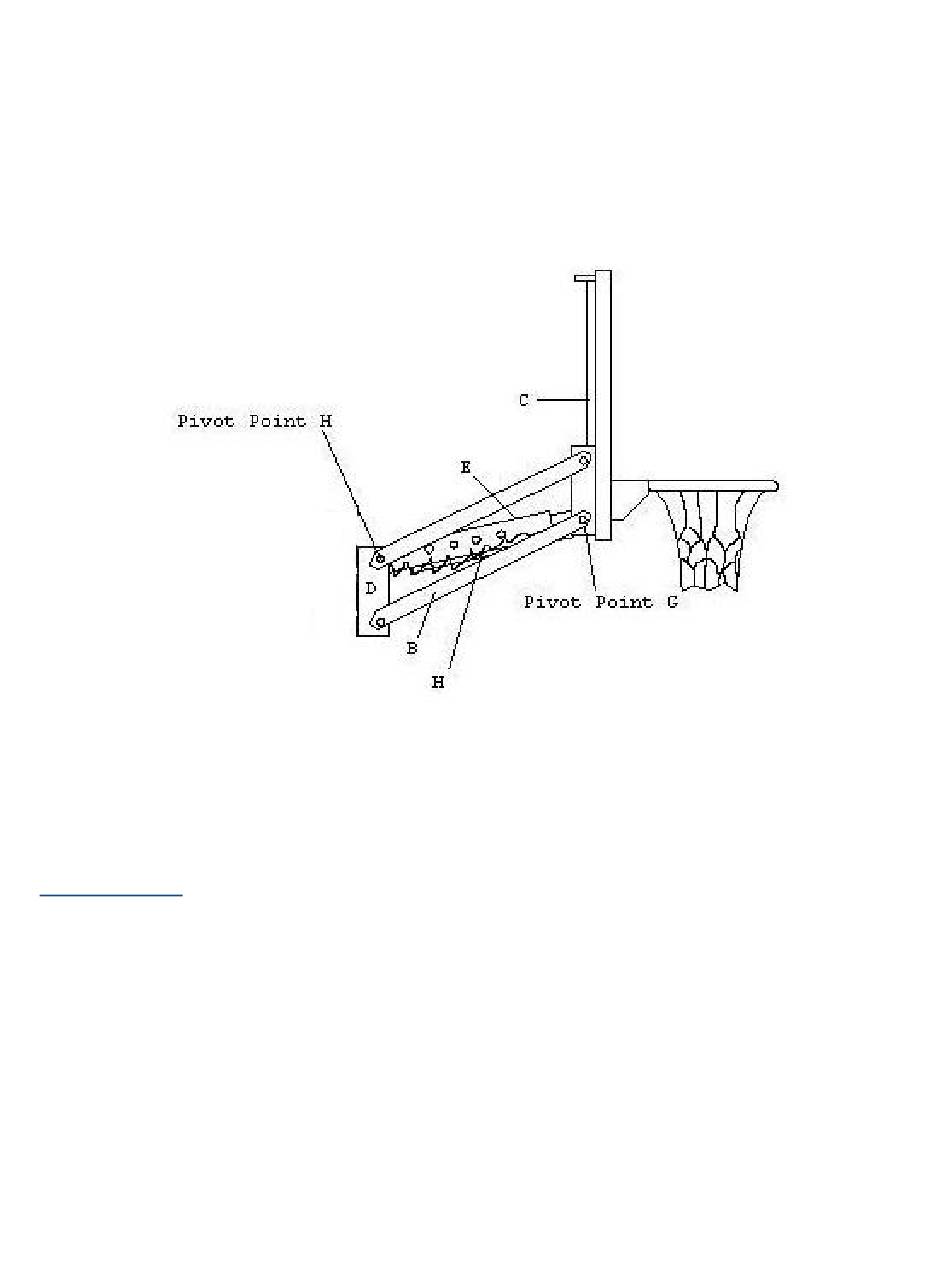

- Page 3 With the rim height adjusted all the way up, attach one lift spring from pivot point G to pivot point H. If you purchased a Uni-Champ III, Uni-Champ Select, Uni-Champ Turbo, Uni-Champ Nitro Or Uni-Champ Eclipse package you should have received 2 lift springs, attach one on either side of the Insta-Just bracket.
- Page 4 ADJUSTING THE RIM HEIGHT Your Uni-Champ series adjustable basketball system is adjustable from regulation 10' down to as low as 71/2' in 6-inch increments. To adjust the rim height, simply place a broomstick into the adjustment mechanism's cup shaped notch located on the backside of the backboard directly behind the rim.
