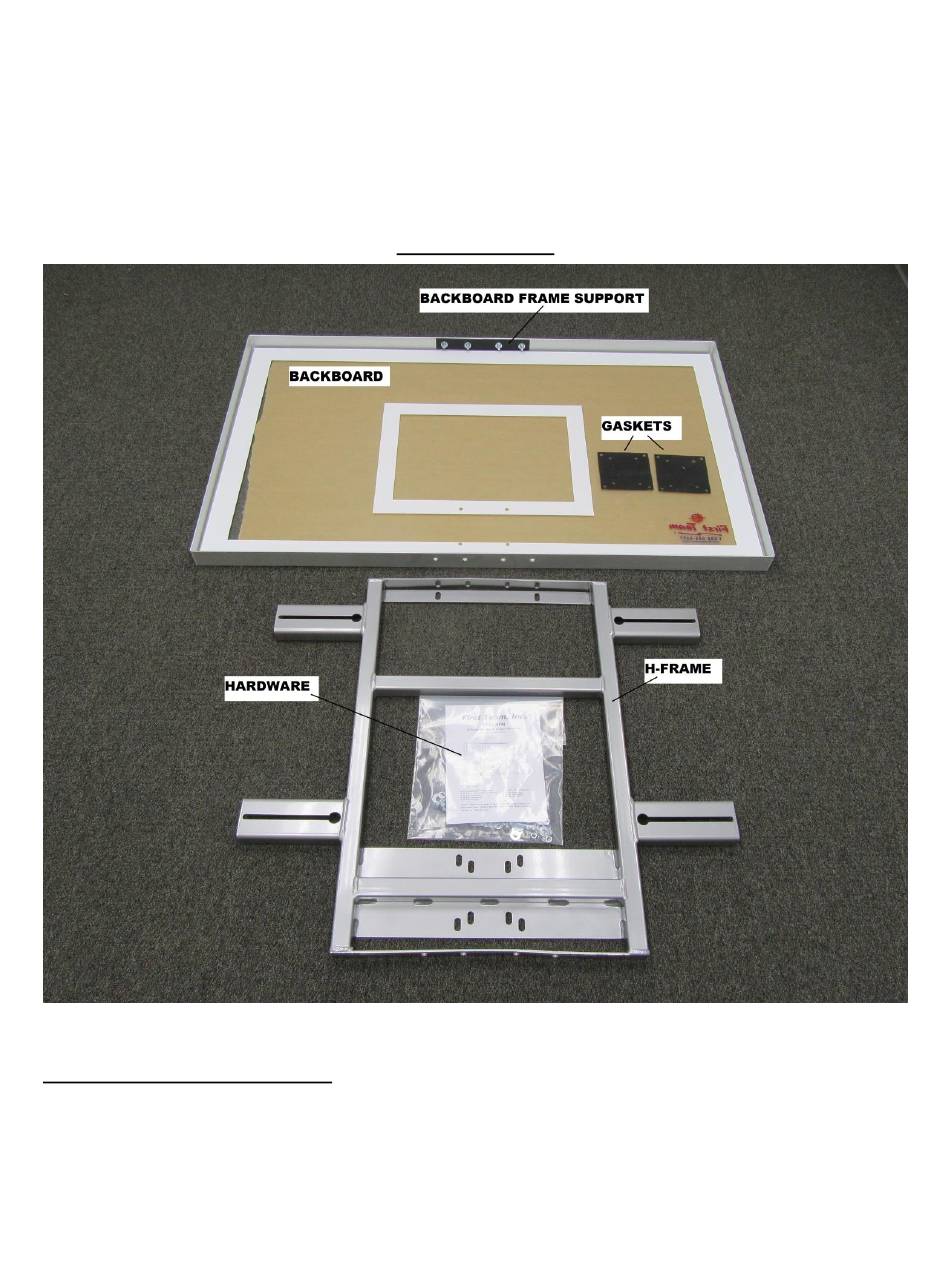

- Page 1 FIRST TEAM SPORTS, INC. FT220H ASSEMBLY INSTRUCTIONS rev. 06/02/2017 FIGURE A BILL OF MATERIALS (1) BACKBOARD (FT220) (2) RUBBER GASKET (1) H-FRAME (FT36-HFM) (1) BAG OF HARDWARE...
- Page 2 1. Unpack BACKBOARD and lay it face down on a working surface as shown in FIGURE A. 2. Unpack H-FRAME and lay it face down on a working surface as shown in FIGURE A. 3. Loosen and remove the BACKBOARD FRAME SUPPORT as shown below.
- Page 3 5. Next, lay the H-FRAME into the back of the backboard as shown below. Make sure to line up the holes in the RUBBER GASKET with the holes in the H-FRAME. Also make sure to line up the four holes at the top and bottom of the aluminum frame with the four holes in the steel straps at the top and bottom of the H-FRAME as shown below.
- Page 4 6. This step requires a ½” socket and screwdriver. Secure H-FRAME to top and bottom of BACKBOARD aluminum frame using four 5/16” machine screw, 5/16” flat washer, 5/16” lock washer and 5/16” hex nut as shown below. Make sure all rim holes are still in line, then tighten all 5/16”...
- Page 5 If needed, slip the head of the bolt through the large hole at the end of the slot then slide the bolt over to prevent the bolt from rotating during tightening. FIRST TEAM SPORTS, INC. 902 COREY ROAD HUTCHINSON, KS 67501 1-800-649-3688 www.firstteaminc.com...
