FIRST TEAM SPORTS, INC.
APOLLO™ BACKYARD VOLLEYBALL SET

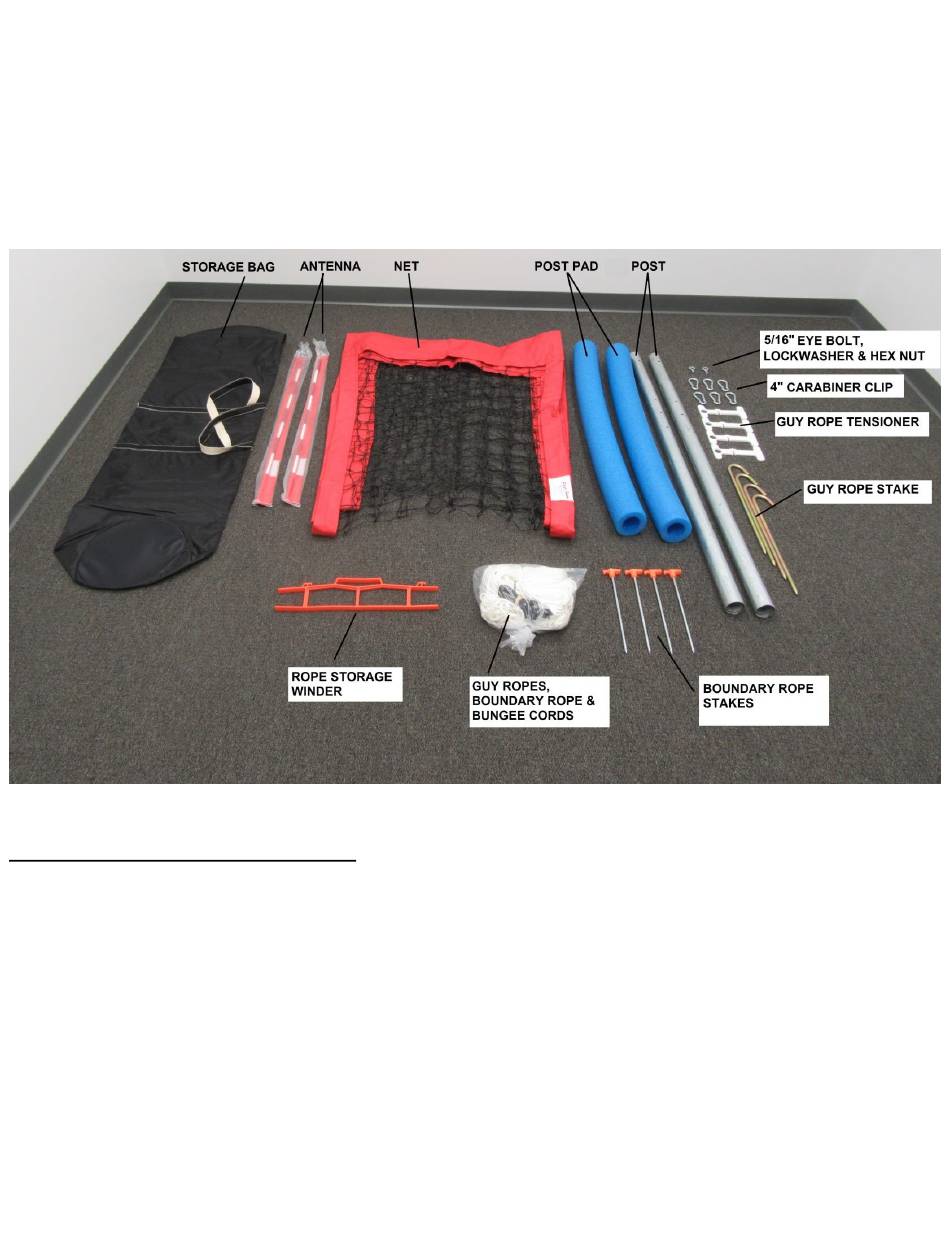

BILL OF MATERIALS
(1) STORAGE BAG
(2) ANTENNA
(1) VOLLEYBALL NET
(2) POST PAD
(2) VOLLEYBALL POST
(2) 5/16"x 1" EYEBOLT
(2) 5/16" LOCKWASHER
(2) 5/16" HEX NUT
(4) GUY ROPE
(1) BOUNDARY ROPE
(4) BUNGEE CORD
SETUP INSTRUCTIONS (2/19/2018)
(6) 4" CARABINER CLIP
(4) GUY ROPE TENSIONER
(4) GUY ROPE STAKE
(1) ROPE STORAGE WINDER
(4) BOUNDARY ROPE STAKES
Advertisement
Related Manuals for FIRST TEAM SPORTS APOLLO BACKYARD VOLLEYBALL SET
Summary of Contents for FIRST TEAM SPORTS APOLLO BACKYARD VOLLEYBALL SET
- Page 1 FIRST TEAM SPORTS, INC. APOLLO™ BACKYARD VOLLEYBALL SET SETUP INSTRUCTIONS (2/19/2018) BILL OF MATERIALS (6) 4” CARABINER CLIP (1) STORAGE BAG (4) GUY ROPE TENSIONER (2) ANTENNA (4) GUY ROPE STAKE (1) VOLLEYBALL NET (1) ROPE STORAGE WINDER (2) POST PAD...
- Page 2 1. Carefully unpack and cross check all components against the bill of materials. If there are any shortages, call First Team 1-800-649-3688. 2. Both POSTS are equipped with a push button style adjustment for three different net height settings. The shortest setting is for Jr. Volleyball, middle setting is Women’s/COED and tallest setting is Men’s.
- Page 3 4. Attach (1) 5/16” EYEBOLT, LOCKWASHER & HEX NUT to the top of both POSTS as shown below. Hold the nut with a ½” wrench while rotating the EYEBOLT to tighten. NOTE: LOCKWASHER & HEX NUT go to the inside of the round post. 5.
- Page 4 6. Connect one CARABINER CLIP to each EYEBOLT as shown below. 7. Loop two GUY ROPES through each CARABINER attached to the EYEBOLT at the top of each POST as shown below. 8. Attach one CARABINER CLIP to the large hole in each GUY ROPE TENSIONER...
- Page 5 9. Each GUY ROPE has a loop at each end. Attached one of the looped ends of each GUY ROPE to one of the CARABINER CLIPS you attached to the GUY ROPE TENSIONERS in step 8. (one rope per carabiner clip) 10.
- Page 6 11. Using a hammer or mallet, drive each GUY ROPE STAKE into the ground 6” at AWAY approximately a 45 degree angle. Angle the hooked top of the stake from the playing area as shown below. Repeat for all four GUY ROPE STAKES. 12.
- Page 7 14. Slide (1) POST PAD onto each POST. 15. Weave the GUY ROPE through the GUY ROPE TENSIONER as shown below. Repeat for all four GUY ROPES.
- Page 8 16. Carefully stand each POST upright as shown below. The GUY ROPES should allow the unit to stand. Be sure to position the bottom of each POST approximately where you want the POST to stand. (You will be able to make minor adjustments to this at the end of setup) 17.
- Page 9 18. ROPE BOUNDARY – The ROPE BOUNDARY is a continuous loop that has indicator marks positioned every 30’ along the loop. Lay ROPE BOUNDARY on the ground so it roughly sits 30’ wide x 60’ long. Be sure to line up the center marks with the POSTS.
- Page 10 20. Slide BOUNDARY ROPE STAKE through the BUNGEE CORD and drive BOUNDARY ROPE STAKE into the ground located 18” diagonally from the corner of the BOUNDARY ROPE. Repeat at other three corners. When complete, the BOUNDARY ROPE should be centered between the volleyball POSTS and pulled tight.
- Page 11 SETUP OF YOUR APOLLO BACKYARD VOLLEYBALL SET IS COMPLETE! FIRST TEAM SPORTS, INC. 902 COREY ROAD HUTCHINSON, KS 67501 1-800-649-3688...
