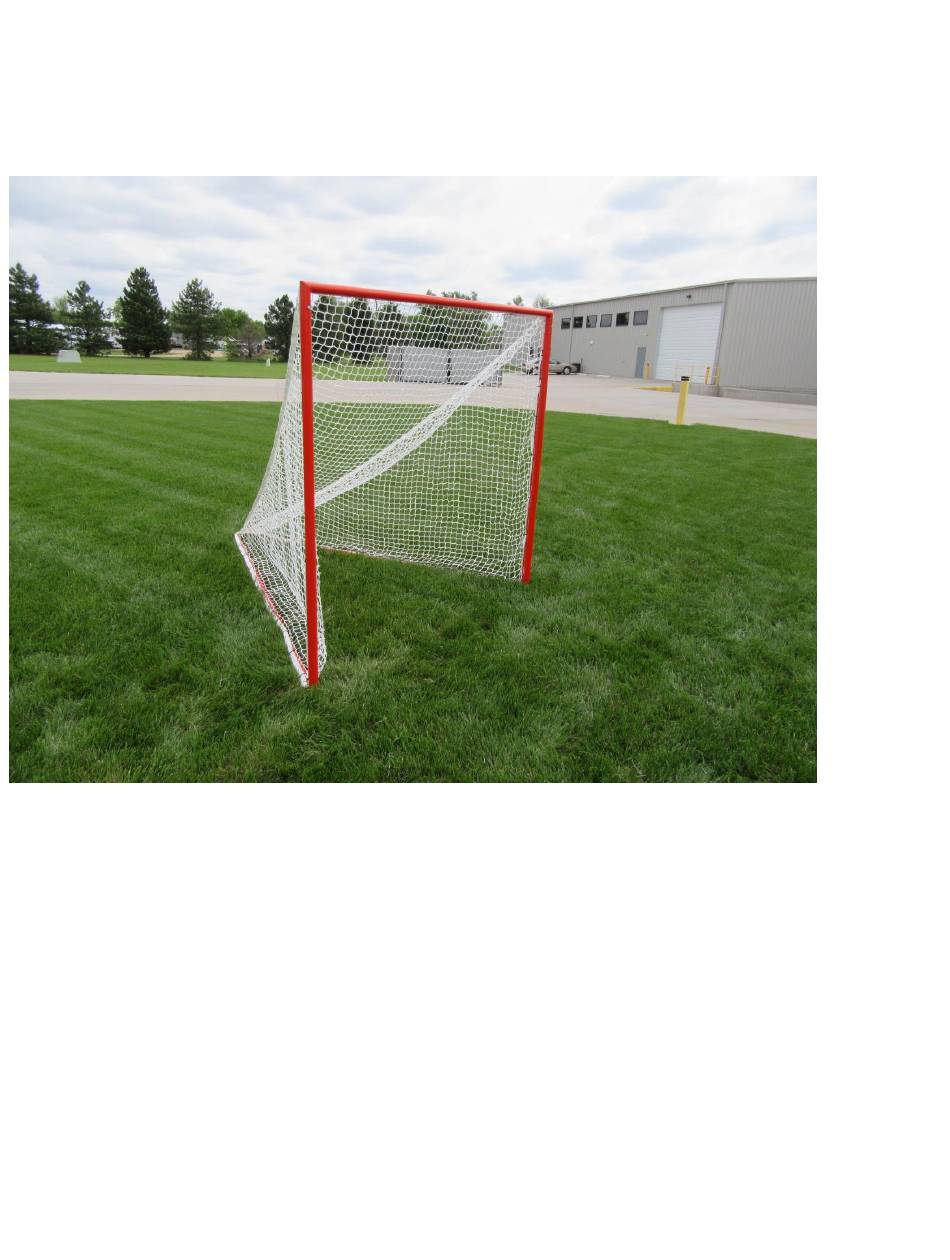

- Page 1 FIRST TEAM SPORTS, INC. WARLORD™ LACROSSE GOAL ASSEMBLY INSTRUCTIONS (rev. 3/6/2018)
- Page 2 BILL OF MATERIALS (1) Header Bar (2) Upright (2) Ground Bar (2) 3/8” Flange Nut (4) 3/8” x 1” Carriage Bolt (8) 3/8”x 3/4” Hex Bolt (8) 3/8” Flat Washer (12) 3/8” Lock Washer (4) 3/8” Wing Nut (2) 5/16” x 2.5” Quick Link (50) Net Tie (1) Ground Bar Connector Plate (2) Header Bar Net Lacing Strap...
- Page 3 NOTE: AN ASSEMBLY WRENCH HAS BEEN INCLUDED WITH YOUR LACROSSE GOAL. USE THIS WRENCH IF YOU DO NOT HAVE YOUR OWN. INSTRUCTIONS ARE SHOWN USING A SOCKET WRENCH. 1. Insert (1) 3/8” Flange nut into the hex hole in both GROUND BAR as shown. Connect (2) GROUND BAR to (1) GROUND BAR CONNECTOR PLATE.
- Page 4 3. Slide HEADER BAR onto UPRIGHTS as shown below. 4. Connect the HEADER BAR to the UPRIGHTS by screwing (2) 3/8” x 3/4” HEX BOLT, (2) 3/8” LOCK WASHER, and (2) 3/8” FLAT WASHER into the threaded holes on the HEADER BAR as shown. Repeat this step to complete the other side.
- Page 5 5. Slip (1) 3/8” x 1” CARRIAGE BOLT thru the open hole of the HEADER BAR NET LACING STRAP at both ends. Loosely connect CARRIAGE BOLT to STRAP using (1) 3/8” LOCK WASHER and (1) 3/8” WING NUT. Slip head of CARRIAGE BOLT through the “T” slots on the HEADER BAR as shown below. When head of CARRIAGE BOLT is proper seated into the bottom of all four “T”...
- Page 6 7. Using (1) NET TIE, connect the rear of the NET to the GROUND BAR CONNECTOR PLATE as shown. Then connect NET to the ring welded to the GROUND BAR at lower left and lower right corners of goal face. Connect only at corners for now! See below. 8.
- Page 7 NET TIE backwards through head of NET TIE. WARLORD LACROSSE GOAL ASSEMBLY IS COMPLETE NOTE: Your Warlord lacrosse goal is designed to be folded and stored without needing to remove the net. See website for details.
