FANSTAND TIP N ROLL BLEACHER ASSEMBLY

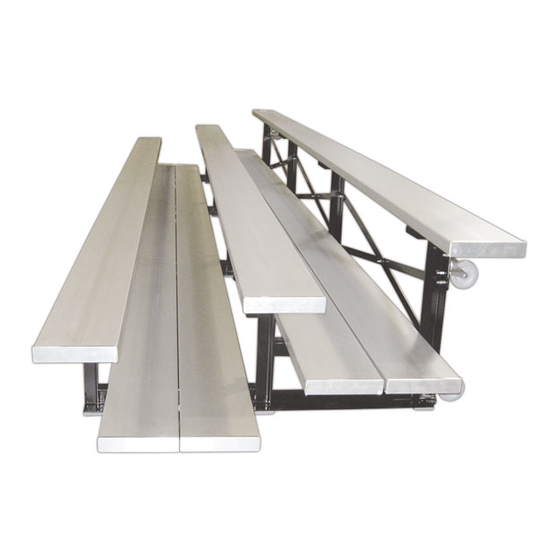

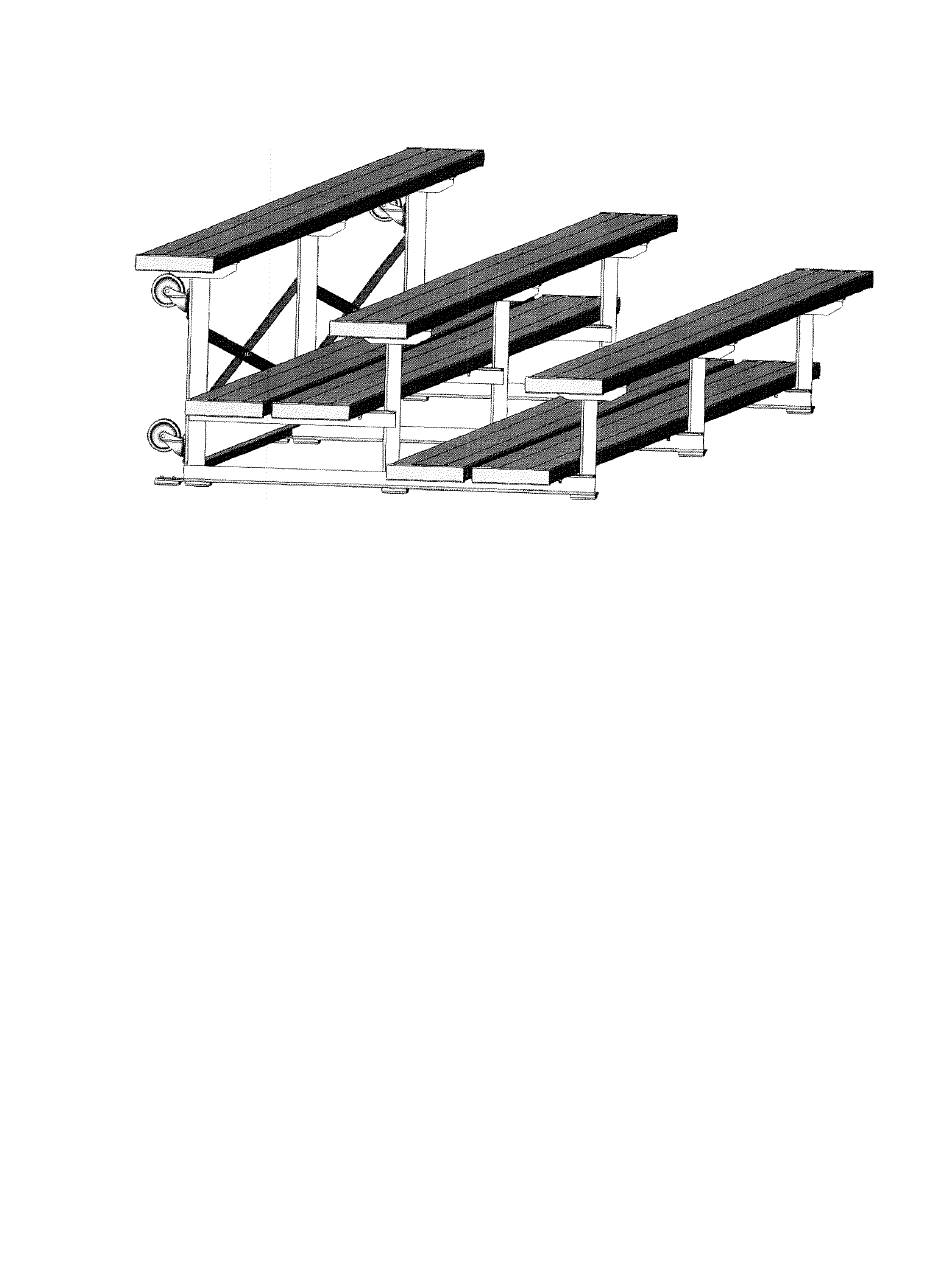

NOTE: THE ILLUSTRATIONS ARE FOR REFERENCE ONLY. YOUR BLEACHER MAY HAVE A
DIFFERENT CONFIGURATION.
These instructions are to be use in the assembly of First Team Sports' FanStand Tip N Roll bleacher system.
Read and follow the instructions carefully. Assembly should only be performed by skilled persons with at least
a basic knowledge of mechanics. REMEMBER: Bleachers can be dangerous. Their use can result in
bodily injury or death. Improper assembly can/will increase the chances of an accident!
If you have questions about the assembly or use of this bleacher design, contact First Team Sports, Inc.
1-888-884-6677

REQUIRED TOOLS:

Assembly of this bleacher design requires the use of basic tools. The following is a minimum
recommended set of tools required.
1 or more- 3/8" socket wrench(s) & extension driver(s)
1 or more - 3/8", ½" and 9/16"socket(s)
1 or more – 3/8", ½" & 9/16'' combination wrench(s)
1 each - Phillips screw driver
1 each - Framing Square
1 each - Tape Measure
(rev 8/6/16)
