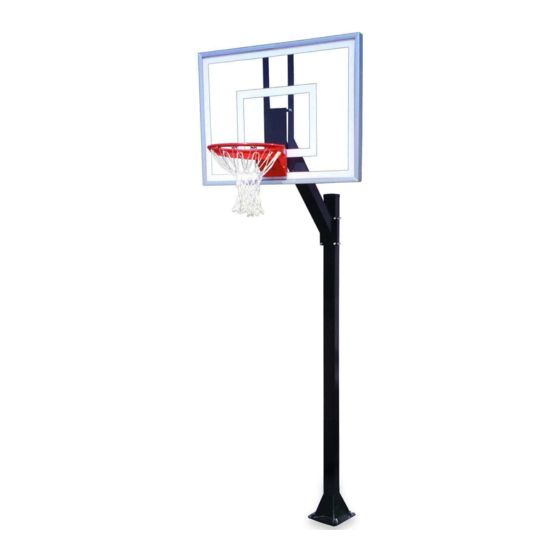

FIRST TEAM SPORTS Legacy Series Assembly Instructions

FIRST TEAM SPORTS, INC
Legacy Series Assembly Instructions

Bill of Materials

A (1) Vertical Post
B (1) Extension Arm
C (1) Backboard Frame
D (1) 4" Post Cap
E (2) ½"x 4" Square U-Bolt
F (2) ½"x 8" Hex Bolt
G (4) ½" Lockwasher
H (4) ½" Hex Nut
I (2) ½" Centerlock Nut
NOTE: Immediately unpack all components and cross check against bill of materials. Report any
shortages to First Team customer service at 1-888-884-6677.
1. Locate and dig a 12" minimum diameter x 36" deep hole.
2. Fill hole with wet premixed concrete, insert vertical pole leaving 108" above desired playing surface. Vibrate
to settle concrete. Place 4" square post cap on top of pole.
3. Make sure post is straight and plumb. Brace while drying if necessary. Allow 24 hours minimum drying time
before continuing assembly.
4. Using 4"x ½" U-Bolts, lockwashers and nuts attach the extension arm to the vertical pole either at the
desired rim height or at ground level. If you are mounting the extension arm so rim will be 10', the bottom of
extension arm plate will be 94" from playing surface.

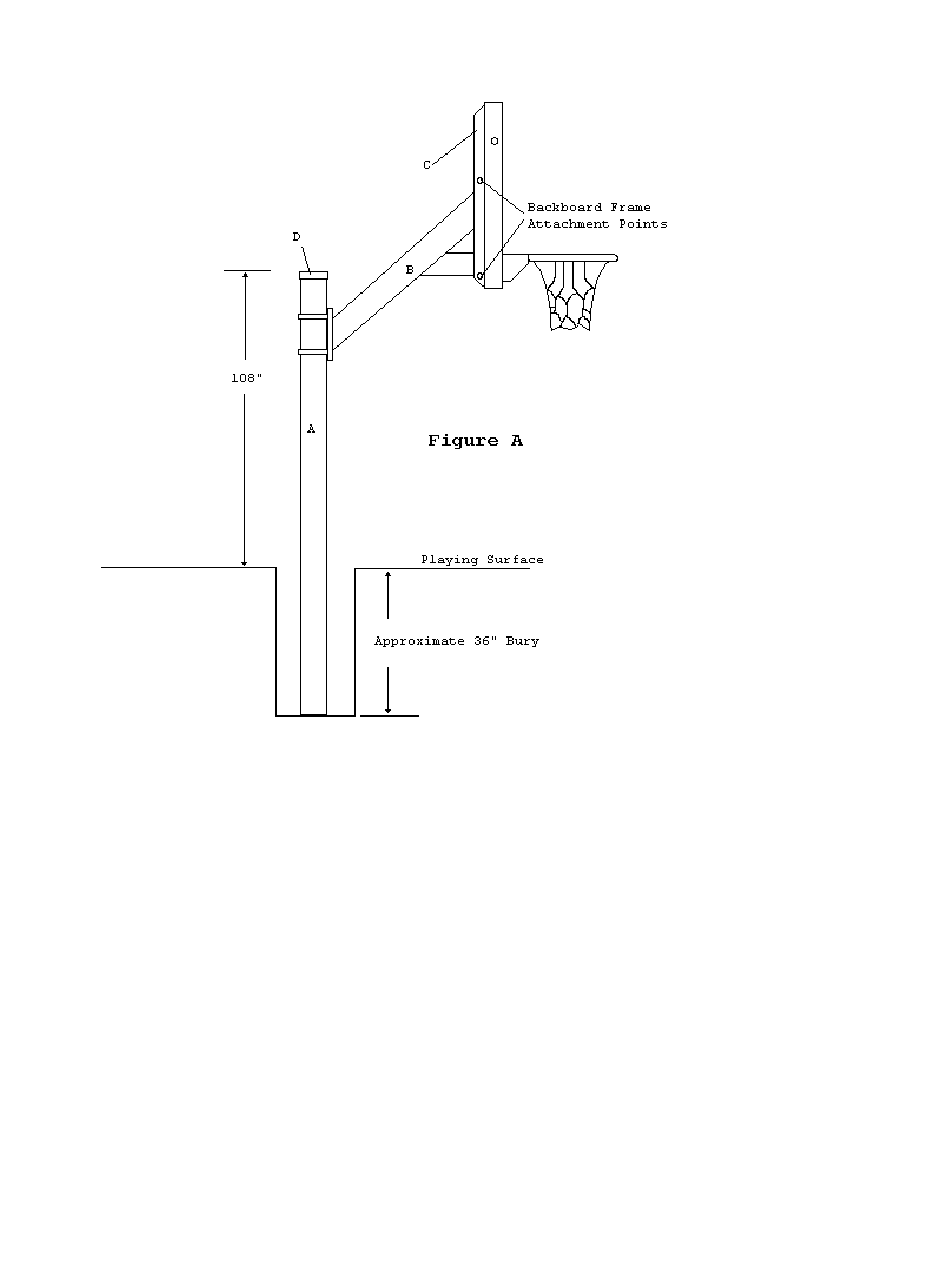

5. Using (2) ½"x 8" hex bolt and (2) centerlock nut, attach H-Frame Backboard Mount (Part C) to Extension
Arm (Part B) as shown in Figure A.
J (4) 1/2" Flatwasher
K (8) 1"x 5/16" Machine Screw
L (8) 5/16" Flatwasher
M (8) 5/16" Lockwasher
N (8) 5/16" Hex Nut
