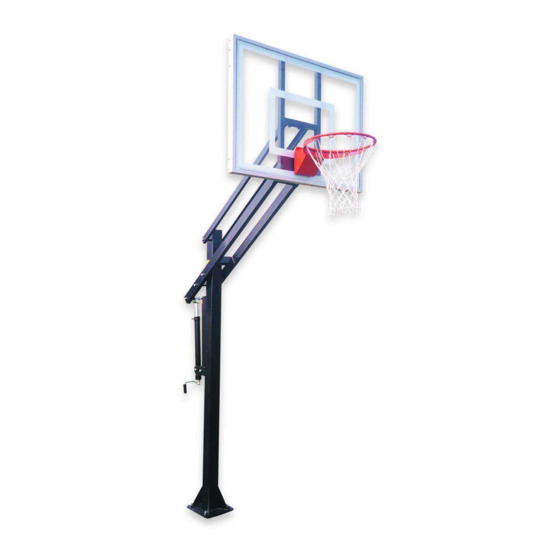

FIRST TEAM SPORTS Attack Series Assembly Instructions

FIRST TEAM SPORTS, INC

Attack Series Assembly Instructions

Bill of Materials

A (1) Vertical Post

B (1) Main Extension Arm

C (2) Parallel Linkage

D (1) H-Frame Backboard

Mount

E (1) Spring-Assist Cartridge

F (1) Crank Adjustment

Cylinder

G (2) ½" x 4 ½" Hex Bolt

H (5) ½" x 10" Hex Bolt

*NOTE: Immediately unpack all components and cross check against bill of materials. Report

I (1) ½" x 11" Hex Bolt

J (8) ½" Locknut

K (4) 5/8" Anchor Bolt

L (12) 5/8" Hex Nut

M (1) Anchor Footing

Template

N (4) Anchor Footing Rebar

O (8) 5/16" x 1" Machine

Screw

P (8) 5/16" Flat Washer

Q (8) 5/16" Lockwasher

R (8) 5/16" Hex Nut

S (1) Rim Height Sticker

T (1) Rim Height Indicator

U (4) 5/8" Lockwasher

V (1) Anti-Seize Lubricant

W (2) Pivot Stop Caps

Table of Contents

Do you have a question about the Attack Series and is the answer not in the manual?

Page 1 FIRST TEAM SPORTS, INC Attack Series Assembly Instructions Bill of Materials A (1) Vertical Post I (1) ½" x 11" Hex Bolt Q (8) 5/16" Lockwasher B (1) Main Extension Arm J (8) ½" Locknut R (8) 5/16" Hex Nut C (2) Parallel Linkage K (4) 5/8"...

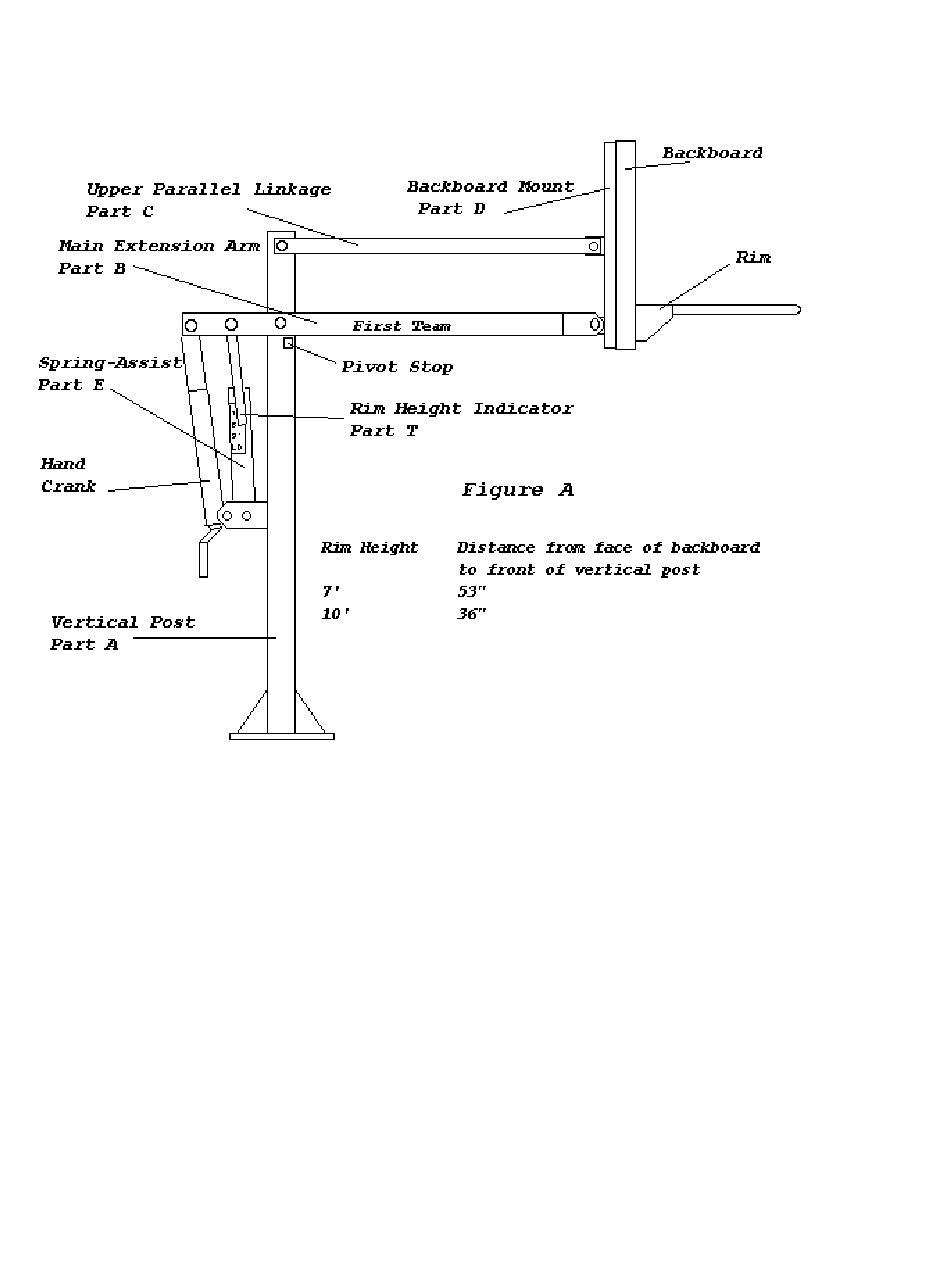

Page 2 any shortages to First Team customer service at 1-888-884-6677. 1. CAUTION: YOUR SPRING-ASSIST CARTRIDGE IS SHIPPED UNDER TENSION. DO NOT REMOVE WOODEN SPREADER BLOCK FROM SPRING-ASSIST UNTIL INSTRUCTED TO DO SO. FOLLOW INSTRUCTIONS CAREFULLY. 2. Choose the proper location to dig for the concrete footing. Use the distance chart in figure A to help you make your decision.
Page 3 FROM THIS POINT FORWARD DURING ASSEMBLY, BE SURE TO SPREAD A GENEROUS LAYER OF ANTI-SEIZE LUBRICANT OVER THE ENTIRE SHAFT OF EACH ½” HEX BOLT. THIS LUBRICANT WILL GUARD AGAINST RUST, AND HELP ENSURE PROPER PIVOT OPERATION IN YEARS TO COME. NOTICE: Anti-Seize lubricant is EXTREMELY MESSY.
Page 4 10’ mark on the sticker. See Figure A for a diagram of a completed height indicator assembly. Note: It is advisable to wait up to two weeks to allow the anchor footing to fully cure before aggressive play. FIRST TEAM SPORTS, INC. 902 COREY ROAD HUTCHINSON, KS 67501 TOLL FREE: 888-884-6677...
