FIRST TEAM SPORTS, INC.

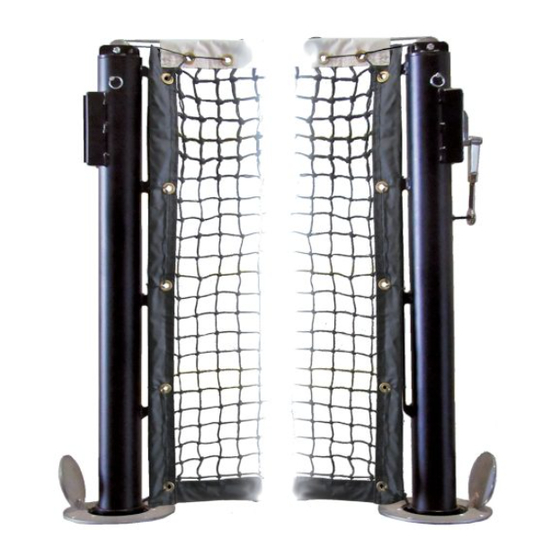

GUARDIAN TENNIS & PICKLEBALL POST SYSTEMS
BILL OF MATERIALS
(2) Upright Post
(1) Internal Winch
(1) Hook Plate
(2) Collar
(1) Net
(2) PVC Sleeve (TNPS package only)
(1) Standard Anchor (TNPS package only)
(1) Standard Center Strap (TNPS package only)
(2) Socket w/Lid (TNSO package only)
(1) Flush Anchor (TNSO package only)
(1) Flush Surface Center Strap (TNSO package only)
(8) ¼" x ½" Tapered Head Philips Machine Screw
(2) ¼" x ½" Hex Bolt
NOTE: Immediately unpack all components and cross check against bill of materials.
Report any shortages to First Team customer service at 1-888-884-6677.

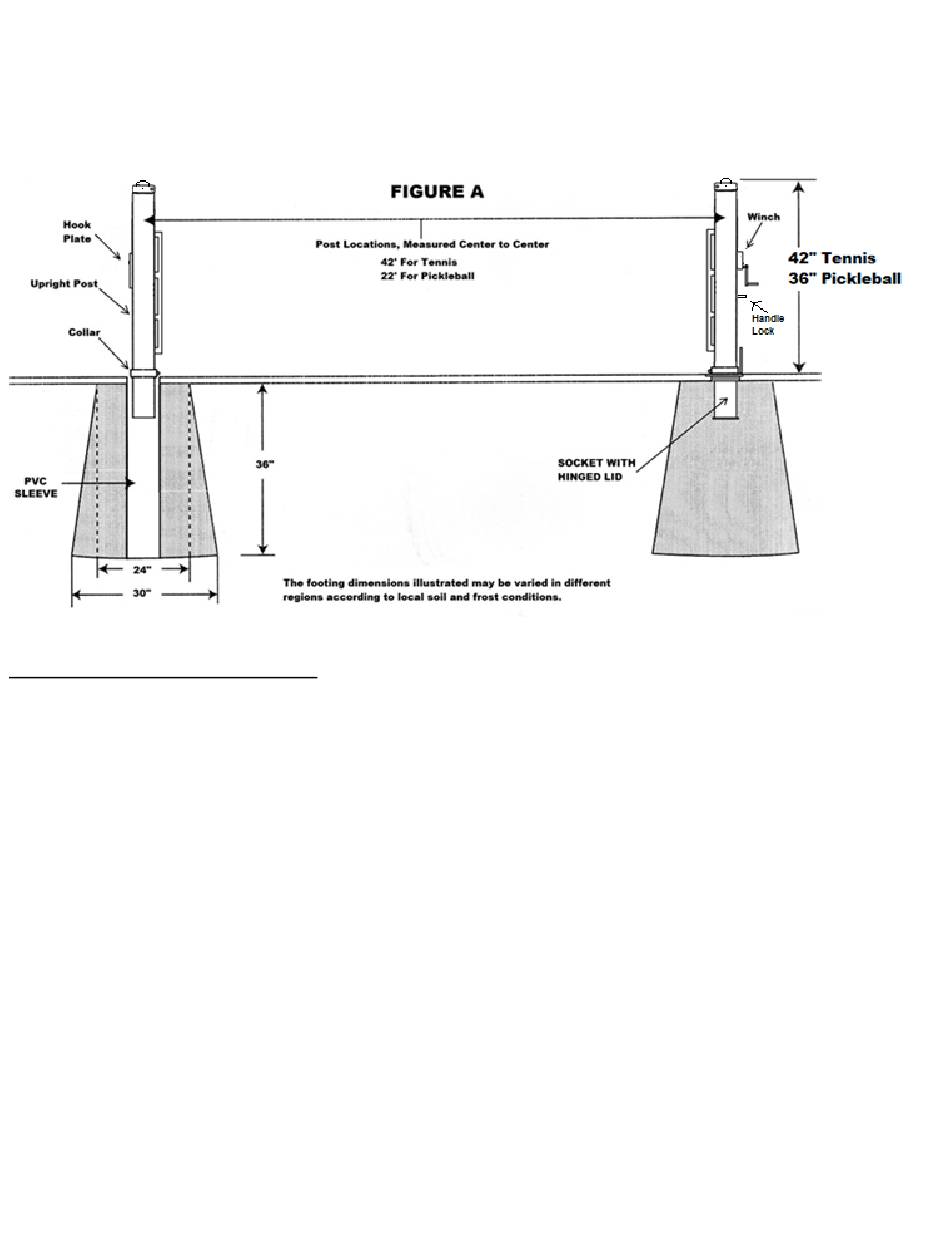

1. Determine the proper location for both post footings and dig according to the footing detail shown in
Figure A. Take note distance from post to post is different for Tennis or Pickleball courts. Locate
hole accordingly.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FIRST TEAM SPORTS GUARDIAN TNPS
Summary of Contents for FIRST TEAM SPORTS GUARDIAN TNPS
- Page 1 FIRST TEAM SPORTS, INC. GUARDIAN TENNIS & PICKLEBALL POST SYSTEMS BILL OF MATERIALS (2) Upright Post (1) Internal Winch (1) Hook Plate (2) Collar (1) Net (2) PVC Sleeve (TNPS package only) (1) Standard Anchor (TNPS package only) (1) Standard Center Strap (TNPS package only)
- Page 2 PICKLEBALL: Turn crank handle counterclockwise until center of net measures 34” above playing surface. No center strap needed for pickleball net. DO NOT OVER TIGHTEN NET, DOING SO CAN DAMAGE THE UPRIGHT POSTS AND/OR FOOTINGS! FIRST TEAM SPORTS, INC. * 902 COREY ROAD * HUTCHINSON, KS 67501 1-800-649-3688 * www.firstteaminc.com...
- Page 3 FIGURE B...
