Related Manuals for FIRST TEAM SPORTS WARMONGER LACROSSE GOAL
Summary of Contents for FIRST TEAM SPORTS WARMONGER LACROSSE GOAL

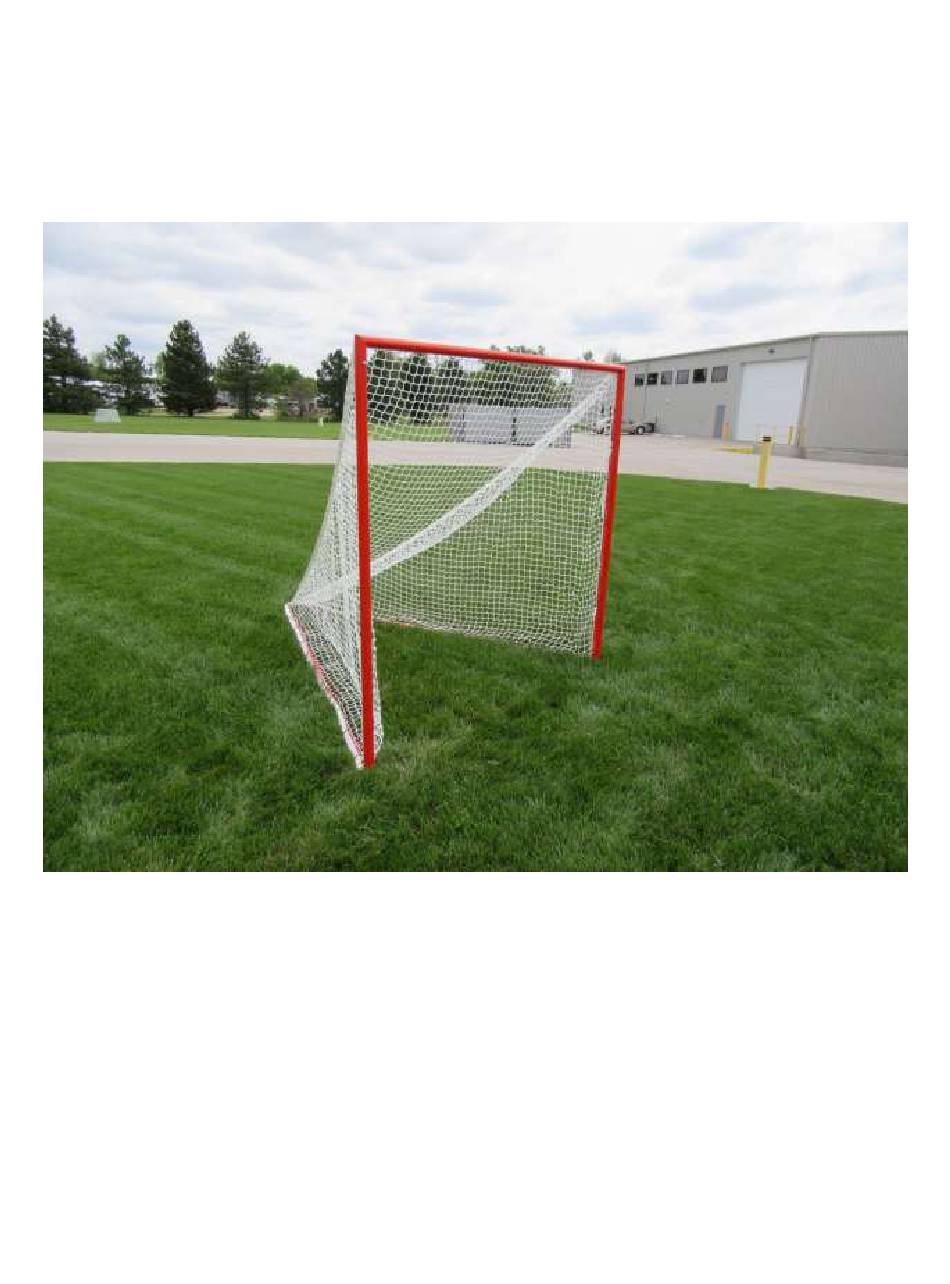

- Page 1 FIRST TEAM SPORTS, INC. WARMONGER™ LACROSSE GOAL ASSEMBLY INSTRUCTIONS (rev. 4/26/17)
- Page 2 BILL OF MATERIALS (1) Header Bar (2) Upright (2) Ground Bar (4) Splice Connectors (4) 3/8”x 2” Hex Bolt (4) 3/8” Flat Washer (4) 3/8” Lock Nut (50) Net Tie (1) V-Shaped Ground Bar Connector (1) Net (included with complete Warmonger only) *NOTE: Immediately unpack all components and cross check against Bill Of Materials.
- Page 3 1. Connect (2) GROUND BAR to (1) V-SHAPED GROUND BAR CONNECTOR. Depress spring button on V-SHAPED GROUND BAR CONNECTOR and insert into GROUND BAR until spring button snaps in place on GROUND BAR. See pics below. 2. Connect (1) SPLICE CONNECTOR to the opposite end of both GROUND BARS as shown below.
- Page 4 4. Connect (1) SPLICE CONNECTOR to top of both UPRIGHTS as shown below. NOTE: Spring Button should seat into outside most hole. (use hole furthest away from goal opening) 5. Slide HEADER BAR onto UPRIGHTS as shown below.
- Page 5 6. With head of 3/8” x 2” HEX BOLT seated into slot on front of HEADER BAR, connect each side of HEADER BAR to UPRIGHTS using (1) 3/8” x 2” HEX BOLT, (1) FLAT WASHER and (1) LOCK NUT as shown below. 7.
- Page 6 8. Using (1) NET TIE at each spot, connect NET to upper left and upper right extreme corners of goal face. Connect only at corners for now! See below. 9. Using (1) NET TIE, connect rear of NET to back of V-SHAPED GROUND BAR CONNECTOR as shown.
- Page 7 NOTE: NET TIES are releasable to make net replacement easy. To release NET TIE: depress trigger then pull body of NET TIE backwards through head of NET TIE. WARMONGER LACROSSE GOAL ASSEMBLY IS COMPLETE...
