Teknion CWTF Installation Manuals page 17

custom wood
Section: TABLES
Description:
CONFERENCE TABLE
ATTACH CURVED OUTER PANEL
P1

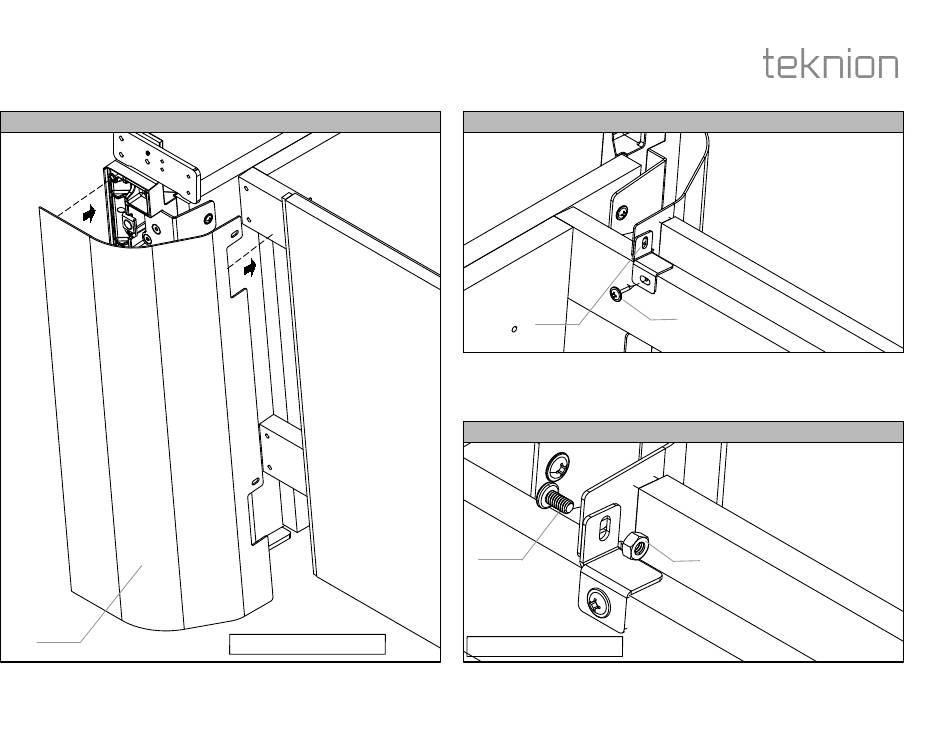

STEP 11d: Attach curved metal Panel to the table using magnets attached to the panel.
Installation Guides
NOTE: For Enclosed base only.
ATTACH AND SECURE BRACKET
P2
STEP 12d: Attach and secure bracket to the rail as shown.
SECURE CURVED PANEL
P4
NOTE: For Enclosed base only.
STEP 13d: Secure curved panel using nut and bolt as shown.
Date: May 2022 Page No:
TCW_101
P3
P5
17 of 21
