Teknion complements Installation Manual

Height-adjustable tables
Hide thumbs Also See for complements:

Advertisement

Quick Links

Download this manual
complements
Section:
HEIGHT-ADJUSTABLE TABLES
Description:
HA TABLES - QUICK CONNECT

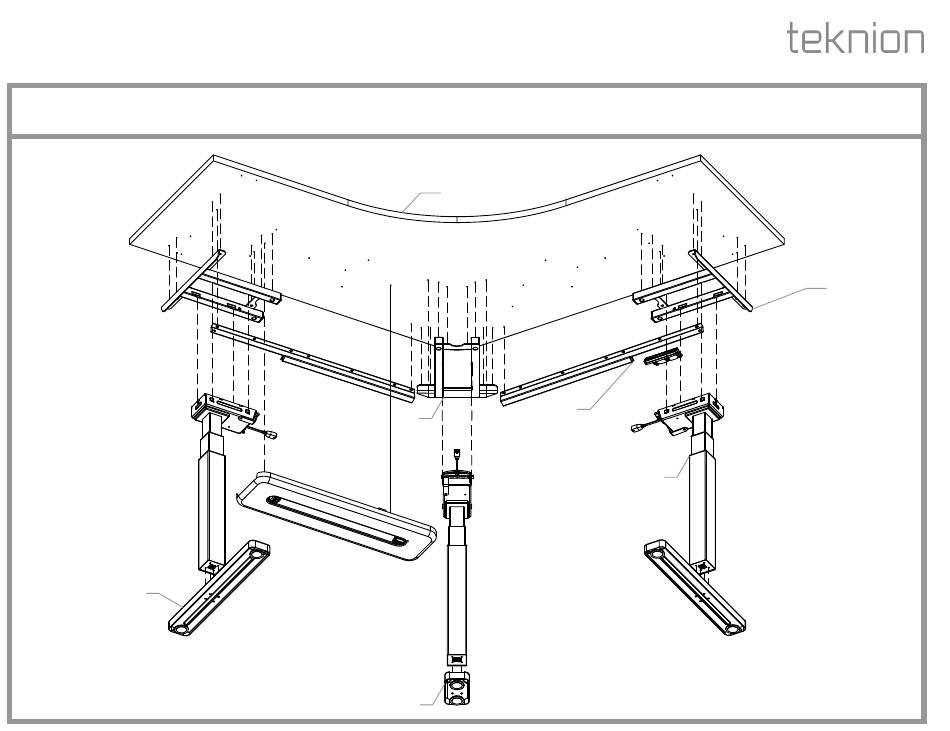

hiSpace Basic 120 HA Freestanding Table Base Only (YNS), HA Worksurface for hiSpace Basic 120 (WBS), HA
Worksurface with Radius Corners for hiSpace Basic 120 (WJS) hiSpace Height-Adjustable Leg Riser Kit (YSRK)
B6
Installation Guides
A1
B3
B2
B7
Date:
Oct 2022
COM_137
B4A
1 of 12
Page No:
Rev. No: 2
B1

Advertisement

loading
Need help?

Need help?

Do you have a question about the complements and is the answer not in the manual?

Questions and answers

Related Manuals for Teknion complements

Summary of Contents for Teknion complements

  • Page 1 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 1 of 12 Page No: Description: HA TABLES - QUICK CONNECT COM_137 Rev. No: 2 hiSpace Basic 120 HA Freestanding Table Base Only (YNS), HA Worksurface for hiSpace Basic 120 (WBS), HA...
  • Page 2 COM_137 Rev. No: 2 Part and Product Identification A1 - HA Worksurface for hiSpace E - Complements Plastic Tray Cable Mgmt (YEYS) x1 Basic 120 (WBS) x 1 B10 - hiSpace Motor Cable (N09-9455/10) x 2 E1 - Plastic Tray Cable Management...
  • Page 3 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 3 of 12 Description: HA TABLES - QUICK CONNECT COM_137 ATTACH BRACKETS TO WORKSURFACE ATTACH REINFORCEMENT BAR STEP 1: Attach Legs Mount Brackets to Worksurface as shown above. STEP 2: Attach Reinforcement Bar to Worksurface as shown above.
  • Page 4 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 4 of 12 Description: HA TABLES - QUICK CONNECT COM_137 ATTACH LEGS TO WORKSURFACE SECURE LEGS TO WORKSURFACE STEP 3A: Attach legs to Worksurface as shown above. Line up the mating holes on the leg STEP 4A: Push Legs to Outer side of the Worksurface.
  • Page 5 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 5 of 12 Description: HA TABLES - QUICK CONNECT COM_137 ATTACH LEGS TO WORKSURFACE SECURE LEGS TO WORKSURFACE NOTE: Fixed Leg Assembly shown Below NOTE: Fixed Leg Assembly shown Below STEP 3B: Attach legs to Worksurface as shown above.
  • Page 6 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 6 of 12 Description: HA TABLES - QUICK CONNECT COM_137 SECURE LEGS TO BRACKETS - 1 SECURE LEGS TO BRACKETS - 2 NOTE: Steps 5 to 8 are identical for Extended height and Fixed height Configurations.
  • Page 7 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 7 of 12 Description: HA TABLES - QUICK CONNECT COM_137 ATTACH FEET TO LEGS FASTEN FEET TO LEGS STEP 7: Position feet to the mating concentric holes on the leg...
  • Page 8 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 8 of 12 Description: HA TABLES - QUICK CONNECT COM_137 DISASSEMBLE FELT COVER ATTACH WIRING BRACKET NOTE: Only for Extended Electric (9E) NOTE: Only for Extended Electric (9E) STEP 9: Attach legs to Worksurface as shown above.
  • Page 9 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 9 of 12 Description: HA TABLES - QUICK CONNECT COM_137 ATTACH CONTROL BOX NOTE: Only for Extended Electric (9E) STEP 11: Attach Control Box to Wiring Bracket.
  • Page 10 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 10 of 12 Description: HA TABLES - QUICK CONNECT COM_137 CONNECT WIRES NOTE: Only for Extended Electric (9E) NOTE: Can use Keypad (D06-4276) OR Toggle Switch (N01-7336) STEP 12: Connect wires as shown above.
  • Page 11 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 11 of 12 Description: HA TABLES - QUICK CONNECT COM_137 REASSEMBLE FELT COVER SECURE FELT COVER NOTE: Only for Extended Electric (9E) STEP 13: Attach Felt Cover as shown above.
  • Page 12 Installation Guides Section: HEIGHT-ADJUSTABLE TABLES Date: Oct 2022 Page No: 12 of 12 Description: HA TABLES - QUICK CONNECT COM_137 PLACE CABLE CLAMPS NOTE: Only for Extended Electric (9E) STEP 15: Attach Cable Clamps as shown above with screws provided...
