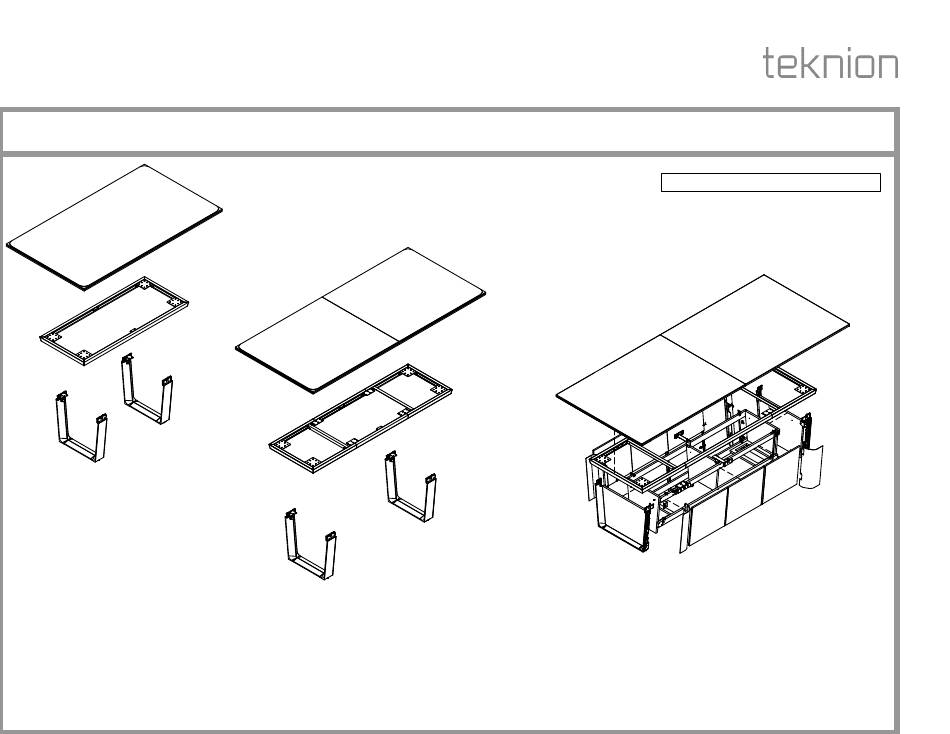

custom wood
Section:
TABLES
Description:
CONFERENCE TABLE
Flat Edge (CWTF), Knife Edge (CWTK), Flat Wood-Metal, Edge USB (CWTM) and Extended Knife, Edge Power Conference
Width 96" to 108"
Installation Guides
Width 120" to 192"
Table (CWTP)
Date:
May 2022
TCW_101
NOTE : Flat Edge (CWTF) used for reference
Enclosed Base Width 120" to 192"
Page No:
1 of 21
Rev. No: 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teknion CWTF
Summary of Contents for Teknion CWTF
- Page 1 Description: CONFERENCE TABLE TCW_101 Rev. No: 2 Flat Edge (CWTF), Knife Edge (CWTK), Flat Wood-Metal, Edge USB (CWTM) and Extended Knife, Edge Power Conference Table (CWTP) NOTE : Flat Edge (CWTF) used for reference Width 96" to 108" Enclosed Base Width 120" to 192"...
- Page 2 Part and Product Identification D - Extended Knife, A - Flat Edge Edge Power Width 96" to 108" Width 96" to 108" (CWTF) x1 (CWTP) x1 L - 1/4x20x1/2 Pan J - 1/4-20x5/8" Machine K - #10x0.875" Lg. Flat Edge...
- Page 3 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 3 of 21 Description: CONFERENCE TABLE TCW_101 INSTALL LEGS FASTEN LEG AND FRAME ASSEMBLY NOTE : For width 96" to 108" only NOTE : For width 96" to 108" only STEP 1a: Flip the Frame Assembly upside down and install the Legs as shown STEP 2a: Fasten the Legs and Frame Assembly using the screws provided...
- Page 4 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 4 of 21 Description: CONFERENCE TABLE TCW_101 INSTALL WORKSURFACE FASTEN FRAME AND WORKSURFACE NOTE : For width 96" to 108" only NOTE : For width 96" to 108" only STEP 3a: Flip the assembled structure upside down and place down the Worksurface STEP 4a: Fasten the Frame and Worksurface using the screws and brackets provided...
- Page 5 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 5 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH ADHESIVE TAP ATTACH GLASS ON THE SURFACE 6mm Glass top with back painted at the bottom. Adhesive Strips Wood Edged Subtop NOTE : Glass table tops are separated for shipment with glass top layer detached from the wood edged subtop surface.
- Page 6 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 6 of 21 Description: CONFERENCE TABLE TCW_101 INSTALL LEGS FASTEN LEG AND FRAME ASSEMBLY NOTE : For width 120" to 240" NOTE : For width 120" to 240" STEP 1b: Flip the Frame Assembly upside down and install the Legs as shown STEP 2b: Fasten the Legs and Frame Assembly using the screws provided...
- Page 7 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 7 of 21 Description: CONFERENCE TABLE TCW_101 PLACING FASTEN THE BRACKET AND RAIL NOTE : 300 mm Leg is self standing while NOTE : For width 120" to 240" 150 mm Legs will be needing a support to lean on NOTE : For width 120"...
- Page 8 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 8 of 21 Description: CONFERENCE TABLE TCW_101 INSTALL LEG AND FRAME ASSEMBLY FASTEN BRACKET AND RAIL NOTE : For width 120" to 240" NOTE : For width 120" to 240" STEP 6b: Install the other end Leg and Frame Assembly while holding the previous assembly STEP 7b: Fasten the Bracket and Rail using the screws provided from sides for support...
- Page 9 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 9 of 21 Description: CONFERENCE TABLE TCW_101 INSTALL LEG FASTEN LEG AND RAIL NOTE : For width 156" and above only NOTE : For width 156" and above, a Leg in the middle will be installed for support STEP 8b: Install a Leg in the middle by tilting the structure STEP 9b: Fasten the Leg and Rail using screws provided...
- Page 10 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 10 of 21 Description: CONFERENCE TABLE TCW_101 INSTALL WORKSURFACE FASTEN FRAME AND WORKSURFACE NOTE : For width 120" to 240" NOTE : For width 120" to 240" STEP 10b: Install the Worksurface by placing it on the Frame STEP 11b: Fasten the Frame and Worksurface using the screws and brackets provided...
- Page 11 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 11 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH ADHESIVE TAP ATTACH GLASS ON SURFACE TOP 6mm Glass top with back painted at the bottom. Adhesive Strips Wood Edged Subtop NOTE : Glass table tops are separated for shipment with glass top layer detached from the wood edged subtop surface.
- Page 12 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 12 of 21 Description: CONFERENCE TABLE TCW-101 ATTACH ADHESIVE TAP ATTACH GLASS ON SURFACE TOP 6mm Glass top with back painted at the bottom. Adhesive Strips Wood Edged Subtop NOTE : Glass table tops are separated for shipment with glass top layer detached from the wood edged subtop surface.
- Page 13 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 13 of 21 Description: CONFERENCE TABLE TCW_101 ATTACHAND SECURE LEGS TO THE FRAME ATTACH AND SECURE INNER FRAME RAILS NOTE: For Enclosed base only. NOTE: For Enclosed base only. STEP 1d: Attach Outer leg to the inner frame panel and secure with shoulder screws in the pre STEP 2d: Attach sides rails of the inner frame to the panel and secure with shoulder screws as drilled holes.
- Page 14 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 14 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH MID GABLE TO FRAME RAILS ATTACH INNER FRAME RAILS STEP 4b: Attach rails to the frame from other side. ATTACH PANEL TO LEGS NOTE: For Enclosed base only.
- Page 15 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 15 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH AND SECURE LEGS ATTACH FILLER STRIPES NOTE: For Enclosed base only. STEP 7d: Attach plastic filler stripes to the fixed or center panel. ATTACH FILLER STRIPES NOTE: For Enclosed base only.
- Page 16 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 16 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH FIXED CENTRE PANEL ATTACH SIDE PANEL NOTE: For Enclosed base only. NOTE: For Enclosed base only. STEP 9d: Attach and secure fixed panel to the frame with connector bolts in the pre drilled STEP 10d: Attach removable panel using Z-clips on the frame as shown.
- Page 17 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 17 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH CURVED OUTER PANEL ATTACH AND SECURE BRACKET STEP 12d: Attach and secure bracket to the rail as shown. SECURE CURVED PANEL NOTE: For Enclosed base only.
- Page 18 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 18 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH RAIL SECURE RAIL NOTE: For Enclosed base only. NOTE: For Enclosed base only. STEP 14d: Attach rail to the frame as shown. STEP 15d: Secure rail as shown.
- Page 19 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 19 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH RAIL SECURE RAIL AND BRACKET NOTE: For Enclosed base only. NOTE: For Enclosed base only. STEP 16d: Install rails to the frame. STEP 18d: Fasten the Bracket and Rail on each side using screws provided.
- Page 20 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 20 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH RAIL SECURE RAIL NOTE: For Enclosed base only. STEP 20d: Fasten and secure the frame with screws as shown. FASTEN RAIL AND BRACKET NOTE: For Enclosed base only.
- Page 21 custom wood Installation Guides Section: TABLES Date: May 2022 Page No: 21 of 21 Description: CONFERENCE TABLE TCW_101 ATTACH SUPPORT BRACKET SECURE WORKSURFACE NOTE: For Enclosed base only. NOTE: For Enclosed base only. STEP 22d: Attach and secure support bracket on each side. INSTALL WORKSURFACE NOTE: For Enclosed base only.
