complements
Installation Guides
Date: Feb 2022
Page: 1 of 14
Section:
HEIGHT-ADJUSTABLE TABLE
COM_154
Rev. 3

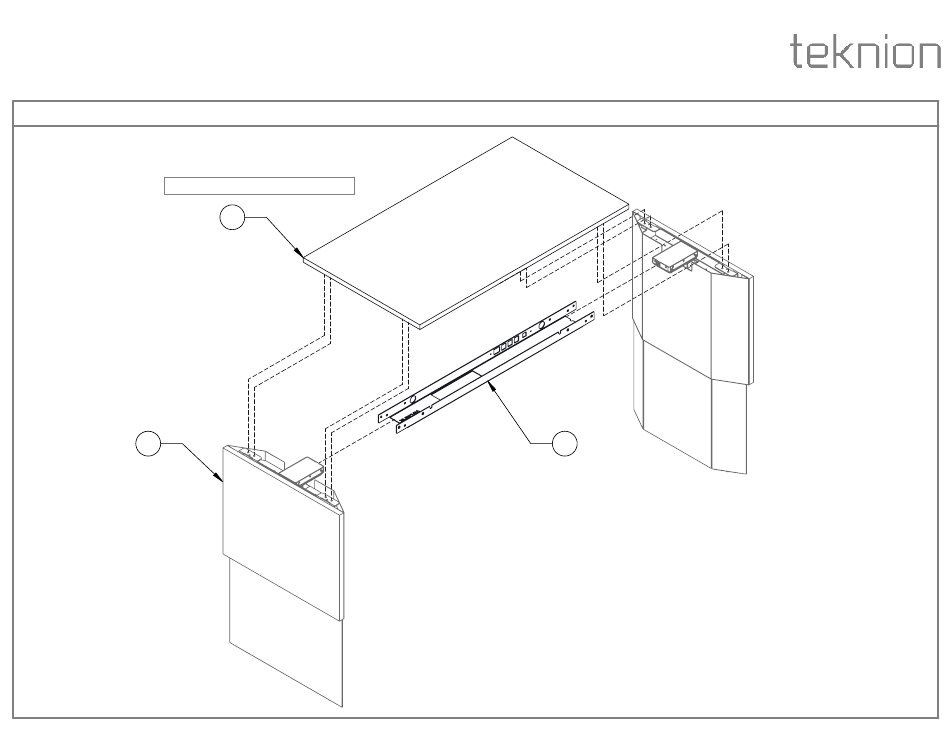

Navigate Freestanding Gable Leg Table (YTH)
Note: YTH 2952 is Shown as Example
9
5
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the complements YTH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknion complements YTH

Summary of Contents for Teknion complements YTH

  • Page 1 complements Installation Guides Date: Feb 2022 Page: 1 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 Rev. 3 Navigate Freestanding Gable Leg Table (YTH) Note: YTH 2952 is Shown as Example...
  • Page 2 complements Installation Guides Date: Feb 2022 Page: 2 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 Part & Product Identification ITEM ITEM PREVIEW DESCRIPTION PART NO. PREVIEW DESCRIPTION PART NO. 8. Navigate Gable Table Hardware Kit - X05-0428 x1 SCRW 1/4-20X5/8 ZNC PN CROSS BEAM A16-7182-X QD MCHN (690150)
  • Page 3 complements Installation Guides Date: Feb 2022 Page: 3 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 Part & Product Identification ITEM NO. PREVIEW DESCRIPTION PART NO. 13. VERTICAL WIRE MANAGER 13.1 VERTICAL WIRE MANAGER ASSEMBLY N01-5110 13.2 CABLE MANAGER RETAINER CLIP A16-3890 13.3 CABLE TIE B02-0543...
  • Page 4 complements Installation Guides Date: Feb 2022 Page: 4 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 ATTACH GABLE LEGS SECURE GABLE LEGS STEP 1: Slide and Align the Gable Legs onto the Cross Beam as Shown. STEP 2: Install Screws as Shown above to Secure the Leg assembly.
  • Page 5 complements Installation Guides Date: Feb 2022 Page: 5 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 ATTACH POWER BAR (IF POWER BAR IS SPECIFIED) STEP 3a: Attach the Power Bar if it is specified...
  • Page 6 complements Installation Guides Date: Jan 2020 Page: 6 of 14 Section:HEIGHT-ADJUSTABLE TABLE COM_154 REMOVE OTHER SIDE PANEL AND ATTACH POWER BAR HOLE COVER (IF POWER BAR NOT SPECIFIED) STEP 3b: Attach the Power Bar Hole Cover as shown if Power Bar is not specified.
  • Page 7 complements Installation Guides Date: Feb 2022 Page: 7 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 INSTALL ELECTRIC WIRE (WITH POWER BAR) NOTE: Make sure that the dongle is connected to the Control Box STEP 4a: Connect all the Electric wires onto the Control Box as shown.
  • Page 8 complements Installation Guides Date: Jan 2020 Page: 8 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 INSTALL ELECTRIC WIRE (WITHOUT POWER BAR) REMOVE ACCESS DOOR NOTE: Make sure that the dongle is connected to the Control Box STEP 4b: Connect all the Electric wires onto the Control Box as shown. STEP 5a: Place the electric wires and components, Move the assembly to the Maximum Height and remove the Access Door from Gable Leg assembly by pushing as Shown.
  • Page 9 complements Installation Guides Date: Jan 2020 Page: 9 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 REMOVE SIDE PANEL INSTALL VERTICAL WIRE CARRIER 13.1 13.5 STEP 5b: Loosen the screws by rotating Counter-Clockwise and remove them. Slide and Pull STEP 5c: Insert cable through the Vertical Wire Carrier, lower the manager into the cover the Side Panel assembly as shown.

  • Page 10: Wire Management

    complements Installation Guides Date: Jan 2020 Page: 10 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 WIRE MANAGEMENT Vertical Wire Carrier Top Link Pilot Hole 13.2 13.4 NOTE: Power Cord Wire is hidden for Illustration Purpose. STEP 5d: Insert the Power Cord Wire through the Grommet Hole on the Cross Beam. Install Clip as shown and fasten with the screws provided.
  • Page 11 complements Installation Guides Date: Jan 2020 Page: 11 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 WIRE MANAGEMENT ATTACH ACCESS DOOR NOTE: Other Components are Hidden for Illustration Purpose. 13.5 STEP 5e: Pull the Power Cord Wire through the Vertical Wire Carrier Cover and the Cut- STEP 6: Tilt and insert the top portion of the Access Door.

  • Page 12: Install Worksurface

    complements Installation Guides Date: Jan 2020 Page: 12 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 INSTALL WORKSURFACE NOTE: Top Gable Assembly and Vertical Wire Manager are hidden for Illustration Purpose. Worksurface Mounting Hole STEP 7: Install Worksurface as Shown above. Secure Switch and Control Box Cover onto the Cross Beam.
  • Page 13 complements Installation Guides Date: Jan 2020 Page: 13 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 MOUNT SWITCH AND CONTROL BOX COVER STEP 8: Mount Switch to the worksurface and Attach Control Box Cover onto the Cross Beam as shown.
  • Page 14 complements Installation Guides Date: Jan 2020 Page: 14 of 14 Section: HEIGHT-ADJUSTABLE TABLE COM_154 REINSTALL SIDE PANEL Slot STEP 9: Place the Side Panel of the Gable onto the provided slot and Secure it by fastening the Screws Clockwise.
