Teknion complements LIVELLO Installation Manuals

Height adjustable tables

Advertisement

Quick Links

complements
Section:
HEIGHT ADJUSTABLE TABLES (LIVELLO)
Description:
ADJUSTABLE WORKSTATION TABLE - ELECTRIC STANDARD, EXTENDED & CERDENZA RANGE
Standard/Extended Range Electric Table (LVWR & LVCC)
& Freestanding/Intergrated (LVFD, LVHU & LVHT)
B1
Installation Guides
NOTE: Workstation
for Display Switch
shown as example.
NOTE: If
E-Chain is
specified, please
refer to
Installation
Guide
COM_102a for
A
instructions.
G1
D2
D1
D3
LVCC
D4

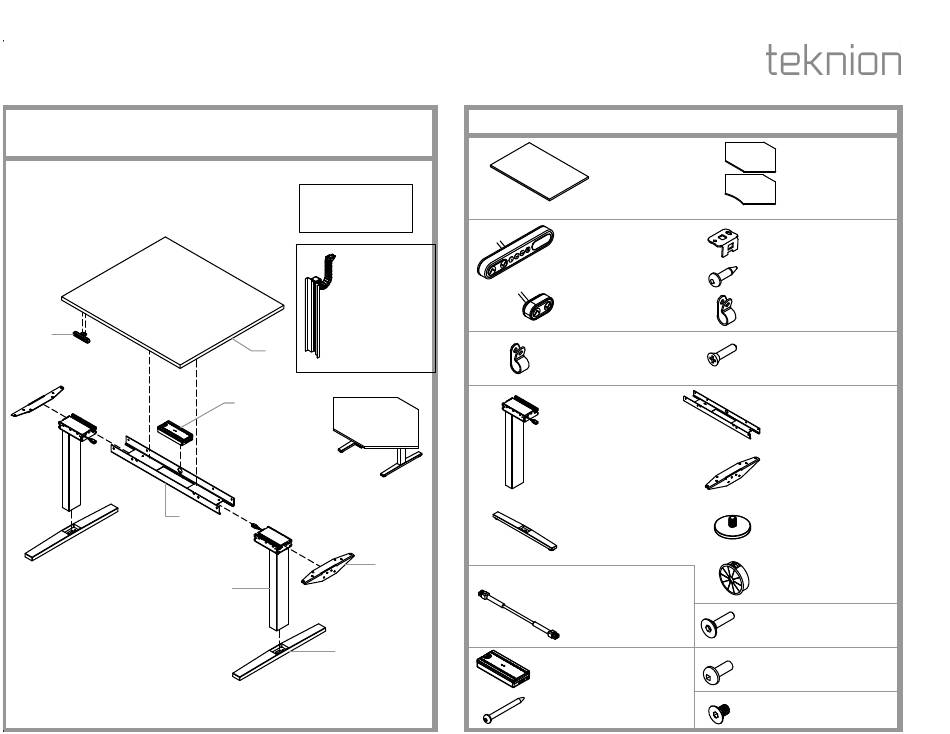

Part and Product Identification
A1 - Workstation Table for
Display Switch
(As per order) x1
B1 - Display Switch
(N09-5600) x1
OR
Up/Down Switch
(N09-5796) x1
C1 - Cable Clamp
3/8 Nylon Blk
(B02-0558) x2
D1 - STD Range Leg
(N09-5577) x2
OR
EXT Range Leg
(N09-5713) x2
D3 - Foot Assembly
(A25-0493) x2
E - 1000mm Motor Cable
(N09-5597) x2
OR
15" Long Motor Cable
(I04-0099) x02
G1 - Control Box
(N09-5912) x1
G2 - #10 Pan Screw
2" length (E01-1009) x2
Date:
Aug 2017
Page No:
1 of 6
COM_113
Rev. No: 4
LVCC
Straight and Curved
Worksurface for Height
Adjustable Corner
Tables (C05-9756) x1
B2 - Bracket
(A16-3970)x1
B3 - #8 5/8" Screw
(E04-0091) x2
B4 - 3/16" Wire Clamp
(B02-0598) x4
C2 - 6 x 5/8 typ flat Screw
(E04-0090) x6
D2 - Channel
(A16-3943) x1
D4 - Strut
(A16-3957) x1
D5 - Leveller
(D06-4088) x4
D6 - Grommet
(P-2184) x1
F - M10 x 1.5-25 Flat Head
Socket Screw (E01-0990) x4
H - 1/4-20 x 5/8 Pan Quad
Machine Screw (E01-0992) x12
I - M5X0.8-10 Flat Head
Cap Screw (E01-0989)x20

Advertisement

loading
Need help?

Need help?

Do you have a question about the complements LIVELLO and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion complements LIVELLO

  • Page 1 complements Installation Guides Section: HEIGHT ADJUSTABLE TABLES (LIVELLO) Date: Aug 2017 Page No: 1 of 6 Description: ADJUSTABLE WORKSTATION TABLE - ELECTRIC STANDARD, EXTENDED & CERDENZA RANGE COM_113 Rev. No: 4 Standard/Extended Range Electric Table (LVWR & LVCC) Part and Product Identification &...
  • Page 2 complements Installation Guides Section: HEIGHT ADJUSTABLE TABLES (LIVELLO) Date: Aug 2017 Page No: 2 of 6 Description: ADJUSTABLE WORKSTATION TABLE - STANDARD & EXTENDED RANGE COM_113 INSTALL LEG TO CHANNEL STEP 1: Install Legs to Channel and Feet to Legs. Fasten with screws provided.
  • Page 3 complements Installation Guides Section: HEIGHT ADJUSTABLE TABLES (LIVELLO) Date: Aug 2017 Page No: 3 of 6 Description: ADJUSTABLE WORKSTATION TABLE - STANDARD & EXTENDED RANGE COM_113 INSTALL STRUTS TO LEGS STEP 2: Attach Folded Struts to Legs.
  • Page 4 complements Installation Guides Section: HEIGHT ADJUSTABLE TABLES (LIVELLO) Date: Aug 2017 Page No: 4 of 6 Description: ADJUSTABLE WORKSTATION TABLE - STANDARD & EXTENDED RANGE COM_113 PLACE CONTROL BOXES INSIDE OF CHANNEL NOTE: Do not force Motor Cable in to the Control Box and Leg Connection.
  • Page 5 complements Installation Guides Section: HEIGHT ADJUSTABLE TABLES (LIVELLO) Date: Aug 2017 Page No: 5 of 6 Description: ADJUSTABLE WORKSTATION TABLE - STANDARD & EXTENDED RANGE COM_113 INSTALL WORKSURFACES AND SWITCHES STEP 4: Install Switch with screws provided Align pilot holes from Worksurface to holes from Top Frame Strut.
  • Page 6: Wire Management

    complements Installation Guides Section: HEIGHT ADJUSTABLE TABLES (LIVELLO) Date: Aug 2017 Page No: 6 of 6 Description: ADJUSTABLE WORKSTATION TABLE - STANDARD & EXTENDED RANGE COM_113 WIRE MANAGEMENT NOTE: Place Wire Management as shown as diagram C1 - Cable Clamp B4 - 3/16"...
