complements
Section:
INFINTIY SCREENS

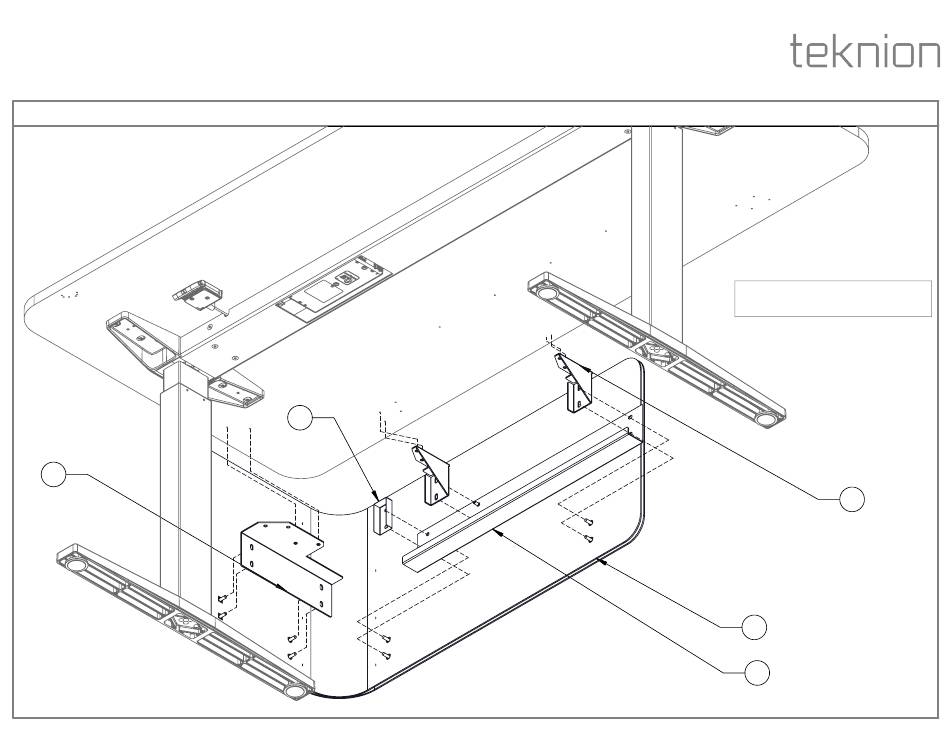

INFINITY CURVED DESK EDGE SCREEN (GXCH), INFINITY SCREEN ALIGNMENT CLIP (GXCC)
2.1
Installation Guides
2.4
Date: Sept 2018
Page: 1 of 7
COM_554
Rev. 0
NOTE: Configuration GXCH422035L
is used as an example.
2.3
1
2.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the complements and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknion complements

Summary of Contents for Teknion complements

  • Page 1 Installation Guides Date: Sept 2018 Page: 1 of 7 Section: INFINTIY SCREENS COM_554 Rev. 0 INFINITY CURVED DESK EDGE SCREEN (GXCH), INFINITY SCREEN ALIGNMENT CLIP (GXCC) NOTE: Configuration GXCH422035L is used as an example.
  • Page 2 Installation Guides Date: Sept 2018 Page: 2 of 7 Section: INFINTIY SCREENS COM_554 Part & Product Identification (GXCH) ITEM PART ITEM PART PREVIEW DESCRIPTION QTY. PREVIEW DESCRIPTION NUMBER NUMBER 2. INFINTY CURVED DESK EDGE SCREEN WIRE BRACKET KIT INFINITY...
  • Page 3 Installation Guides Date: Sept 2018 Page: 3 of 7 Section: INFINTIY SCREENS COM_554 Part & Product Identification (GXCC) ITEM NO. PREVIEW DESCRIPTION PART NUMBER QTY. INFINITY A25-0641 ALIGNMENT CLIP 8-32 X 3/4 SOC SET SCREW CUP E03-0923 POINT BARE...

  • Page 4: Install Bracket

    Installation Guides Date: Sept 2018 Page: 4 of 7 Section: INFINTIY SCREENS COM_554 INSTALL BRACKET SECURE BRACKET NOTE: When installing the Brackets to the screens, the Torque applied to the Fasteners should be controlled between 14 to 18 Lb.In.
  • Page 5 Installation Guides Date: Sept 2018 Page: 5 of 7 Section: INFINTIY SCREENS COM_554 MOUNT SCREEN ASSEMBLY PILOT HOLES NOTE: For illustration Purpose the Lefthand Side Leg Support is Hidden. STEP 3: Align and Mount the Whole Assembly onto the designated Pilot Holes on the Worksurface using the Wood Screws as indicated. Ensure the Brackets are Parallel to the Worsurface.
  • Page 6 Installation Guides Date: Sept 2018 Page: 6 of 7 Section: INFINTIY SCREENS COM_554 INSTALL PLASTIC SPACER (OPTIONAL) INSTALL PLASTIC SPACER (OPTIONAL) TILTING INWARDS TILTING OUTWARDS BACK WOOD SCREW FRONT WOOD SCREW STEP 4: If the Screen is Tilting Inwards Loosen the Back Wood Screw a little and place the...
  • Page 7 Installation Guides Date: Sept 2018 Page: 7 of 7 Section: INFINTIY SCREENS COM_554 ASSEMBLE AND MOUNT CLIP TIGHTEN CLIP STEP 1: Assemble the Set Screw to the Alignment Clip by rotating Clockwise. Tighten the STEP 2: Tighten the alignment clip onto the set screw by rotating it Clockwise.
