complements
Section:
HEIGHT ADJUSTABLE TABLES
Description:
HA TABLES - QUICK CONNECT
Rectangular Wksf. W\ Radius Corners for Routes Quick Connect (WQX)
hiSpace Quick Connect HA Base Only Round Legs (YQX)
A2
B5
B1
B2
Installation Guides
B4
A1
A3
NOTE: YQX930726 and
WQX930726NN are used
as for Illustration.
Date:
May 2021
COM_138

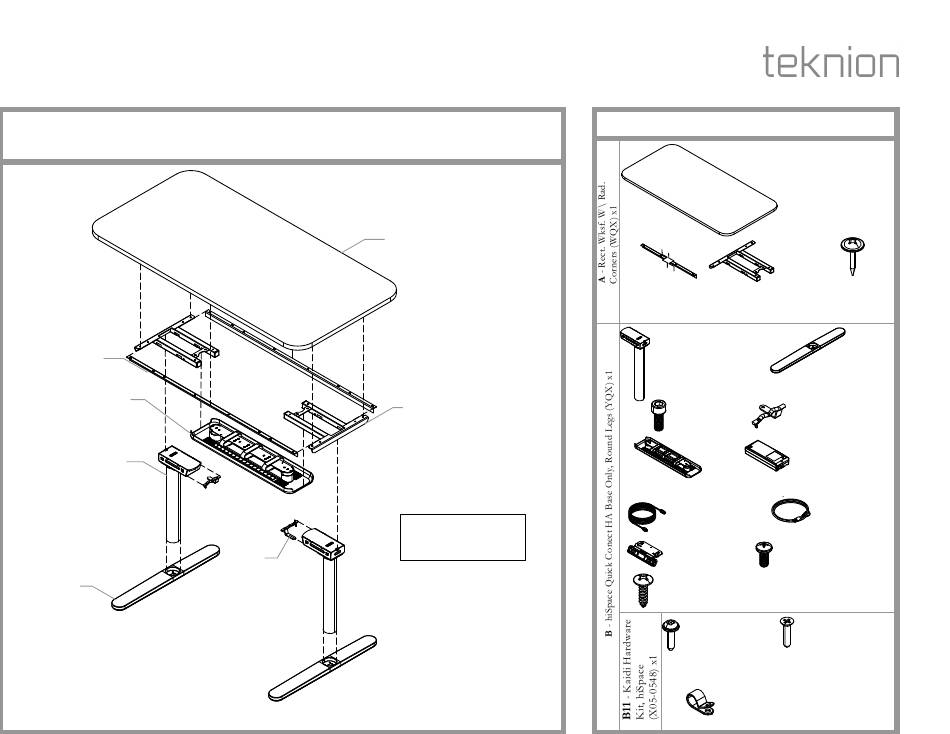

Part and Product Identification
A1 - Rect. Wksf. W\ Rad.
Corners for Routes Quick
Connect (C07-7831-X) x1
A3 - Leg Mount
A2 - Reinforcement
Bracket Qi- hiSpace
Bar-hiSpace
(N09-9873) x2
(A16-9104) x2
B1 - Kaidi Qi BIFMA
B2 - Routes Foot
Round Leg (N01-4881) x2
Casting (A25-0770) x2
B3 - M6x1x20mm
B4 - Cam Handle w/
-SHCS
Cotter Pin.
(E01-1253) x8
(N09-9814) x2
B6 - Control Box w\
Anti Collision Dongle
(D06-4725) x1
B5 - Cable Organizer w/
Felt Cover (N09-8069S) x1
B7 - Right Angle
Connector 1m Lg.
(D06-4277) x2
B10 - M5x0.8, 12mm
B9 - Keypad,
Philips Head Screw
hiSpace Table
(E01-1106) x2
(D06-4726) x1
B11 - M5x20mm Philips (E07-0203) x4
B11a - #8 x 5/8" Pan
Quad WD Screw.
(E04-0091) x2
B11c - Cable Clamp, BLK
(B02-0558) x2
Page No:
1 of 11
Rev. No: 0
A4 - #10x0.875"
Screw
(E07-0077) x28
B8 - 3m Power
Cord
(D06-4136) x1
B11b - #6 x 5/8"
Flat Quad Screw.
(E04-0090) x2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teknion Complements
Summary of Contents for Teknion Complements
- Page 1 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 1 of 11 Description: HA TABLES - QUICK CONNECT COM_138 Rev. No: 0 Part and Product Identification Rectangular Wksf. W\ Radius Corners for Routes Quick Connect (WQX) hiSpace Quick Connect HA Base Only Round Legs (YQX) A1 - Rect.
- Page 2 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 2 of 11 Description: HA TABLES - QUICK CONNECT COM_138 ATTACH LEG MOUNT BRACKET ATTACH REINFORCEMENT BAR STEP 1: Attach Leg Mounts to Worksurface as shown above. STEP 2: Attach the Reinforcement Bars to the Worksurface.
- Page 3 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 3 of 11 Description: HA TABLES - QUICK CONNECT COM_138 ATTACH LEGS TO WORKSUFACE SECURE LEGS TO WORKSUFACE STEP 3: Attach legs to Worksurface as shown above. STEP 4: Push Legs to Outer side of the Worksurface.
- Page 4 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 4 of 11 Description: HA TABLES - QUICK CONNECT COM_138 SECURE LEGS TO BRACKET - 1 SECURE LEGS TO BRACKET - 1 Cotter STEP 5: Install Cam Handle as shown above nad Make sure its Locked in.
- Page 5 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 5 of 11 Description: HA TABLES - QUICK CONNECT COM_138 ATTACH FEET TO LEGS STEP 7: Attach Feet to legs as shown above with screws provided.
- Page 6 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 6 of 11 Description: HA TABLES - QUICK CONNECT COM_138 REMOVE FELT COVER - 1 REMOVE FELT COVER - 2 STEP 8: Unscrew lock as shown above. STEP 9: Remove Felt Cover as shown above.
- Page 7 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 7 of 11 Description: HA TABLES - QUICK CONNECT COM_138 ATTACH CABLE MANAGER ATTACH CONNECTOR TO CONTROL BOX NOTE: Use of Magnetic Bit to Fasten C3 is recommended.
- Page 8 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 8 of 11 Description: HA TABLES - QUICK CONNECT COM_138 ATTACH SWITCH AND WIRE MANAGEMENT B11a Anti-Collision Dongle NOTE: Make Sure the Anti- Collision Dongle is attached to the Control Box.
- Page 9 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 9 of 11 Description: HA TABLES - QUICK CONNECT COM_138 PLACE FELT COVER FASTEN FELT COVER STEP 14: Place back the Felt Cover. STEP 15: Fasten Felt Cover. Turn the Screw Lock Clockwise to lock.
- Page 10 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 10 of 11 Description: HA TABLES - QUICK CONNECT COM_138 ATTACH CABLE CLAMPS B11b B11c B11c STEP 16: Place cable Clamps as shown above.
- Page 11 Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: May 2021 Page No: 11 of 11 Description: HA TABLES - QUICK CONNECT COM_138 SET UP SWITCH NOTE: For More information on Setting up hiSpace Table Keypad Switch . Please refer too COM_001.
