Different colors represent different areas. Each area can set different detection zones. Detection zone
cam be irregular and discontinuous. If device monitoring zone is large, user can sub-divide the area into
several zones for better motion detect.
Please refer to the following sheet for detailed information.
Parameter
Name
Sensitivity
Area threshold
Waveform
Delete all
Delete

5.3.2 Alarm

Please note some series products do not support this function.
5.3.2.1 PIR alarm

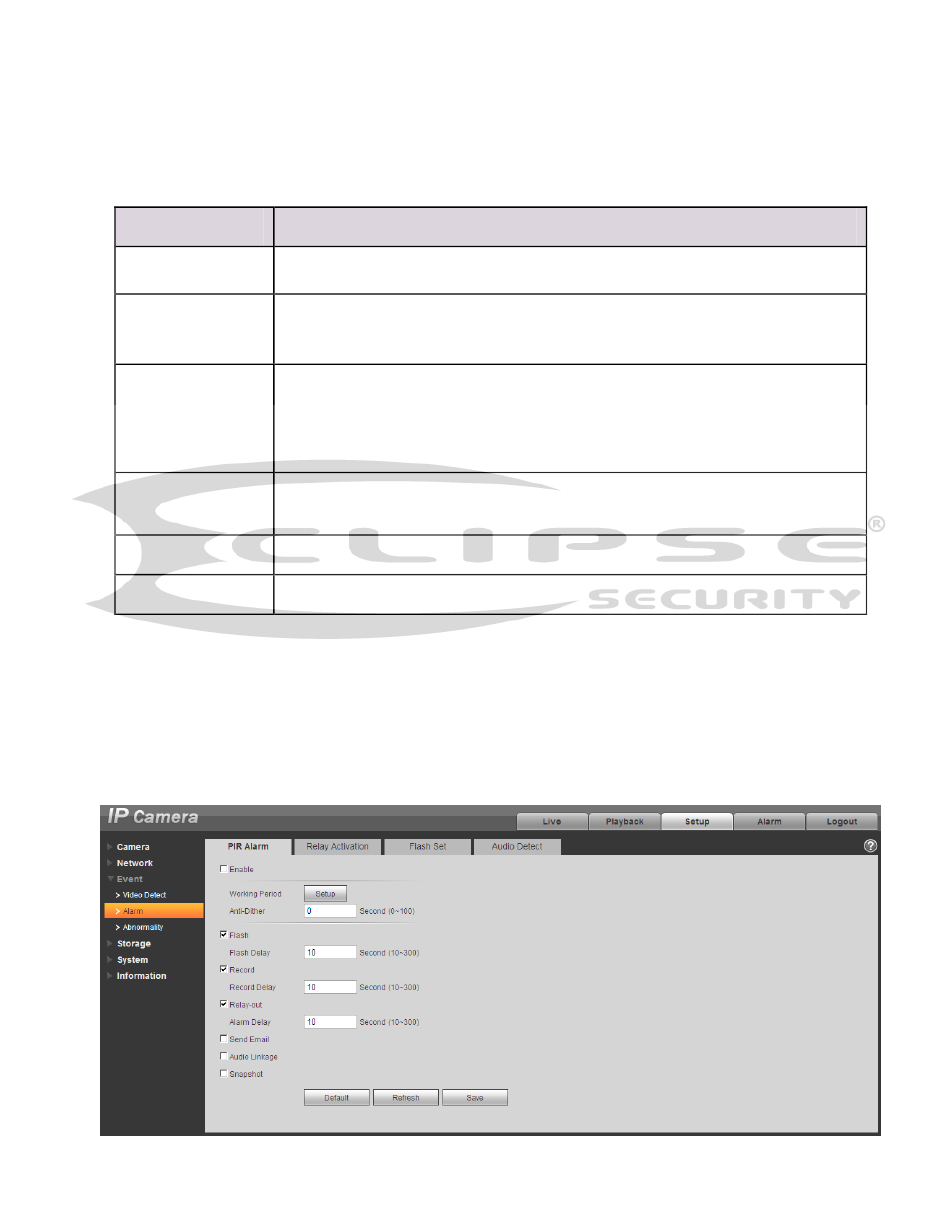

The alarm activation interface PIR alarm is shown as in
Function
Default area name includes Region0, Region1, Region2,
Region3 and custom.
It is sensitivity of brightness as motion detection is more possible
to be trigger with high sensitivity. You can set up to four areas.
The range is 0~100. The recommenced value is 30~70.
It is to check target object area related to detection area. The
lower the area threshold, the easier to trigger motion detection.
You can set up to four areas. The range is 0~100. The
recommenced value is 0~10.
Red means motion detect is triggered. Green means motion
detect is not triggered.
Clear all areas.
Delete selected area.
figure 5- 41.
