Scan; Preset - Eclipse Security ECL-IP3D50MV Manual

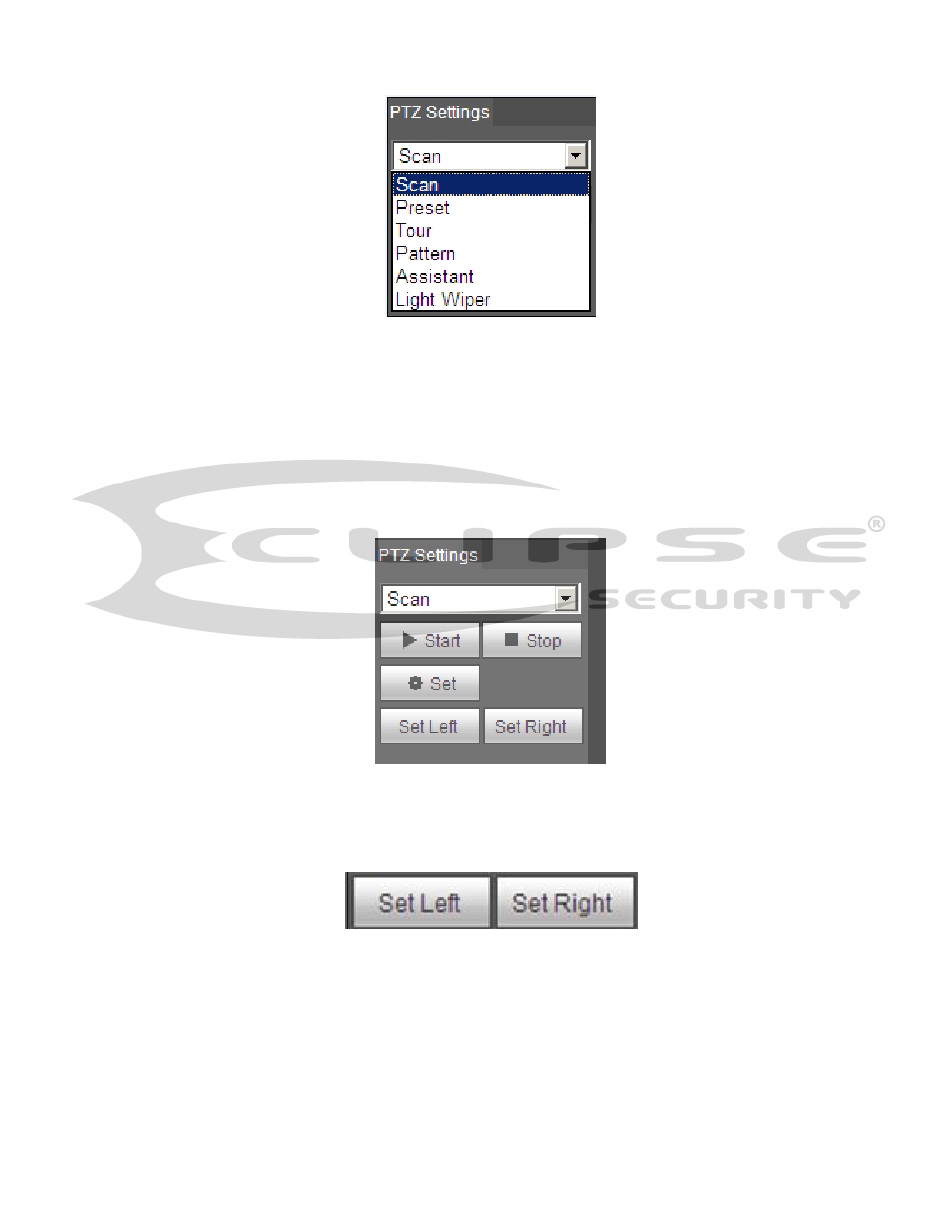

PTZ setting interface is shown as in
Here you can set scan, preset, tour, pattern, assistant function and light and wiper plus view coordinate.

3.1 Scan

Scan interface is shown in
Steps to scan are:
Step 1. Click on Set button, display
Step 2. Move via direction key to select left, click on Set Left to set left border of camera
Step 3. Move via direction key to select right, click on Set Right to set right border of camera.
Step 4. Complete scan path setup.

3.2 Preset

Preset interface is shown in
Figure 3- 2
Figure 3- 2
Figure 3- 3
.
Figure 3- 3
Figure 3- 4
.
.
icon.
14
