System; General - Eclipse Security ECL-IP3D50MV Manual

Pre-record
Disk Full
Record
mode
Record
stream

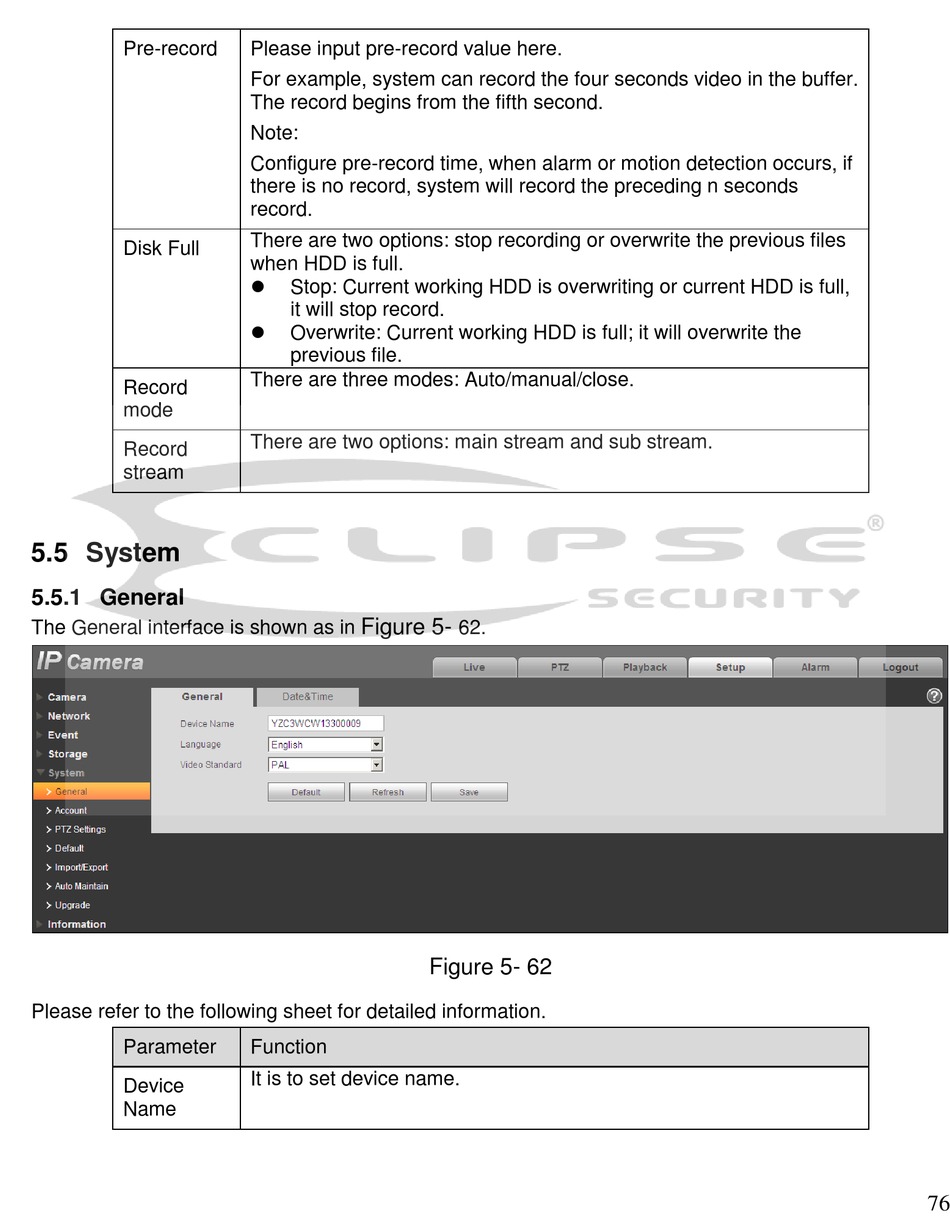

5.5 System

5.5.1 General

The General interface is shown as in
Please refer to the following sheet for detailed information.
Parameter
Device
Name
Please input pre-record value here.
For example, system can record the four seconds video in the buffer.
The record begins from the fifth second.
Note:
Configure pre-record time, when alarm or motion detection occurs, if
there is no record, system will record the preceding n seconds
record.
There are two options: stop recording or overwrite the previous files
when HDD is full.

Stop: Current working HDD is overwriting or current HDD is full,
it will stop record.

Overwrite: Current working HDD is full; it will overwrite the
previous file.
There are three modes: Auto/manual/close.
There are two options: main stream and sub stream.
Figure 5-
Figure 5- 62
Function
It is to set device name.
62.
76
